Description
The NVE AKL001-12E analog gear tooth sensors are versatile, wide airgap typically used with ferromagnetic gears and bias magnets. The sensor elements are spaced at 1mm for use with a recommended gear pitch of between 2.5mm and 6mm with an operating frequency up to 10kHz. The AKL-series sensors from NVE combine a sensor bridge with integrated signal processing to provide a 50% duty cycle digital output. Integrated signal processing includes gain and offset normalization. AKL-Series sensors are configured as two wire devices, where the supply current indicates passing teeth.
-
GMR analog gear tooth sensor
-
Airgap of 1mm to 3.5mm
-
Large analog peak-to-peak output
-
Single bridge with 1mm element spacing
-
Gear pitch between 2.5mm and 6mm
-
Operating frequency range from DC to 10kHz
-
Temperature range from -40°C to +150°C
-
Supply voltage range from +4.5V to 36V
-
Digital output duty cycle of 50%
-
TDFN8 Package type
The NVE AKL001-12E GMR analog gear tooth sensor covers the following applications:
-
Motion, speed, and position sensing
-
Linear and rotational encoders
-
Closed-loop servo systems
-
Automotive sensors

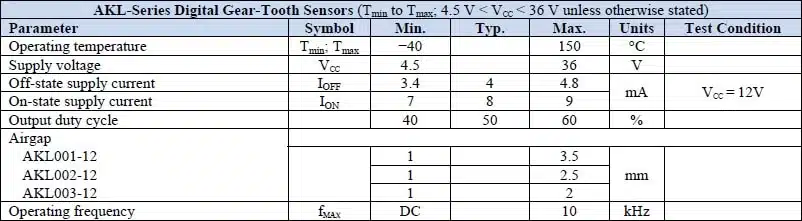

The below table gives the full specifications of the NVE AKL series including the AKL001-12E
NVE ABL and AKL Series Technical Library
We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
| VIDEOS |
|
|
Analog Gear Tooth Sensor Reference Circuit
ABL series analog gear-tooth sensors detect gear speed and direction. NVE show a simple reference circuit and demonstrate the sensor and circuitry in a stepper motor servo system. |
|
|
AKL Series Gear Tooth Sensor Demonstration
A live demonstration of NVE's unique AKL-Series digital gear-tooth sensor. |
|
|
Gear Tooth Sensor Live Demonstration
NVE's Jay Brown demonstrates the extraordinary wide air-gap range of their unique GMR gear tooth sensors. The demonstration includes single- and dual-bridge analog versions, plus digital versions. |
