NVE BD027-14E

  • NVE

Product Features

  • GMR nanopower medical magnetic sensor
  • Typical power consumption of 45nW at 0.9V
  • Excellent sensitivity to applied magnetic fields
  • Solid state reliability
  • Precise detection of low magnetic fields
  • Inspected and qualified for implantable medical devices
  • Ultraminiature ULLGA Package

Applications

  • Medical
  • Compliant

Description

The NVE BD027-14E low voltage nanopower digital switch for medical devices are GMR specifically designed to run at low voltages from 0.9V with a quiescent current at 0.032μA. The BD027 sensors from NVE are manufactured with NVE’s patented spintronic GMR technology and offers a typical power consumption of 45nW at 0.9V. Inspected, tested, and qualified for implantable medical devices, they exhibit extremely stable and precise detection of low magnetic fields.

  • Low voltage nanopower digital switch
  • Magnetic operate point of 15Oe (typ.)
  • Magnetic release point of 4.5Oe
  • Operating voltage of 1.25VDD (typ.)
  • Quiescent current of 0.32μA (typ.) at 0.9V
  • Typical power consumption 45nW at 0.9V
  • Solid state reliability
  • Typical frequency response of 40Hz at 0.9V
  • Precise detection of low magnetic fields
  • Operating Temperature range from -40°C to +85°C
  • Ultraminiature ULLGA Package

The NVE BD027-14E medical magnetic sensor covers the following applications:

  • Pacemakers
  • ICDs
  • Insulin pumps
  • Neurostimulators

The below table gives the full specifications of the NVE BD027-14E

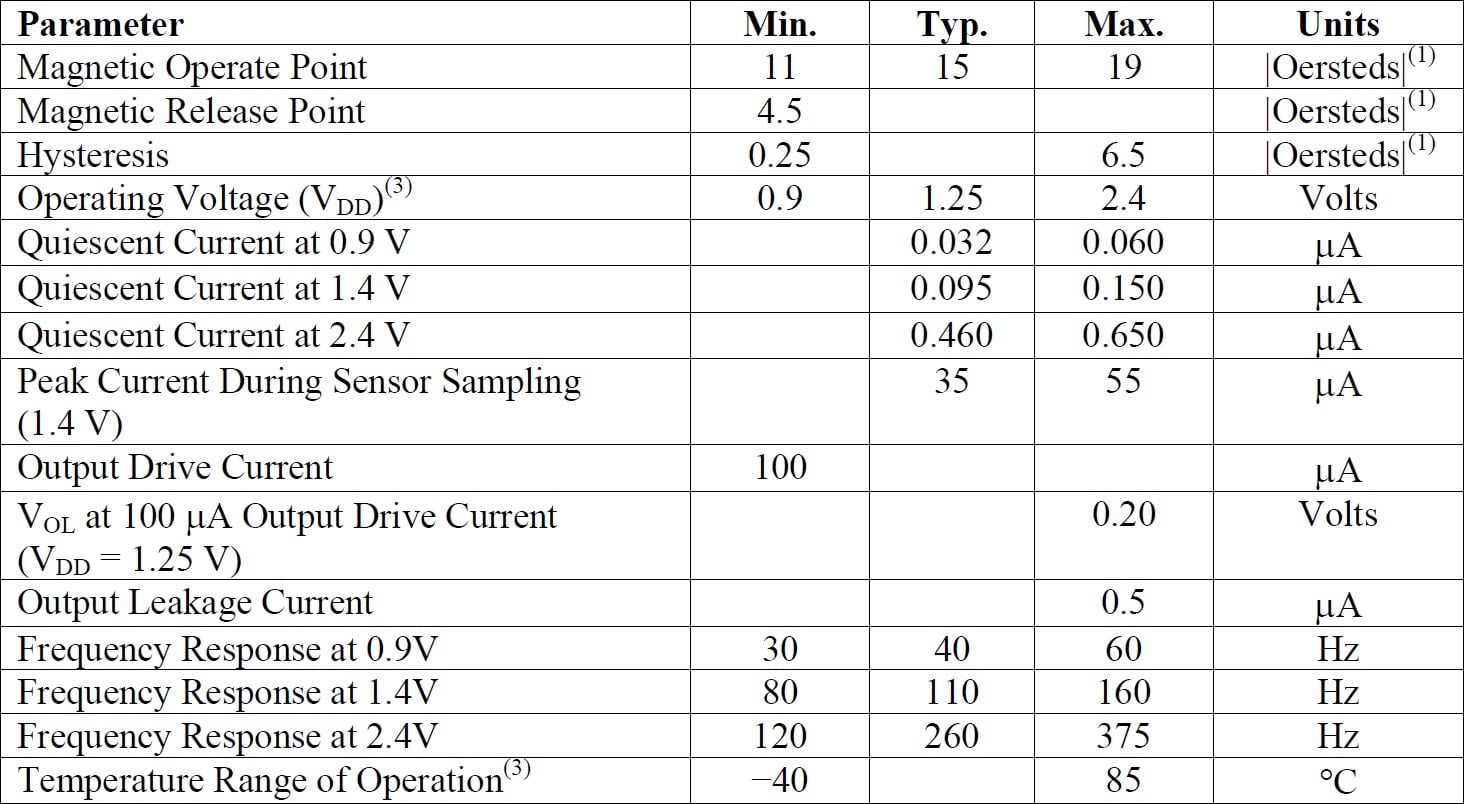

NVE BD027-14E Specifications

1. 1Oe (Oersted) = 1 Gauss in air = 0.1 mT.

2. Large Magnetic Fields WILL NOT damage NVE GMR Sensors.

3. Valid from −20°C to −40°C at supply voltages less than 1V may not meet specifications.


Specifications

Weight 0.00050 kg
Dimensions 0.45 x 1.10 x 1.10mm
Series / Model

Hysteresis

,

Temperature Range (°C)

Frequency Response

, , , , ,

Supply Voltage

NVE BD027 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
NVE BD027-14E low voltage nanopower medical digital switch series datasheet
Current measurement using GMR sensors application note
2-wire sensor interfaces application note
Further application notes for GMR sensors
Package, tape-and-reel and pad layout specifications
NVE RoHS and enviromental compliance certificate
Case Studies
Analysis of a GMR-based Plethysmograph transducer and its utility for real-time Blood pressure measurement
Dual-stage nanopositioning for high speed scanning probe microscopy
Extending the GMR current measurement range with a counteracting magnetic field
A current sensor based on the GMR effect for design and potential smart grid applications
Flexible GMR sensor array for magnetic flux leakage testing of steel track ropes
Wireless wearable controller for upper limb neuroprosthesis
Using GMR sensors with MSP430 scan interface
Safety device uses GMR sensor
Nondestructive inspection for diffusion bonded components
GMR sensors manage batteries
