Gauge series

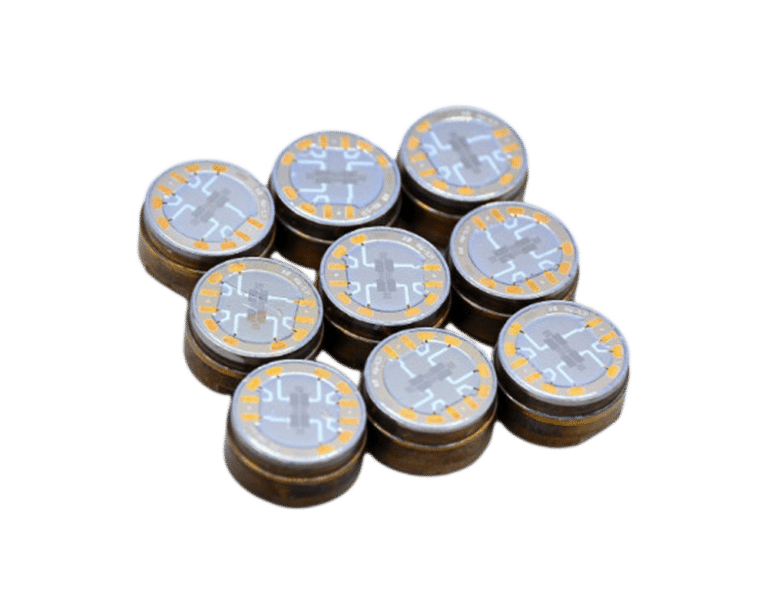

ICS-NH C10 Type

High precision thin film pressure sensor with 10 mm cup diameter, 1.6 bar to 2,500 bar ranges and stainless steel full-bridge construction.

Datasheet

ICS-NH C10PXXXXSXVXJX

ICS-NH C8 Type

High precision thin film pressure sensor with 8mm cup diameter and 25 to 800 bar pressure ranges. Features raw mV/V output, 2mV/V nominal span and temperature variants up to -65°C to +260°C.

Datasheet

ICS-NH C8

Merit Sensor MSS100 Series

Fully compensated pressure transducer.
Compact and lightweight design.
Easy electrical connection via Molex connector.
Designed for medical, pharmaceutical, and bio-processing applications.
Pressure range 5 to 100 psi (compound, vacuum, absolute, or gauge).
Operating temperature 10°C to 50°C.

Datasheet

MSS-XXXXX-XXX

Merit Sensor RSH Series

Uncompensated pressure sensor with MEMS-die-on-pressure-port design.
Compatible with wet and harsh media.
Suitable for broad temperature and pressure ranges.
Pressure range 0 to 500 psi (absolute or gauge).
Operating temperature range -40°C to 150°C

Datasheet

RSHXX-XXXX-XX

Merit Sensor TRVF Series

Fully compensated pressure sensor.
Wetted materials including silicon, glass, and ceramic enhances compatibility with harsh media.
Compact and lightweight, weighing approximately 1.35 grams.
Designed to measure pressure in air, gases, and liquids.
Pressure Range available from 1 to 300 psi (absolute or gauge).
Operating temperature range between -40°C to 150°C.

Datasheet

TRVF-XXXXX-XXXX

Core Sensors CS10 Series

Industrial pressure transducer
Pressure ranges from vacuum up to 45,000 PSI
Accuracy down to ≤ ±0.25% BFSL
Stability (1 year) of ≤ ±0.25% of FS
Overpressure of 2x minimum
Temperature range from -40°C to +85°C
Media Temperature from -40°C to +120°C

Datasheet

Core Sensors CS10

Core Sensors CS10T Series

Pressure and temperature measurement with independent outputs
Pressure ranges from 50 to 10,000 PSI
Multiple temperature ranges available
Accuracy down to ≤ ±0.25% BFSL
Stability (1 year) of ≤ ±0.25% of FS
Overpressure of 2x minimum

Datasheet

Core Sensors CS10-1

Core Sensors CS11 Series

Compact media isolated pressure sensor
Pressure ranges from 0-2 up to 2,000 PSI
Accuracy as low as ≤ ±0.25% BFSL
Stability of ≤ ±0.2% of FS (1 year)
Pressure cycles of 10 million
Overpressure of 2x minimum
Burst pressure of 5x or 4,000 PSI

Datasheet

Core Sensors CS11

Core Sensors CS12 Series

Submersible pressure transducer
Pressure ranges from 1 to 100 PSI
Accuracy down to ≤±0.25% BFSL
Stability (1 year) of ≤±0.25% of FS
Pressure cycles of 50 million
Overpressure of 2x minimum
Burst pressure of 5x or 500 PSI

Datasheet

Core Sensors CS12

Core Sensors CS15 Series

Non-Clogging submersible pressure transducer
Pressure ranges from 2 PSI to 50 PSI
Flush diaphragm prevents clogging
Hastelloy C276 diaphragm material
IP68 rated
Operating temperature of -40 to +85°C
Compensated temperatures from 0 to +55°C

Datasheet

Core Sensors CS15

Core Sensors CS50 Series

Non-incendive pressure transducer
Pressure ranges from 50 PSI to 30,000 PSI
Accuracy of ≤±0.25% BFSL at 25°C
Stability of ≤±0.25% of FS
Pressure cycles of 100 million
Overpressure of 2x minimum
Burst pressure of 5x or 60,000 PSI

Datasheet

Core Sensors CS50

Core Sensors CS51 Series

Non-incendive low pressure transducer
Pressure ranges from 1 PSI up to 49 PSI
Temperature range from −20°C up to +80°C *
Accuracy of ≤±0.25% BFSL at 25°C **
Stability of ≤±0.25% of FS (1 year)
Pressure cycles of 100 million
Overpressure of 2x minimum

Datasheet

Core Sensors CS51

Core Sensors CS80 Series

Intrinsically safe pressure transducer
Pressure ranges available from 50 PSI up to 30,000 PSI
Temperature range −40°C to +85°C
Accuracy of ≤ ±0.25% BFSL
Burst pressure of 5x or 60,000 PSI whichever is less
Stability (1 year) of ≤ ±0.25% of FS
Pressure cycles of 100 million

Datasheet

Core Sensors CS80

Core Sensors CS81 Series

Intrinsically safe low pressure transducer
Pressure ranges from 1 PSI to 49 PSI
Accuracy of ≤±0.25% BFSL
Stability of ≤±0.25% of FS (1 year)
Pressure cycles of 100 million
Overpressure of 2x minimum
Burst pressure of 5x or 245 PSI

Datasheet

Core Sensors CS81

Core Sensors CS82 Series

Intrinsically safe submersible pressure transducer
Pressure ranges from 1 PSI up to 50 PSI
Accuracy of ≤±0.25% BFSL
Stability of ≤±0.25% of FS (1 year)
Pressure cycles of 50 million
Overpressure of 2x minimum
Burst pressure of 5x or 250 PSI

Datasheet

Core Sensors CS82

Merit Sensor 7000 Series

High-volume, medium-pressure sensing elements
Pressure ranges available 15psi, 50psi, 100psi, 300psi & 500psi
Absolute or Gauge options available
Temperature range −40°C to +150°C
Full scale outputs from 60mV to 210mV (at 5V excitation)
Impedance of 5kΩ (typical) or 3.5kΩ±0.5kΩ (optional)
Suitable for clean, dry air and non-corrosive gases media

Datasheet

Merit Sensor 7000

ICS-NH C10 Type

High Precision Pressure Sensor

High precision thin film pressure sensor with 10 mm cup diameter, 1.6 bar to 2,500 bar ranges and stainless steel full-bridge construction.

Datasheet

ICS-NH C8 Type

High Precision Pressure Sensor

High precision thin film pressure sensor with 8mm cup diameter and 25 to 800 bar pressure ranges. Features raw mV/V output, 2mV/V nominal span and temperature variants up to -65°C to +260°C.

Datasheet

Merit Sensor MSS100 Series

Fully compensated pressure transducer

Fully compensated pressure transducer.
Compact and lightweight design.
Easy electrical connection via Molex connector.
Designed for medical, pharmaceutical, and bio-processing applications.
Pressure range 5 to 100 psi (compound, vacuum, absolute, or gauge).
Operating temperature 10°C to 50°C.

Datasheet

Merit Sensor RSH Series

Uncompensated Pressure Sensor

Uncompensated pressure sensor with MEMS-die-on-pressure-port design.
Compatible with wet and harsh media.
Suitable for broad temperature and pressure ranges.
Pressure range 0 to 500 psi (absolute or gauge).
Operating temperature range -40°C to 150°C

Datasheet

Merit Sensor TRVF Series

Fully Compensated Harsh Media Pressure Sensor

Fully compensated pressure sensor.
Wetted materials including silicon, glass, and ceramic enhances compatibility with harsh media.
Compact and lightweight, weighing approximately 1.35 grams.
Designed to measure pressure in air, gases, and liquids.
Pressure Range available from 1 to 300 psi (absolute or gauge).
Operating temperature range between -40°C to 150°C.
