Differenzdruck-Messumformer

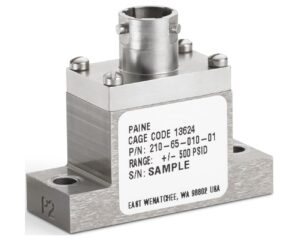

The Paine™ 210-60-090 differential pressure transducer series from Emerson offers measuring pressure ranges from ±500 PSID up to ±5000 PSID all in a small size. The 210-60-090 from Emerson is built with two separate sensing elements to measure the pressure at the input ports. This device has a very low thermal shift of ±0.01% of full scale per °C in the toughest environments and provides a differential output along with a uniquely small design. This transducer series is ideal for measuring differential pressure in many applications, such as actuator position feedback from servo valves to automotive and aviation testing environments.

• Differential pressure transducer
• Pressure ranges available from ±500 PSID up to ±5000 PSID
• Operating temperature −53°C to +121°C
• Compensated temperature −31°C to +121°C
• Small, lightweight manifold style mounting for easy installation
• Accuracy of P1=2mV/V ±10% and P2=P1 ±2% of P1
• Output of mV/V
• Operating media of any compatible with 300 series CRES, Buna-N-Rubber, 2024-T351 AL and PH CRES
• Very low thermal sensitivity shift of ±0.01% of F.S. per °C
• Temperature compensated design provides highly accurate pressure measurements
• Shock and vibration resistant design offers highly accurate and reliable pressure monitoring in many operating conditions
• Durable solution withstands harsh environments for long-lasting performance
• Custom electrical connection and pressure port adapters are available on request

Potential applications for the Paine™ 210-60-090 series include:

• Test stands and measurements
• Robotic hydraulic controls
• Industrial process systems
• Positioning systems
• Valve pressure control

Please see below the pressure table for the Paine™ 210-60-090 series, which includes details on standard products available as well as proof and burst pressure ratings:
