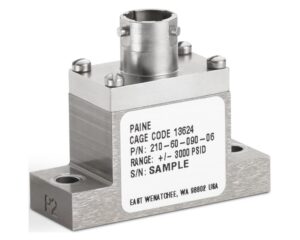

The Paine™ 210-60-090 differential pressure transducer series from Emerson offers measuring pressure ranges from ±500 PSID up to ±5000 PSID. This transducer comes with two separate sensing elements to measure differential pressure at the input ports. This device is shock and vibration resistant, produces highly accurate measurements in harsh and demanding conditions. The 210-65-010 differential pressure transducer from Emerson is engineered to provide differential measurements in fire-resistant Skydrol® aviation hydraulic fluid applications.

• Differential pressure transducer
• Pressure ranges available from ±500 PSID up to ±5000 PSID
• Operating temperature −17°C to +121°C
• Compensated temperature +10°C to +65°C
• Accuracy of P1 = 2.0mV/V (±10%) and P2 = P1 (±2% of P1)
• Output of mV/V
• Small, lightweight manifold style mounting for easy installation
• Skydrol® aviation hydraulic fluid compatible
• Very low Thermal sensitivity shift of ±0.01% of F.S. per °C
• Shock and vibration resistant design offers highly accurate and reliable pressure monitoring in many operating conditions
• Compact design for an easy-to-use differential measurement solution
• Durable solution withstands harsh environments for long-lasting performance
• Custom electrical connection and pressure port adapters are available on request

Potential applications for the Paine™ 210-60-090 series include:

• Aviation and automotive test stands
• Aerospace and aviation transportation motion simulators
• Transportation steering control systems
• Military weapon positioning systems
• Actuators
• Positioning systems

Please see below the pressure table for the Paine™ 210-65-010 series, which includes details on standard products available as well as proof and burst pressure ratings:
