Emerson Paine™ 211-50-070 Series

Emerson Paine™ 211-50-070 Series
Emerson Paine™ 211-50-070 Series
Emerson Paine™ 211-50-070 Series
  • Paine

Product Features

  • High pressure and temperature transducer
  • Considered as an ideal solution for downhole, subsea and industrial design
  • Offered in a small ½ inch diameter form factor
  • External case pressure up to 20,000 PSI
  • Custom designs available on request
  • All-welded, sealed construction provides durability, resilience and stability in harsh and corrosive environments

Applications

  • Oil & Gas

Description

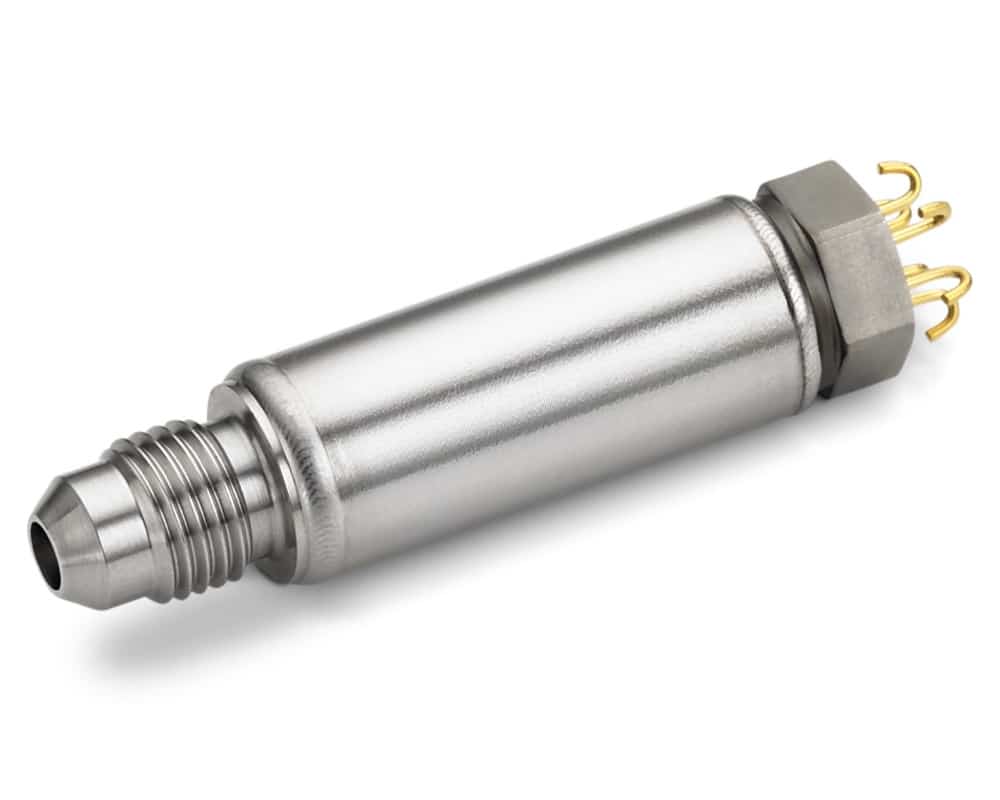

Emerson’s Paine™ 211-50-070 high pressure and temperature transducer series is a rugged high pressure/high temperature (HP/HT) combination transducer. This compact transducer from Emerson is engineered with all-welded construction to ensure accuracy, stability and repeatability in high shock and vibration environments. Emerson’s Paine™ 211-50-070 is designed for application temperatures that reach up to 260°C and with a pressure range of up to 30,000 PSIA, this transducer is an excellent solution for offshore, down-hole, power, and industrial applications

  • High pressure and temperature transducer
  • Pressure ranges available from 0 – 5,000 PSIA up to 0 – 30,000 PSIA
  • Temperature range +23°C to +260°C
  • Process media is compatible with alloy UNS N07718 solution annealed and aged to a minimum hardness of 40HRC and Inconel 718
  • External case pressure up to 20,000 PSI.
  • Accuracy of ±0.15% full scale
  • Output of mV/V
  • Full scale sensitivity of 2.6mV/V ±0.2%
  • Offered in a small ½ inch diameter form factor
  • All-welded, sealed construction provides durability, resilience and stability in harsh and corrosive environments
  • Customisation transducer options available for fit-for-use designs



Potential applications for the Paine™ 211-50-070 series include:

  • Oil and gas exploration and production
  • MWD,PWD and LWD tools
  • Wellhead and pump station monitoring
  • Geothermal and power generation
  • OEM and end-user applications


Please see the datasheet in the Technical Library tab for the Paine™ 211-50-070 series, which includes details on standard products available as well as proof and burst pressure ratings.



Specifications

Weight 0.00000 kg

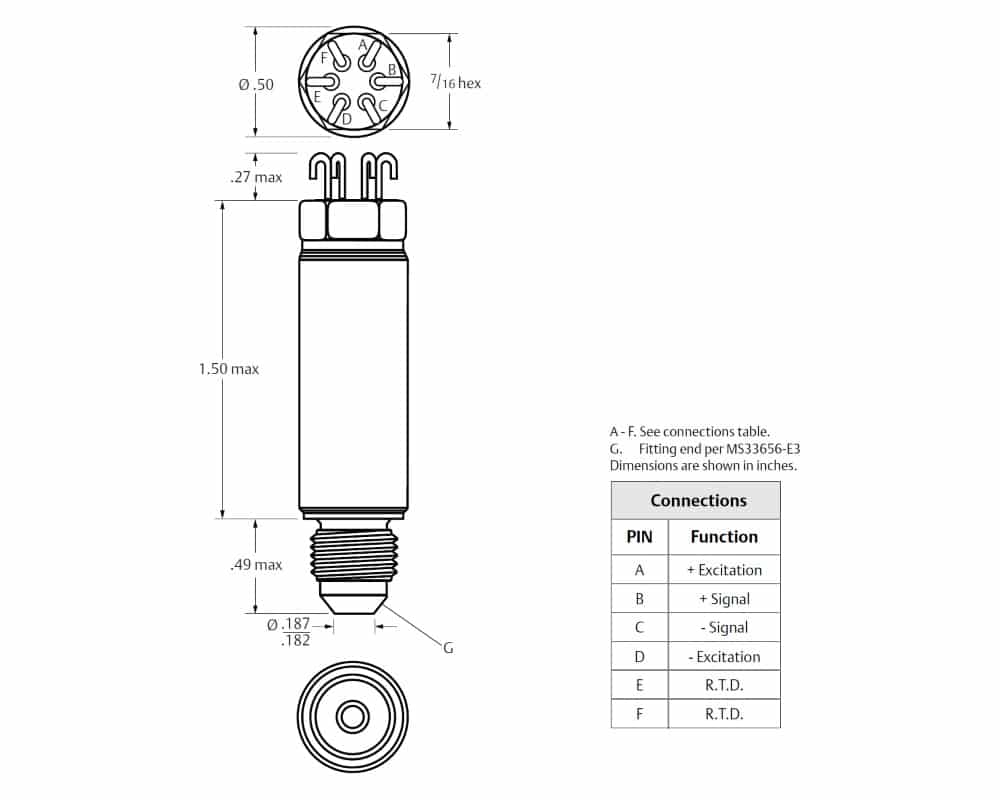

Dimensions 0.50 × 0.00 × 1.50 mm
Series / Model

Accuracy

Output

Temperature Range (°C)

Process Media

Pressure Range

, , , , , ,

Emerson Paine 211-50-070 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Emerson Paine™ 211-50-070 high pressure and temperature transducer series datasheet
