Emerson Paine™ 212-40-020 Series

  • Paine

Product Features

  • High pressure and temperature transducer
  • Compact and resilient design withstands harsh environments
  • Offered in a ½ inch diameter small form factor
  • Customisable transmitter options available for fit-for-use designs

Applications

  • Oil & Gas

Description

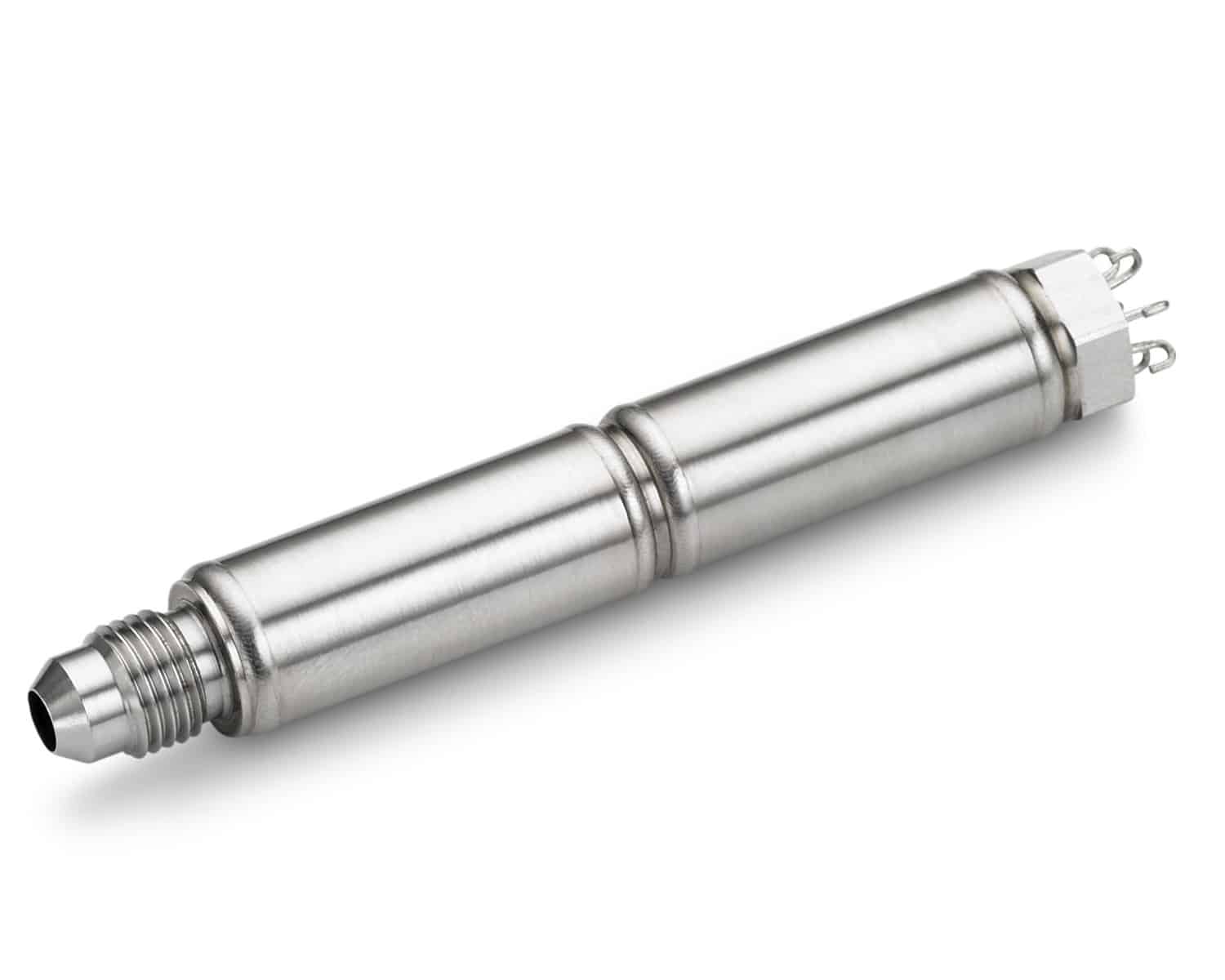

The Paine™ 212-40-020 high pressure and temperature transducer is a miniature VDC, high pressure / high temperature (HP/HT) combination transducer from Emerson and has been engineered specifically for extreme oil field applications. The Emerson Paine™ transducer offers pressure ranges up to 30,000 PSIA and temperatures of up to +210°C. The 212-40-020 series incorporates an innovative design with Silicon on Insulator (SOI) technology for precise and continuous high temperature measurement. As a compact transducer, this device provides accuracy and stability in a miniature, ½ inch diameter small form factor.

  • High pressure and temperature transducer
  • Pressure ranges available from 0 – 5,000 PSIA up to 0 – 30,000 PSIA
  • Temperature range −40°C to +210°C
  • Process media is any compatible with alloy UNS N07718 solution annealed and age hardened to Rockwell C 40 maximum Inconel® 718
  • Accuracy of 0.1% full scale
  • Output of VDC
  • Full scale (F.S.) sensitivity of 2.8mV/V nominal
  • Engineered with SOI technology for precise and continuous high temperature measurement
  • Offered in a small ½ inch diameter form factor
  • Compact and resilient design withstands harsh environments
  • Custom designs and pressure ranges available on request

The Emerson Paine™ 212-40-020 transducer series performs in high pressure and temperature ranges (up to 30000 PSIA or 2069 bar) for a durable solution.

Potential applications for the Paine™ 212-40-020 series include:

  • Downhole tools (MWD, LWD, Wireline and more)
  • Offshore energy exploration
  • Industrial control systems and automation
  • Artificial lift and sub sea risers
  • Engine sensing and controls

Please see below the pressure table for the Paine™ 212-40-020 series, which includes details on standard products available as well as proof and burst pressure ratings:

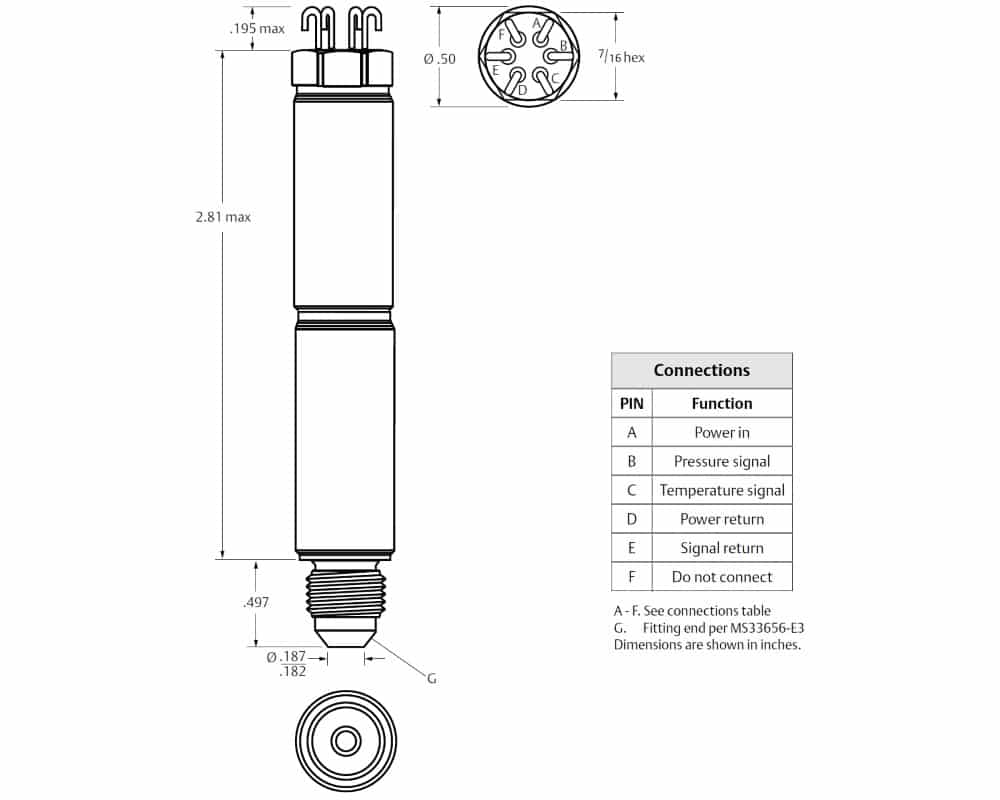

Paine 212-40-020 Specifications


Specifications

Weight 0.00000 kg
Dimensions 0.50 × 0.00 × 2.81 mm
Series / Model

Accuracy

Additional Features

High pressure and temperature transducerCompact and resilient design withstands harsh environmentsOffered in a ½ inch diameter small form factorCustomisable transmitter options available for fit-for

Output

Temperature Range (°C)

Process Media

Pressure Range

, , ,

Emerson Paine 212-40-020 Series Technical Library
