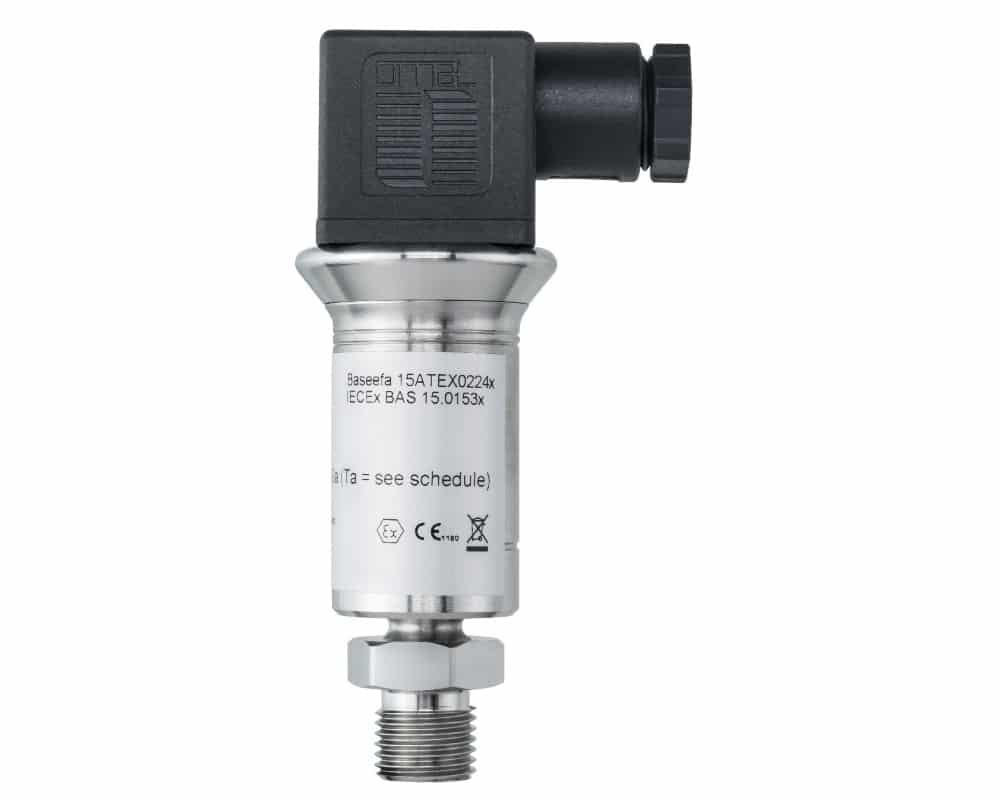

Cynergy3 IPSAT Intrinsically Safe Pressure Transducer Series

  • Cynergy3

Product Features

  • Industrial Pressure Transducer (BSP)
  • Piezo-resistive ceramic sensor
  • ATEX and IECEx approved for use in Zone 2 Hazardous Areas (Ex II 1G Ex ia IIC T4 Ga (Ta – see datasheet))
  • Excellent stability
  • Excellent stability
  • Excellent media compatibility
  • ATEX
  • UL

Applications

The IPSAT series of intrinsically safe industrial pressure transducers from Cynergy3 utilises piezo-resistive ceramic sensing technology to achieve excellent accuracy (<±0.25% of the full scale BFSL) and a microprocessor based amplifier for stability, making it an ideal device for industrial applications. The IPSAT pressure transducer is available with selection of pressure ratings (between -1 and 400 bar G) and 4-20mA output. Moreover, the sensor features stainless steel housing ensuring excellent media compatibility. Each device comes temperature compensated, calibrated and fully traceable. The IPSAT series of pressure transducers is fully ATEX and IECEx approved, making is suitable for applications in hazardous areas.

  • Intrinsically safe industrial pressure transducers
  • ATEX and IECEx approved for use in Zone 2 Hazardous Areas (Ex II 1G Ex ia IIC T4 Ga (Ta – see datasheet))
  • Piezo-resistive, thick-film, ceramic sensor
  • Stainless steel housing for excellent media compatibility
  • Accuracy <±0.25% of the full scale (BFSL)
  • Temperature range (ambient temperature) of -40°C to 80°C
  • Excellent operational life at over 100×106 cycles
  • Process connection via 1/4″ BSPP male (customisable)



The IPSAT series of intrinsically safe pressure transducers is available in several pressure range options, with further customisation available – speak to our technical sales team to discuss your requirement.

Typical applications for the Cynergy3 IPSAT pressure transducers series include:

  • Various industrial applications
  • Applications in Hazardous Areas



The below table gives the full specifications for each resistor model available including the Cynergy3 IPSAT series:

Cynergy3 IPS series specifications



Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 150.00000 kg

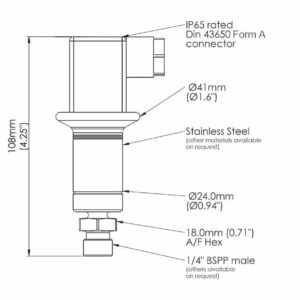

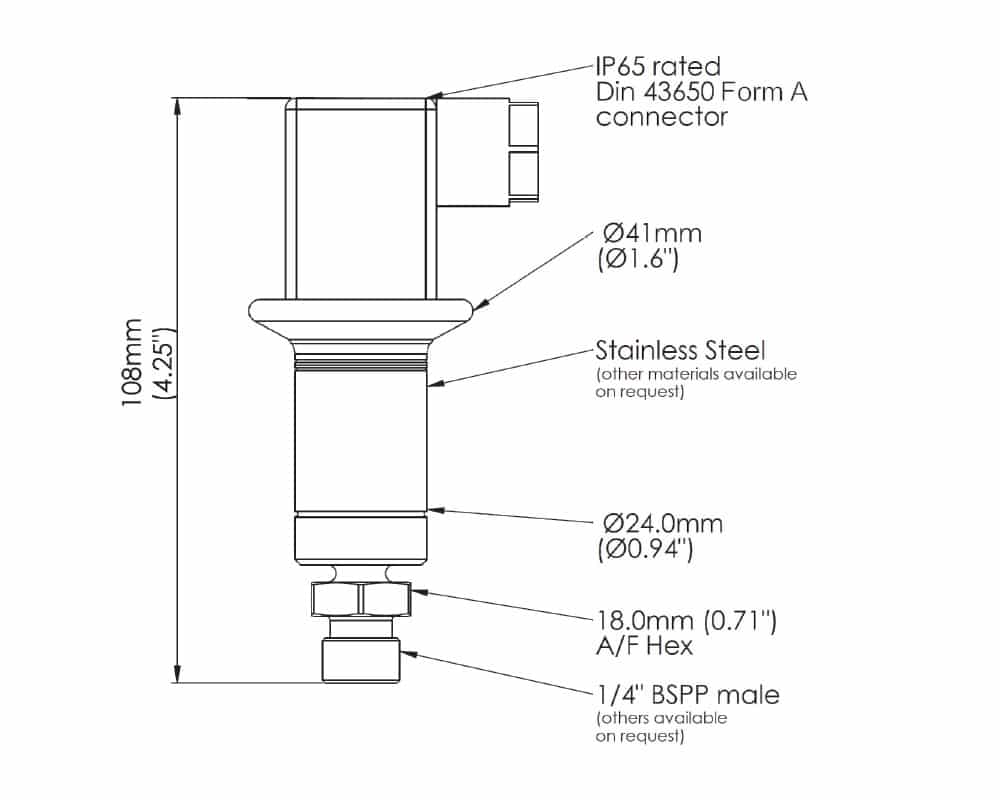

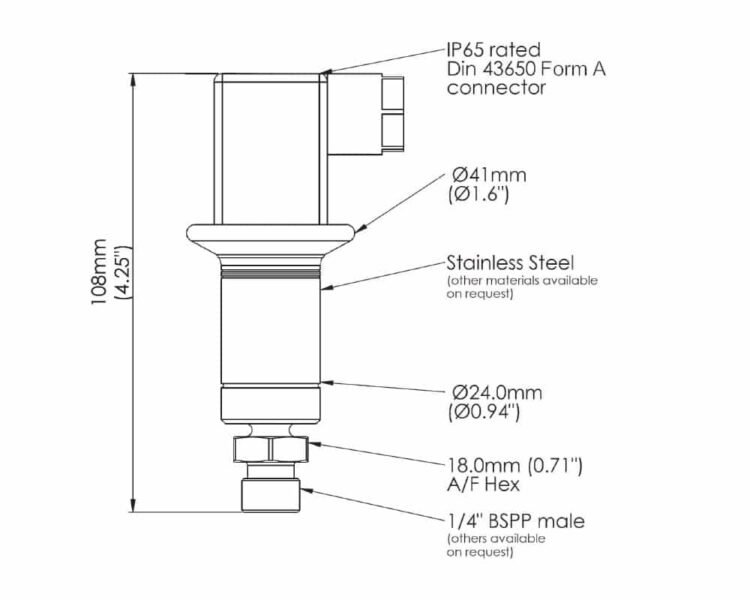

Dimensions 108.00 x 41.00 x 41.00mm
Output

Pressure Range

, , , , , , , , ,

Series / Model

Supply Voltage

Temperature Range (°C)

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 IPSAT series Ordering Info

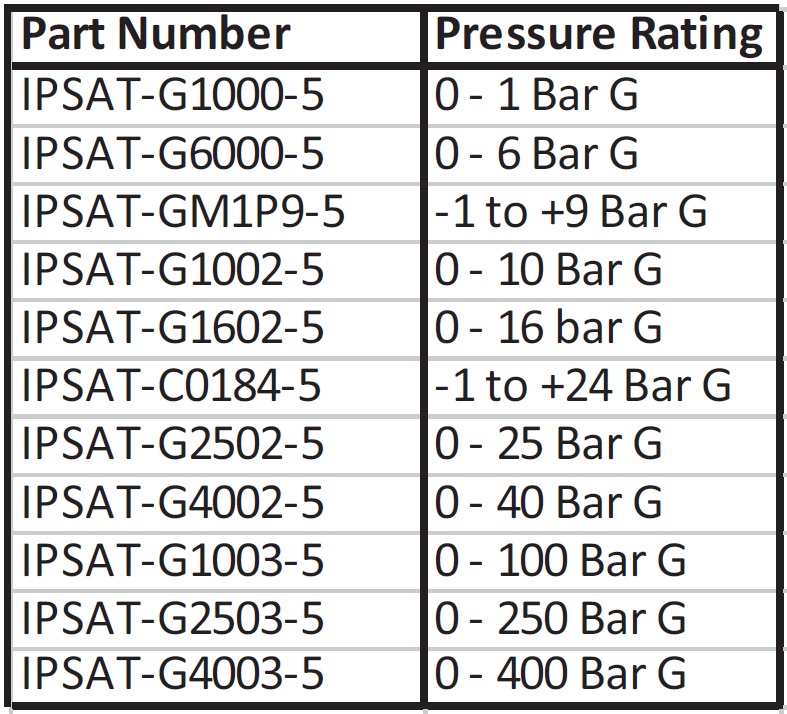

Below is a part number break down for the Cynergy3 IPS Pressure Transducer series:

Cynergy3 IPS Series ordering information

Cynergy3 IPSAT Series technical library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Cynergy3 IPSAT Intrinsically Safe Pressure Transducer Series Datasheet
Operation manual for Cynergy3 IPSAT Pressure Transducer Series
Cynergy3 Range of Pressure Sensors Explained
