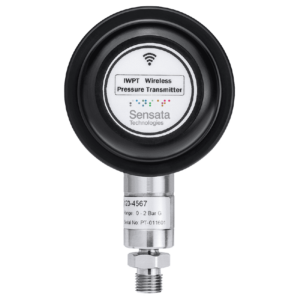

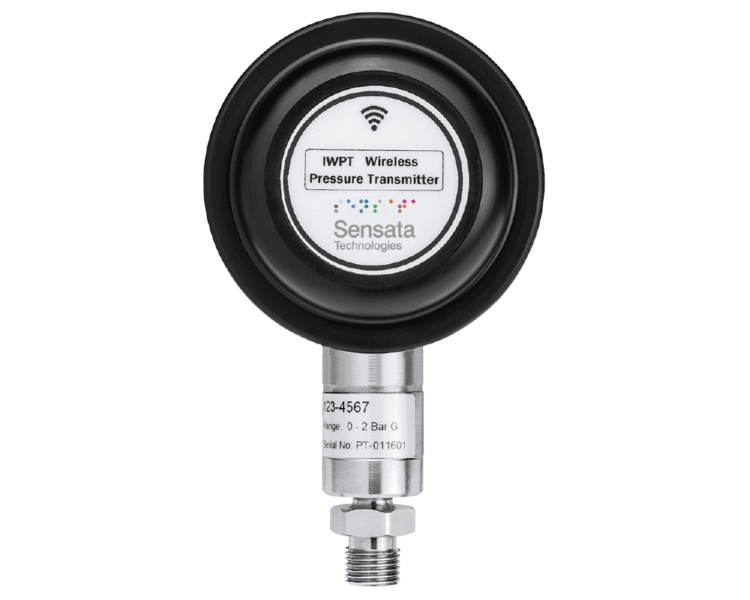

Cynergy3 IWPT Wireless Pressure Transducer Series

  • Cynergy3

Product Features

  • Industrial Wireless Pressure Transducer
  • Piezo-resistive ceramic sensor
  • Up to 750m line-of-sight range (depending on receiver used)
  • Excellent media compatibility, suitable for liquids and gasses
  • 5 year battery life with 10s transmission update rate
  • Single or five channels available
  • Economical solution

Applications

Description

The IWPT series of wireless industrial pressure transducers from Cynergy3 utilises piezo-resistive thick film ceramic sensor to offer an excellent cost effective alternative to traditional wired transducers in inaccessible or expensive installation environments. The sensors feature accuracy as low as <±0.25% of the full scale (BFSL), selection of pressure ranges from -1 to +400 bar gauge and up to 750m line-of-sight range. The IWPT series’ user selectable features include transmission update rates, output (1-5V or 4-20mA) and configuration (single or 5 channel; depending on receiver used). The IWPT series is designed to be paired with one of the IWR family of wireless receivers for simple plug-and-play pressure measurement solution; a swivel adaptor is available to allow easy alignment of the head with the receiver. The sensors are housed within a 316 stainless steel body, making them suitable to use with liquids and gases. Each device comes temperature compensated, calibrated and fully traceable.

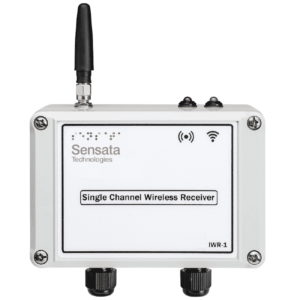

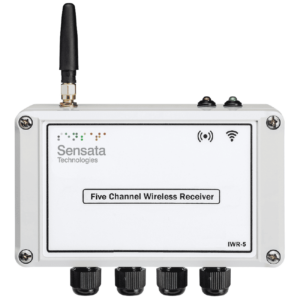

  • Industrial wireless pressure transducers
  • Piezo-resistive, thick-film, ceramic sensor
  • 316 Stainless steel housing for excellent media compatibility (liquids and gases)
  • Accuracy <±0.25% of the full scale (BFSL)
  • Temperature range (media temperature) of -20°C to 135°C
  • Battery life up to 5 years with 10s update rate
  • Process connection via 1/4″ BSP male



The IWPT series of pressure transducers is available in several output and pressure range options. Further customisation is available on this product – speak to our technical sales team to discuss your requirement.

Typical applications for the Cynergy3 IWPT pressure transducer series include:

  • Simple cable replacement installation – dispense with expensive cable runs
  • Environmental monitoring – pumping stations, sewage plants, water treatment etc.
  • Facilities management – boiler rooms, plant hydraulics, plant pneumatics
  • Asset monitoring – tank farms, process plants, HVAC and building management
  • Service contract – temporary installation for servicing and field trials



The below table gives the full specifications for each resistor model available including the Cynergy3 IWPT series:

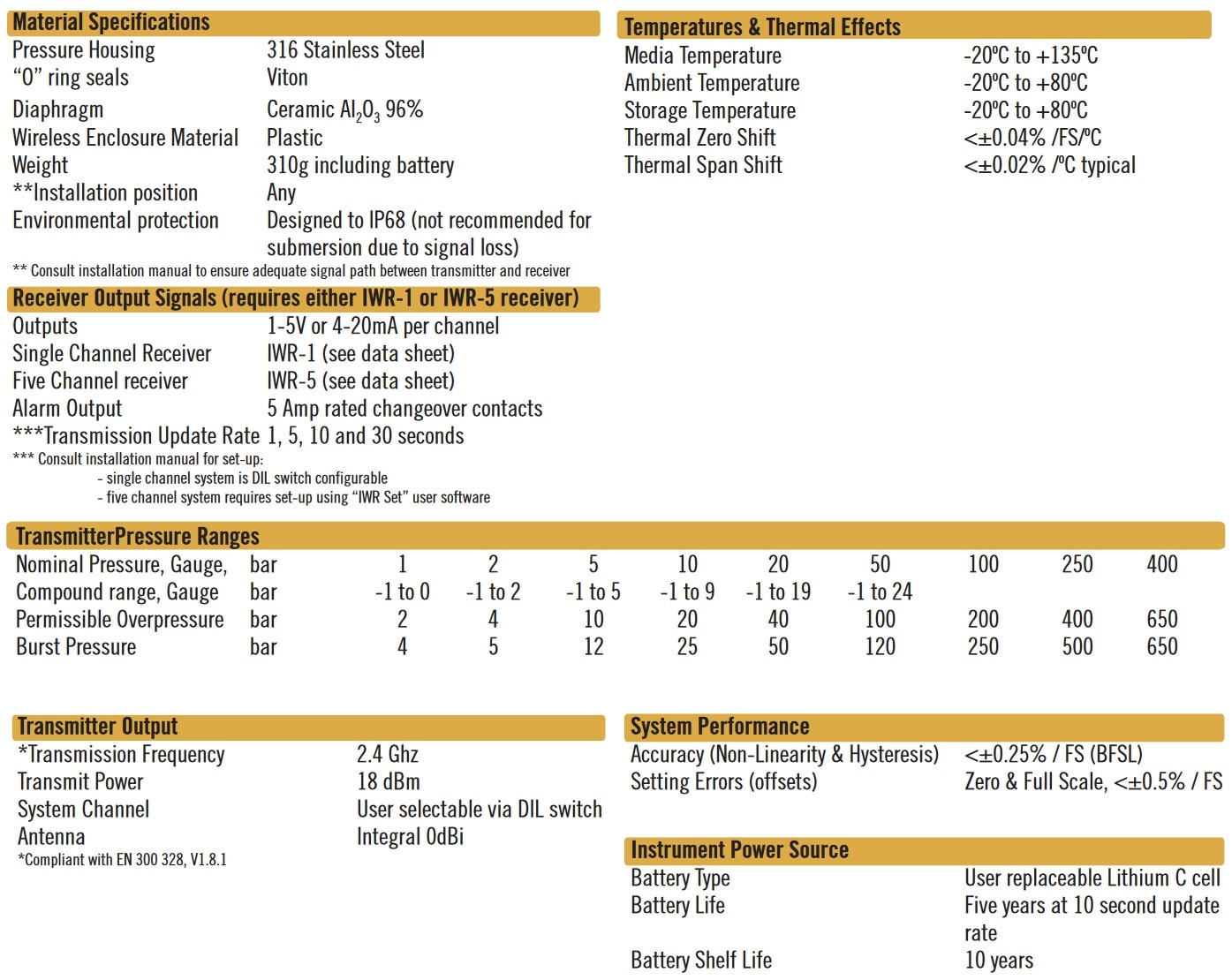

Cynergy3 IWPT series specifications



Specifications

Weight 400.00000 kg

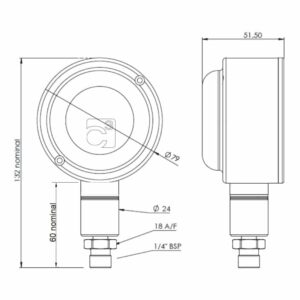

Dimensions 79.00 × 132.00 × 51.50 mm
Series / Model

Additional Features

Industrial Wireless Pressure Transducer Piezo-resistive ceramic sensor Up to 750m line-of-sight range (depending on receiver used) Excellent media compatibility, suitable for liquids and gasses 5 ye

Transmission Rate

Output

,

Temperature Range (°C)

Pressure Range

, , , , , , , , ,

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 IWPT series Ordering Info

Below is a part number break down for the Cynergy3 IWPT Pressure Transducer series:

Cynergy3 IWPT Series ordering information
