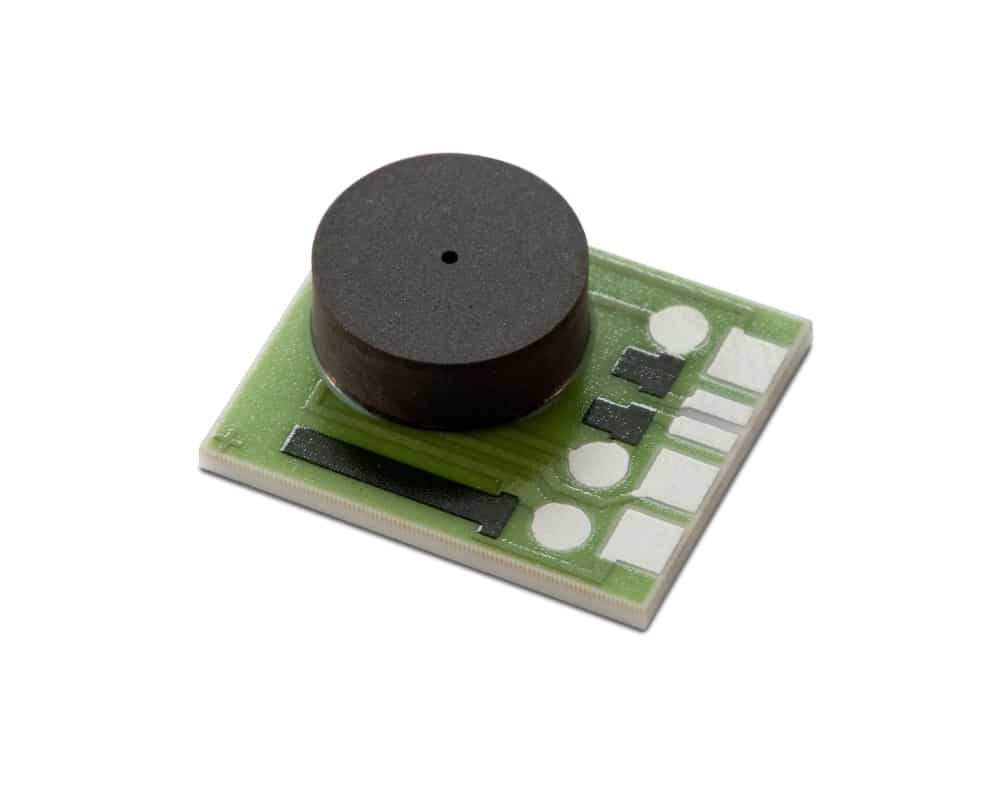

Passively Compensated Pressure Sensor

Merit Sensor AP Series

  • Room temperature calibrated pressure sensor
  • Available for air, gas and liquid media
  • Custom options available
  • Utilises a piezoresistive Wheatstone bridge with a chemically etched silicon diaphragm
  • Suitable for high volume and low to medium-pressure applications
  • Merit Sensor
  • Exempt

Specifications

Weight 0.00000 kg

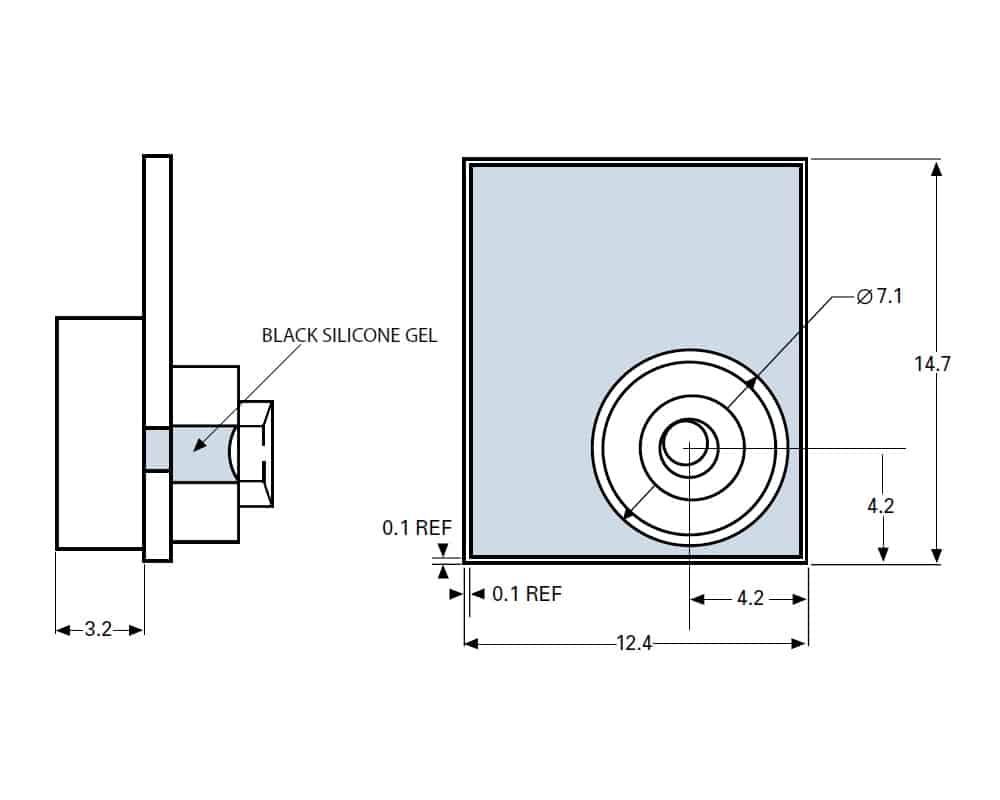

Dimensions 3.20 x 12.40 x 14.70mm
Accuracy

±2% FS
Mounting / Size

Pressure Range

Pressure Type

Series / Model

Temperature Range

+10 to +40°C
Product Type

Passively Compensated Pressure Sensor

Merit Sensor AP Series

  • Room temperature calibrated pressure sensor
  • Available for air, gas and liquid media
  • Custom options available
  • Utilises a piezoresistive Wheatstone bridge with a chemically etched silicon diaphragm
  • Suitable for high volume and low to medium-pressure applications
  • Merit Sensor
  • Exempt

Request a Quote

Sample Request
Email Datasheet

Supporting Manufacturer Information

Talk to our engineering team

Get help specifying or customising the right product for your application.

By email

Related PCB Mountable Pressure Sensors items

Merit Sensor BP Series

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

See what's possible

Related Merit Sensor AP Series Components

Merit Sensor BP Series

Passively Compensated Blood Pressure Sensor
  • Blood pressure sensor
  • Pressure range of -30 to 300 mmHg
  • Compliant with AAMI BP22 specifications
  • Excellent burst pressure with a dielectric gel barrier
  • Solid state piezoresistive sensor
  • Air, liquid and gas compatibility
View Product
Download Datasheet

The AP series pressure sensor from Merit SensorTM is calibrated at room temperature using laser trimmed resistors. This pressure sensor series offers a pressure range from -15psi to 300psi with an operating temperature range of +10°C to +40°C and an accuracy of ±2% FSO. The AP series from Merit SensorTM utilises a piezoresistive
Wheatstone bridge with a chemically etched silicon diaphragm and is suitable for high volume and low to medium-pressure applications.

  • Room temperature calibrated pressure sensor
  • Pressure range from -15 psi up to 300 psi (also available in higher pressures)
  • Burst pressure rating of 3x (full scale pressure)
  • Pressure type of gauge
  • Temperature range +10°C to +40°C
  • Accuracy of ±2 %FSO
  • Suitable for air, liquid and gas media compatibility
  • Custom options available



Typical applications for the Merit SensorTM AP series include:

  • Medical



Please see below the specifications for the Merit SensorTM TR series:

"MeritTM AP series Specifications” border=”0″>
* The combined effect of Sensitivity, Repeatability, Nonlinearity, and Hysteresis errors over the temperature range of 25°C to 15°C, and 25°C to 40°C, expressed as a percent of Full Scale pressure (%FS).
