Merit Sensor RPD Series

Merit Sensor RPD Series
Merit Sensor RPD Series
Merit Sensor RPD Series
Merit Sensor RPD Series
  • Merit Sensor

Product Features

  • Uncompensated packaged pressure sensor
  • Excellent performance in both constant current and constant voltage applications
  • Suitable for air, liquid and gas media
  • Simple pressure source attachment and electrical connection
  • Designed for a soldered connection to wires, ribbon cable,or flex strip
  • Port options of gel tube without gel, gel tube with gel (not available above 100psi) of face seal available

Applications

  • Medical
  • Exempt

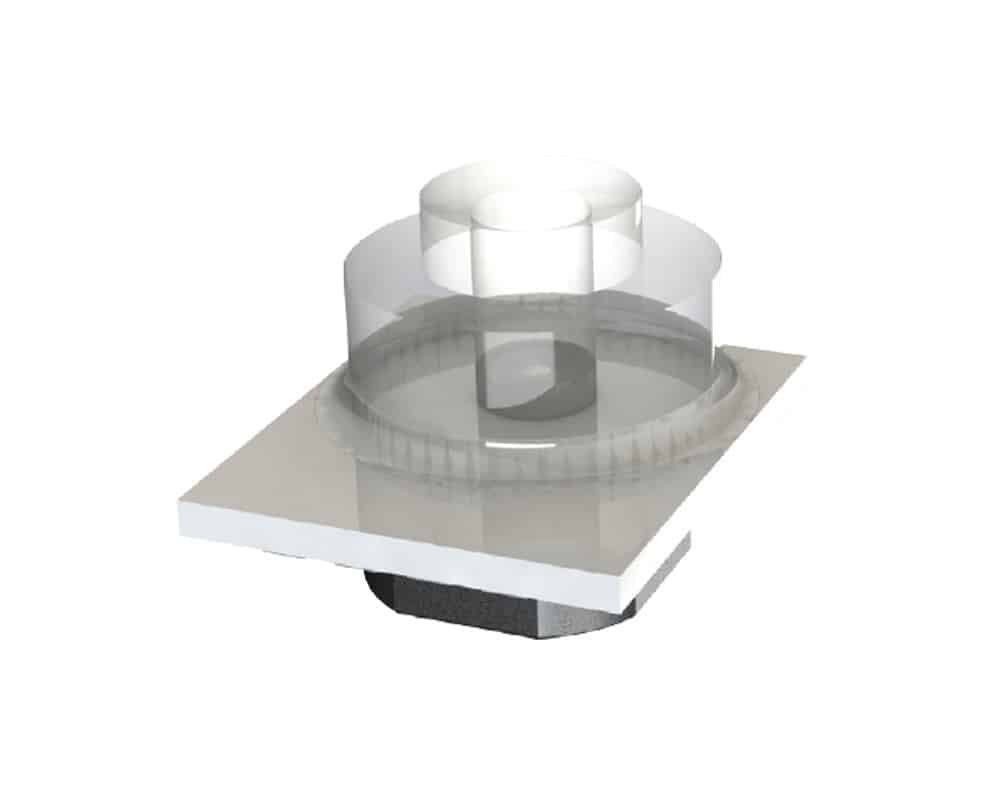

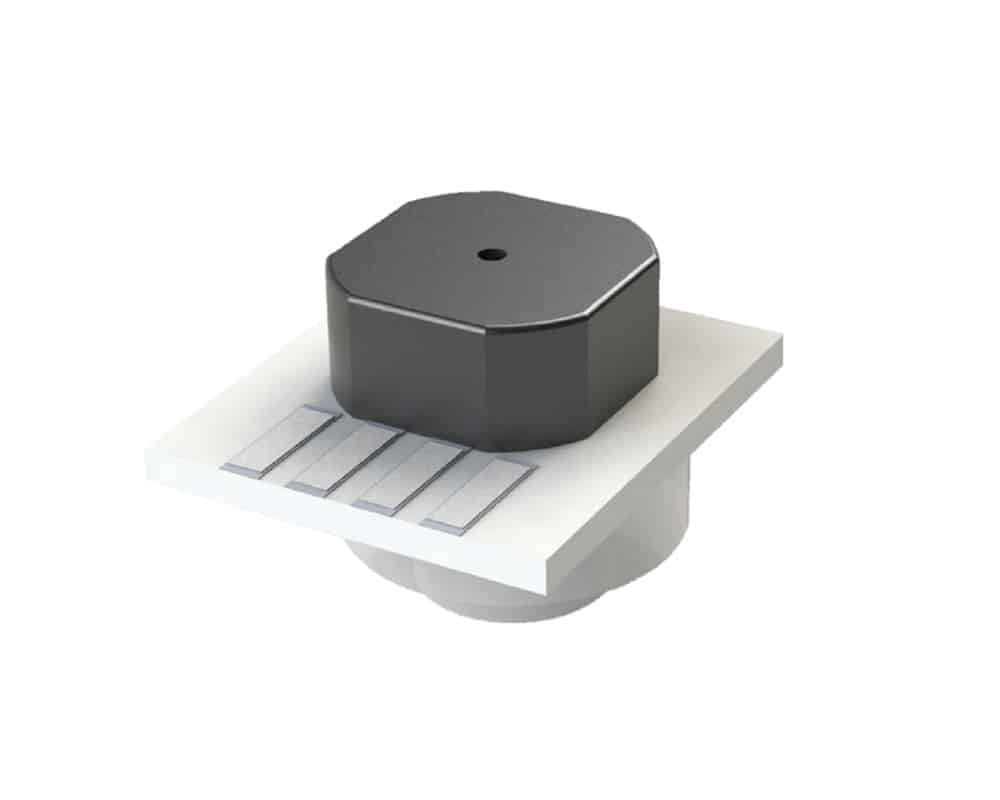

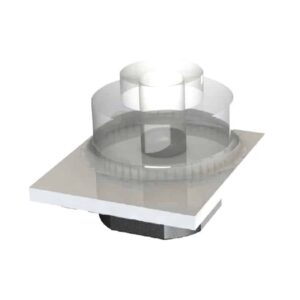

Description

The RPD uncompensated packaged pressure sensor series from Merit SensorTM is designed for applications which require a wide range of pressures to the backside of the sensing element. This pressure sensor series offers a pressure range from 0psi to 500psi with an operating temperature range of −40°C to +85°C and a typical average full-scale output of 150 mV. The RPD series from Merit SensorTM is a flexible platform with excellent media compatibility with its small, compact design is ideally suited for medical and industrial applications, utilising a piezoresistive Wheatstone bridge with a chemically etched silicon diaphragm.

  • Uncompensated packaged pressure sensor
  • Pressure ranges available from 0 psi up to 500 psi (closed bridge only)
  • Backside gauge pressure type avaialble
  • Compensated temperature −40°C to +85°C
  • Typical average full scale output of 150 mV
  • Impedance of 5kΩ (typical)
  • Port options available of gel tube/no gel, face seal or gel tube/gel (not available above 100psi)
  • Suitable for air, gases and liquids (to be determined on an application-by-application basis)
  • Excellent performance in both constant current and constant voltage applications
  • Simple pressure source attachment and electrical connection
  • Designed for a soldered connection to wires, ribbon cable,or flex strip

Typical applications for the Merit SensorTM RPD series include:

  • Medical inflation
  • Water pressure and flow management
  • Industrial process control

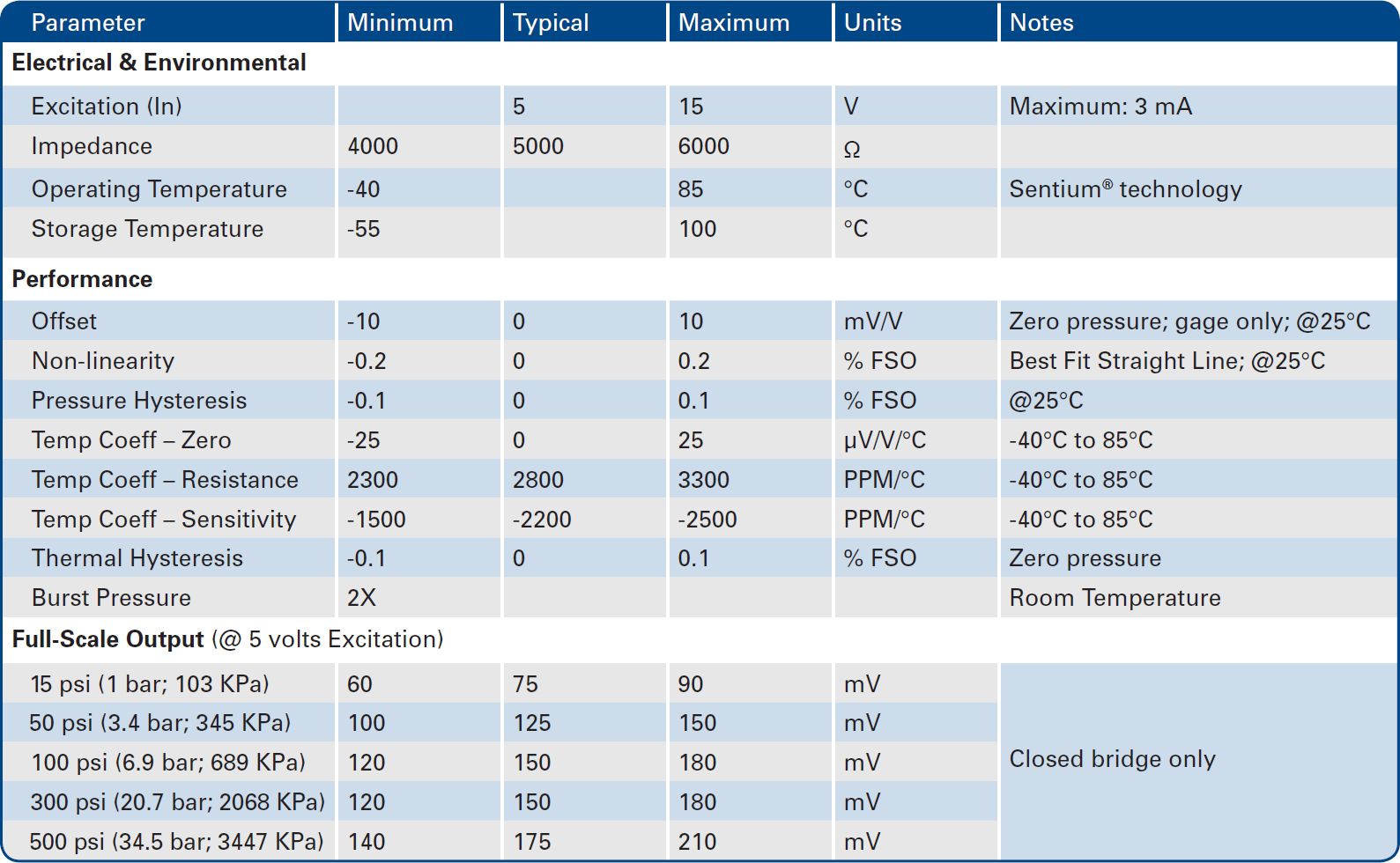

Please see below the specifications for the Merit Sensor RPD series:

Merit Sensor RPD series Specifications


Specifications

Weight 0.00000 kg

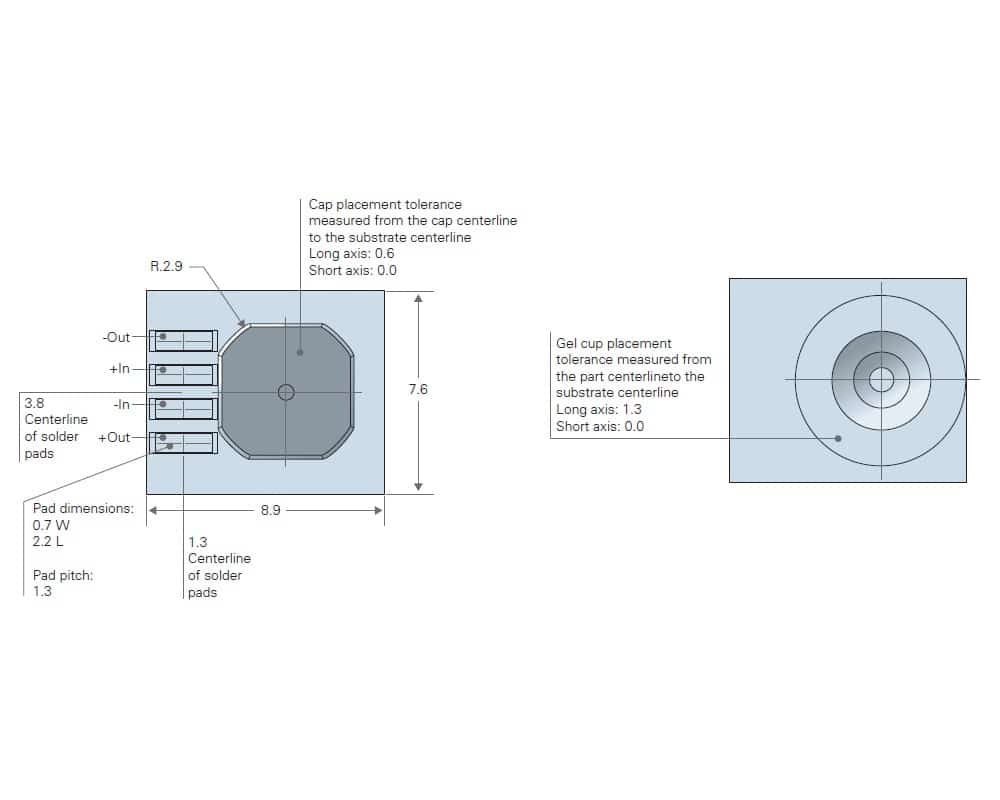

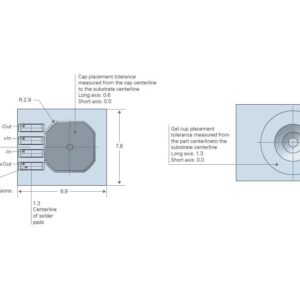

Dimensions 8.90 × 7.60 × 6.60 mm
Output

Series / Model

Temperature Range (°C)

Package / Size

, ,

Pressure Range

, , , ,

Impedance

RoHS Compliant Product – Merit

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Merit Sensor RPD Series Ordering Info

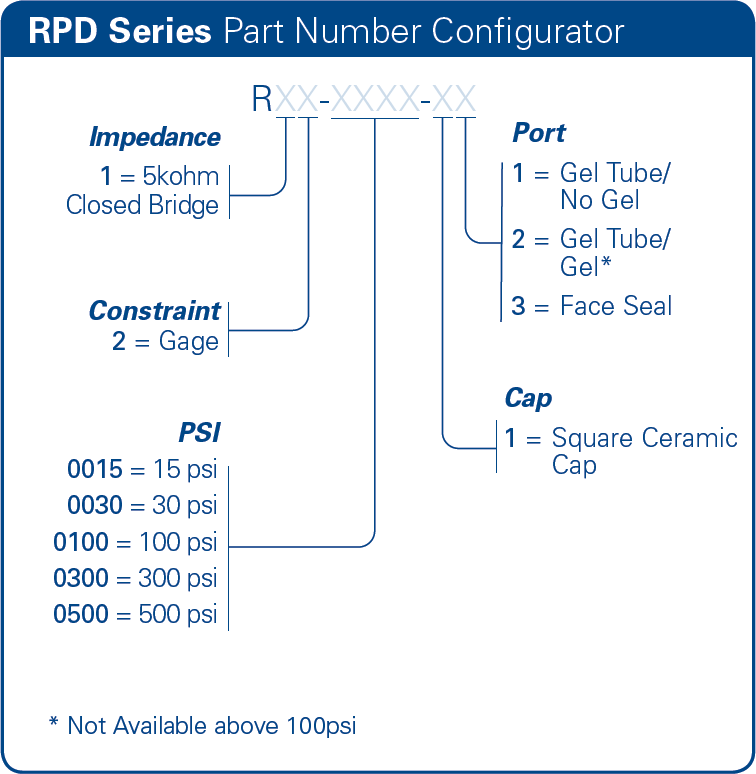

Below is an example of the part number break down for the RPD series:

bp Series Part Number Example

Merit Sensor RPD Series Technical Library

We are pleased to provide you with a range of additional content including product datasheets and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Merit Sensor RPD series uncompensated packaged pressure sensor datasheet
Merit Sensor bridge configuration options application note
Merit Sensor handling and mounting of pressure die application note
Merit Sensor reflow soldering application note
Merit Sensor product selection guide
