Merit Sensor RS Series

  • Merit Sensor

Product Features

  • Uncompensated packaged pressure sensor
  • Suitable for liquid, air and gases (to be determined on an application by application basis)
  • Merit Sensor is a leader in piezoresistive pressure sensing and partners with clients to create high performing solutions for a variety of applications and industries
  • Excellent performance in both constant current and constant voltage applications
  • Simple pressure source attachment and electrical connections
  • Designed for a soldered connection to wires, ribbon cable, flex strip or surface-mount pcb

Applications

  • Medical
  • Exempt

Description

The RS uncompensated packaged pressure sensor series from Merit SensorTM is designed for applications of a wide range of pressures to the backside of the sensing element. With a pressure range from 0psi to 500psi with a full scale output of 75mV to 175mV (at 5V excitation) and either a backside gauge or backside absolute pressure type. The RS series from Merit SensorTM is a flexible platform with excellent media compatibility and utilises a piezoresistive Wheatstone bridge with a chemically etched silicon diaphragm.

  • Uncompensated packaged pressure sensor
  • Pressure ranges available 15psi, 100psi and 500psi
  • Pressure type of backside absolute or backside gauge options available
  • Temperature range −40°C to +85°C
  • Typical full scale output (at 5V excitation) 75mV at 15psi, 150mV at 100psi and 175mV at 500psi
  • Impedance of 5kΩ (typical)
  • Suitable for liquid, air and gases (to be determined on an application by application basis)
  • Excellent performance in both constant current and constant voltage applications
  • Simple pressure source attachment and electrical connection
  • Designed for a soldered connection to wires, ribbon cable, flex strip, or surface mount pcb

Typical applications for the Merit SensorTM RS series include:

  • Medical inflation
  • Water pressure and flow management
  • Industrial process control

Please see below the specifications for the Merit SensorTM RS series:

Merit Sensor RS series Specifications


Specifications

Weight 0.00000 kg

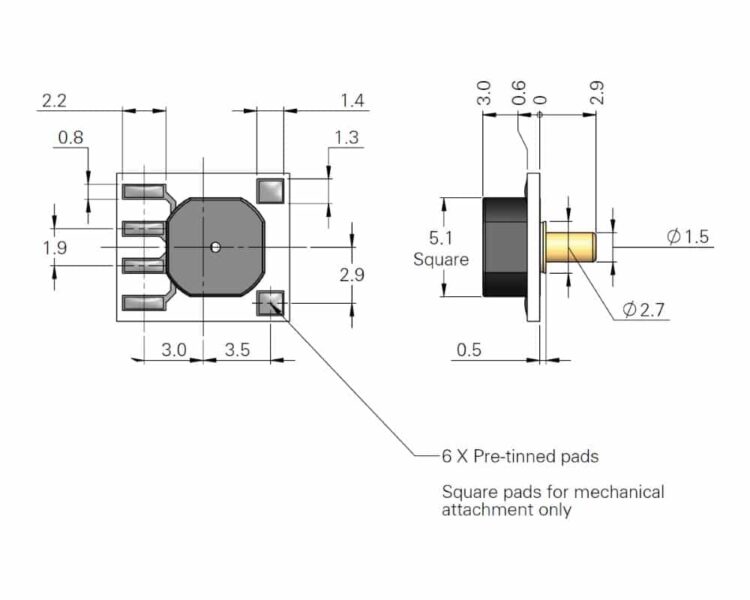

Dimensions 9.00 × 7.70 × 3.50 mm
Series / Model

Additional Features

Uncompensated packaged pressure sensorSuitable for liquid, air and gases (to be determined on an application by application basis)Merit Sensor is a leader in piezoresistive pressure sensing and partn

Output

, ,

Temperature Range (°C)

Package / Size

Pressure Range

, ,

Impedance

Pressure Type

,

Version

,

RoHS Compliant Product – Merit

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Merit Sensor RS Series Ordering Info

Below is an example of the part number break down for the RS series:

bp Series Part Number Example

Merit Sensor RS Series Technical Library

We are pleased to provide you with a range of additional content including product datasheets and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Merit Sensor RS series uncompensated packaged pressure sensor datasheet
Merit Sensor bridge configuration options application note
Merit Sensor handling and mounting of pressure die application note
Merit Sensor reflow soldering application note
Merit Sensor product selection guide
