Merit Sensor MS Series

Merit Sensor MS Series
Merit Sensor MS Series
Merit Sensor MS Series
  • Merit Sensor

Product Features

  • Surface mountable low to medium pressure sensor
  • Suitable for clean, dry air and non corrosive gases
  • Merit Sensor is a leader in piezoresistive
    pressure sensing and partners with clients to create high performing solutions for a variety of applications and industries
  • Parts are available with a cover (no gel or gel variants) or cap (ceramic or round ceramic chimney)

Applications

  • Medical
  • Exempt

Description

The MS surface mountable low to medium pressure sensor series from Merit SensorTM is a surface-mountable pressure monitoring device suitable for low to medium pressure applications. This pressure sensor series offers a pressure range from 15psi to 500psi with an operating temperature of −40°C to +85°C and a full scale output range from 75mV to 175mv (depending on the pressure range). The MS series from Merit SensorTM products incorporate a proprietary Sentium® technology, developed to provide a best-in-class
operating temperature range of -40°C to 85°C, superior stability and is a leader in piezoresistive pressure sensing and partners with clients to create high performing solutions for a variety of applications and industries.

  • Surface mountable low to medium pressure sensor
  • Pressure ranges available 15psi, 50psi, 100psi, 300psi and 500psi
  • Absolute and gauge options available
  • Temperature range −40°C to +85°C
  • Typical full scale output (at 5V excitation) 75mV at 15psi, 125mV at 50psi, 150 mV at 100psi and 300psi, 175mV at 500psi
  • Impedance of 5kΩ (typical) or 3.5kΩ (optional)
  • Suitable for clean, dry air and non-corrosive gases media

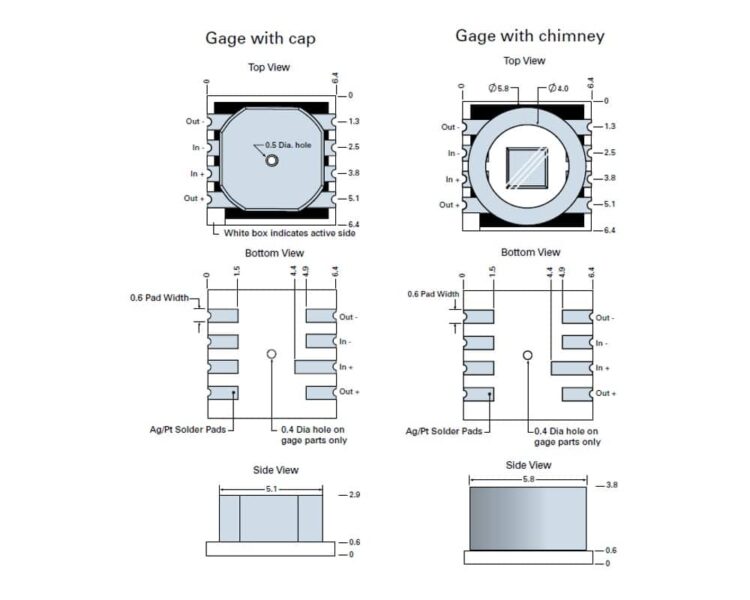

  • Package designs include with or without gel cover, ceramic cap or round ceramic chimney

Typical applications for the Merit SensorTM MS series include:

  • Industrial
  • Calibration devices
  • Pressure meters

Please see below the specifications for the Merit SensorTM MS series:

Merit Sensor MS series Specifications


Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Series / Model

Output

, , ,

Temperature Range (°C)

Package / Size

,

Pressure Range

, , , ,

Impedance

,

Pressure Type

,

Coating

,

RoHS Compliant Product – Merit

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Merit Sensor MS Series Ordering Info

Below is an example of the part number break down for the MS series:

bp Series Part Number Example

Merit Sensor MS Series Technical Library

We are pleased to provide you with a range of additional content including product datasheets and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Merit Sensor MS series surface mountable low to medium pressure sensor datasheet
Merit Sensor bridge configuration options application note
Merit Sensor handling and mounting of pressure die application note
Merit Sensor reflow soldering application note
Merit Sensor product selection guide
