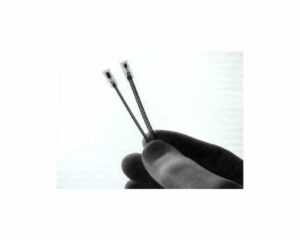

RdF 29309 Series

  • RdF

Product Features

  • Surface platinum RTD temperature sensor
  • Temperature range -200°C to +260°C (320°F to +500°F)
  • Time constant of <0.3sec on metal surfaces
  • Ice point resistance of 100 ±0.12Ω or 1000 ±1.2Ω, International Class B, (±0.12%)
  • Long term stability <0.05°C per 5 years (0.02Ω, above 50°C)
  • 4 Wire option
  • Self-heating is typically less than 15mW/°C

Applications

  • Automotive
  • Military
  • Oil & Gas
  • Available

Description

The RdF 29309 RTD temperature sensor series offers a small rugged design that allows the sensor to conform on curved surfaces for an accurate response in milliseconds (<0.3s on a metal surface).

This RTD platinum sensor is welded within a Kapton® / Teflon® lamination that completely encapsulates the assembly and lead entrance which provides moisture resistance for condensing environments or shallow immersion. This enables outstanding durability and flexibility for use. The 29309 series has an operating temperature range from -200°C up to +260°C and has long term stability exceeding ±0.05°C per 5 years.

Available with sensing element resistances of 100Ω and 1000Ω at 0°C with an IEC 751  Class B accuracy.

The leads of the sensor are comprised of 28 AWG nickelcoated, stranded copper PFA Teflon® insulated parallel conductors, with a standard length of 12 inches. These can be customised should you require.

  • Surface platinum RTD temperature sensor
  • Temperature range -200°C to +260°C (320°F to +500°F)
  • Self-heating is typically less than 15mW/°C
  • Time constant of <0.3sec on metal surfaces
  • Ice point resistance of 100 ±0.12Ω or 1000 ±1.2Ω, International Class B, (±0.12%)
  • Interchangeability ±(0.3°C @ 0°C +0.005 |t|°C) IEC 751 Class B above 50°C
  • Long term stability <0.05°C per 5 years (0.02Ω, above 50°C)
  • Maximum current 100Ω = 5 mA, 1000Ω = 2 mA for limited seIf heating
  • Recommended maximum current of 1 mA
  • Lead wires of 28 AWG nickel-plated copper, PFA Teflon® insulated ribbon cable
  • 4 wire configuration
  • Encapsulated in Kapton®

RdF 29309 Series Specification Table

AttributesValue
Platinum sensing elementT01: 100Ω ±0.12Ω @ 0°C
T10: 1000Ω ±1.2Ω @ 0°C
AccuracyIEC 751 Class B >-50°C: ±(0.3°C @ 0°C +0.005 |t|°C)
Temperature range-200°C to 260°C (-320°F to 500°F)
Response time<0.3 seconds on metal surfaces
Stability <0.05°C/5 years
Self reating≲15mW/°C
Insulation resistance50MΩ minimum at 50V DC at 25°C
Recommended operating current1mA
Number of wires4
Lead wires28 AWG stranded nickel plated copper,
PFA Teflon® insulated ribbon cable
Case materialKapton®

RdF is the world’s leading innovator in the design, development and production of surface, insertion and immersion temperature and heat flow sensors. Every product in this catalogue is a class leader in ease-of-use, toughness and long-term reliability, all at low cost. Please visit www.rdfcorp.com/ for more information.

Specifications

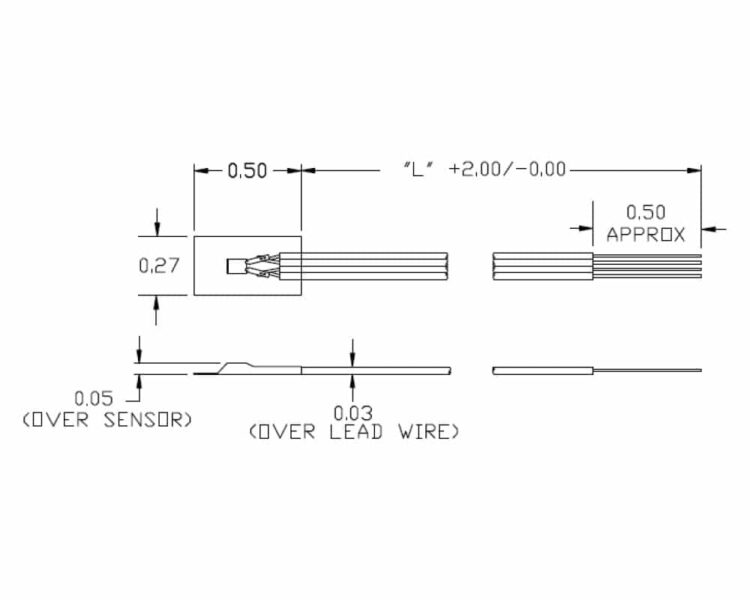

Dimensions 0.50 × 0.27 × 0.05 mm
Accuracy

Series / Model

Response Time

Operating Current

Temperature Range (°C)

Package / Size

RTD Type

,

Lead Length

,

Number of Leads

RdF 29309 Series Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

RdF 29309 Series Ordering Info

The RdF 29309 surface platinum RTD temperature sensor series is available with various options including standard resistance and stability values. The information below gives an example of the part numbering system used for these sensors and the standard options available.

Below is an example of the part number break down for the 29309 series:

RdF 29309 Product Ordering Info

RdF 29309 Series Ordering Info


Resistance Specification (at 0°C) Part Number Value IEC 751 Class B Number of wires
100Ω T01 ±0.12Ω 4
1kΩ T10 ±1.2Ω 4

RdF 29309 Series
