RdF 29230 Series

  • Available
  • RdF

Product Features

  • Surface platinum RTD temperature sensor
  • Temperature range -50°C to +232°C (upto +260°C in dry applications)
  • Response time of 0.3s in water flowing at 3ft/s
  • Sensing elements of 100Ω, 500Ω or 1000Ω available at 0°C
  • Long term stability <0.05°C per 5 years
  • 2 or 3 wire configuration options avaiable
  • Self heating is typically less that 25mW/°C

Applications

  • Automotive
  • Military
  • Oil & Gas

Description

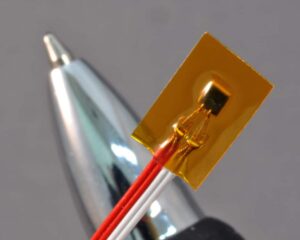

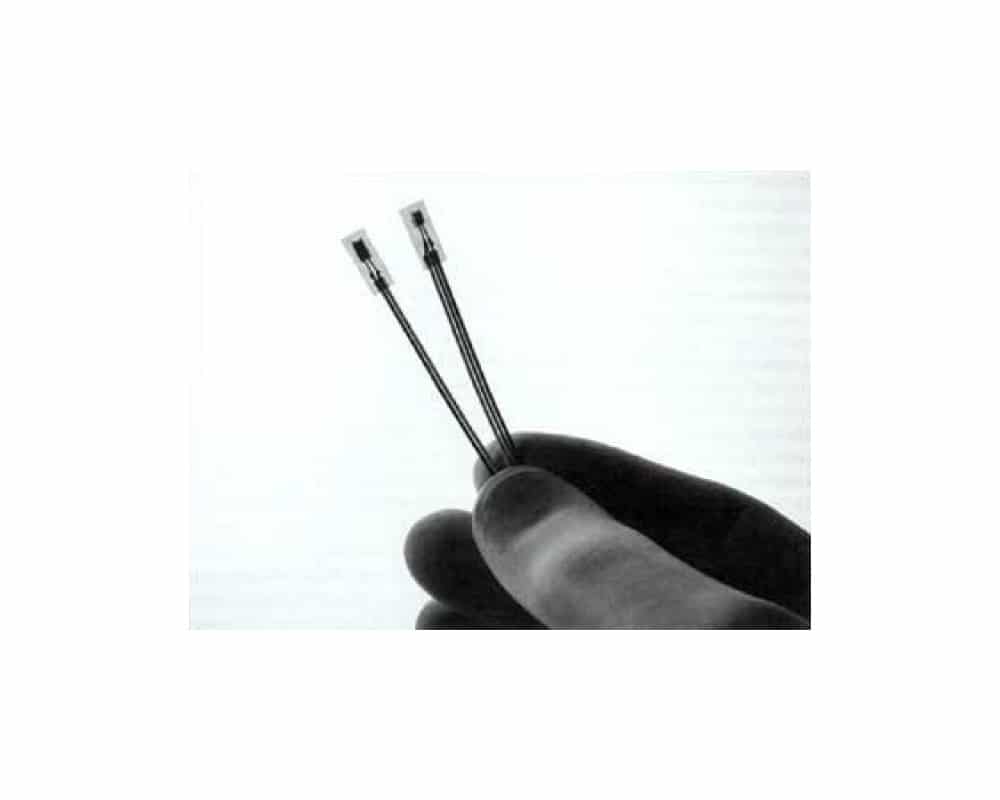

The RdF 29230 surface platinum RTD temperature sensor series from RdF offers a small rugged design that allows the sensor to conform on curved surfaces for an accurate response in milliseconds. The leads are welded within the sealed platinum RTD sensor which helps to provide this sensor’s durability. These surface temperature sensors have an operating temperature range of -50°C to +232°C (or up to +260°C in dry applications) and have long term stability better than ±0.05°C per 5 years. Available with sensing element resistances of 100Ω and 1000Ω with an IEC 751 Class A or Class B accuracy, or 500Ω with an IEC 751 Class B accuracy. The 29230 series offers a response time of 0.3s in water flowing at 3 feet per second. Moisture resistance for condensing environments or shallow immersion is provided by Kapton® / Teflon® lamination that completely encapsulates the assembly and lead entrance. The lead lengths of the sensor can be customised to your requirements. Please contact a member of our team to find out more.

  • Surface platinum RTD temperature sensor
  • Temperature range -50°C to +232°C (upto +260°C in dry applications)
  • Self heating is typically less that 25mW/°C
  • Response time of 0.3s in water flowing at 3ft/s
  • Sensing elements of 100Ω, 500Ω or 1000Ω available at 0°C
  • Platinum per IEC 751 (α = 0.00385 Ω/Ω/°C, Class A & B)
  • Long term stability <0.05°C per 5 years
  • Lead wires of 28 AWG nickel plated copper, PFA Teflon® insulated ribbon cable
  • 2 or 3 wire configuration options avaiable
  • Encapsulated in Kapton®



RdF 29230 Series Specification Table

AttributesValue
Sensing Element Platinum per IEC 751 Class BT01: 100Ω ±0.12Ω @ 0°C
T05: 500Ω ±0.6Ω @ 0°C
T10: 1000Ω ±1.2Ω @ 0°C
Sensing Element Platinum per IEC 751 Class AA01: 100Ω ±0.06Ω @ 0°C
A10: 1000Ω ±0.6Ω @ 0°C
AccuracyIEC 751 Class B: ±(0.3°C + 0.005 |t|)
IEC 751 Class A: ±(0.15°C+ 0.002 |t|)
Temperature range-50°C to 232°C* (-60°F to 450°F*)
*260°C (500°F) in dry applications.
Response Time0.3 seconds in water flowing at 3ft/s
Stability <0.05°C/5 years
Self Heating≲25mW/°C
Insulation Resistance10MΩ minimum at 50V DC
Operating Current0.5mA
Lead Wires28 AWG stranded nickel plated copper,
PFA Teflon® insulated ribbon cable
Case MaterialKapton®


RdF is the world’s leading innovator in the design, development and production of surface, insertion and immersion temperature and heat flow sensors. Every product in this catalog is class leader in ease-of-use, toughness and long-term reliability, all at low cost. Please visit www.rdfcorp.com/ for more information.

Specifications

Weight 0.00000 kg

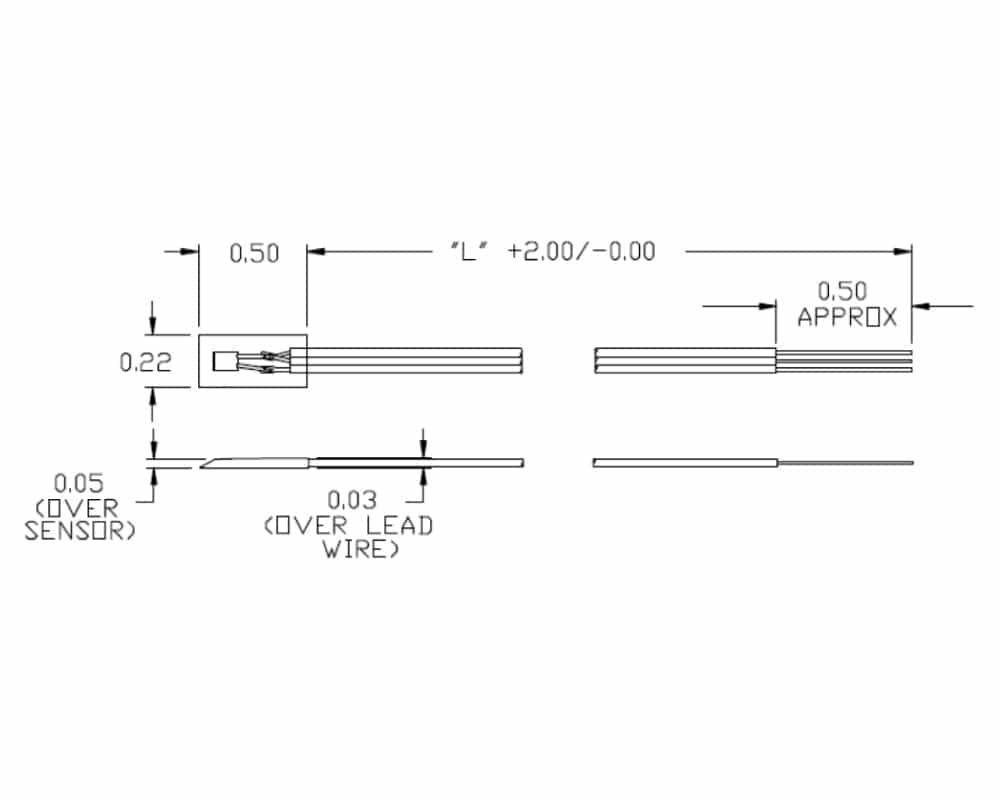

Dimensions 0.50 × 0.22 × 0.05 mm
Series / Model

Accuracy

,

Response Time

Operating Current

Temperature Range (°C)

Package / Size

RTD Type

, , , ,

Number of Leads

,

RdF 29230 Series Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

RoHS Compliant Product – RdF

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

RdF 29230 Series Ordering Info

The RdF 29230 surface platinum RTD temperature sensor series is available with various options including standard resistance and stability values. The information below gives an example of the part numbering system used for these sensors and the standard options available.

Below is an example of the part number break down for the 29230 series:

RdF 29230 Ordering Info

RdF 29230 Series Ordering info


Resistance Specification (at 0°C) Part Number Value IEC 751 Class A IEC 751 Class B Number of wires
100Ω T01 ±0.06Ω ±0.12Ω 2 or 3
500Ω T05 N/A ±0.6Ω 2 or 3
1kΩ T10 ±0.6Ω ±1.2Ω 2 or 3
