Cynergy3 ITT Programmable Temperature Probe series

Cynergy3 ITTU Programmable Temperature Probe series
Cynergy3 ITTU Programmable Temperature Probe series
Cynergy3 ITTU Programmable Temperature Probe series
  • Cynergy3

Product Features

  • Programmable temperature probes
  • Selection of thermocouple and RTD inputs
  • Output configurable to desired temperature range
  • 1/4″ BSP connection

Applications

Description

The ITT series of programmable temperature probes utilise K or J thermocouple or a PT100 RTD sensor and a 6mm stainless steel sheath for efficient temperature measurement (accuracy of 0.1% for RTD and 0.2% for thermocouple), delivered via programmable 4-20mA transmitter output. The probe comes pre-programmed for easy setup, but the can be configured to any temperature range within the probe’s capability using the software provided.

  • Programmable temperature probes
  • Available with J type thermocouple (0-1200°C range), K type thermocouple (0-1350°C range) or PT100 RTD sensor (-200-850°C range)
  • 6mm stainless steel sheath available in various lengths
  • Robust aluminium head
  • Output via 4-20mA transmitter, programable to any temperature range within the probe’s capabilities (software available to download from Technical Library)
  • Temperature range (ambient) of -20°C to 50°C
  • Accuracy of 0.1% overall for RTD and 0.2% for thermocouple
  • Process connection via 1/4″ BSP male
  • Can be used with any standard 6mm compression fittings

The ITT series of pressure transducers is available with a variety of accessories such as plastic and metal cable glands, compression fittings or stainless steel pockets – speak to our technical sales team to discuss your requirement.

The below table gives the full specifications for each resistor model available including the Cynergy3 ITT series:

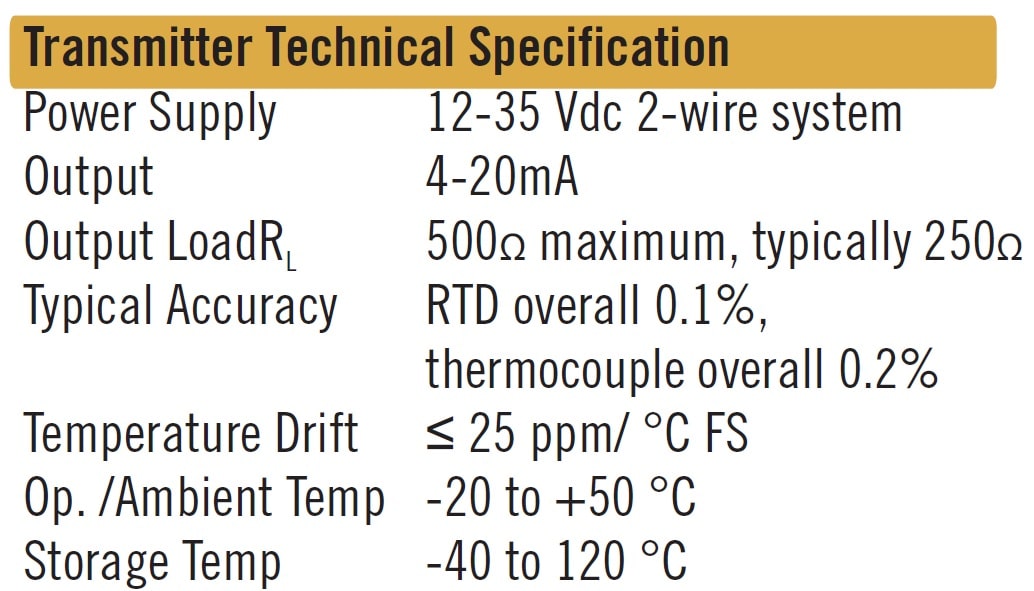

Cynergy3 ITT series specifications


Specifications

Weight 760.00000 kg

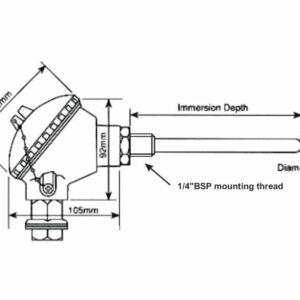

Dimensions 105.00 × 92.00 × 82.00 mm
Series / Model

Accuracy

,

Temperature Drift

Output

Temperature Range (°C)

Supply Voltage

Input

, ,

Probe Length

, , , , ,

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 ITT series Ordering Info

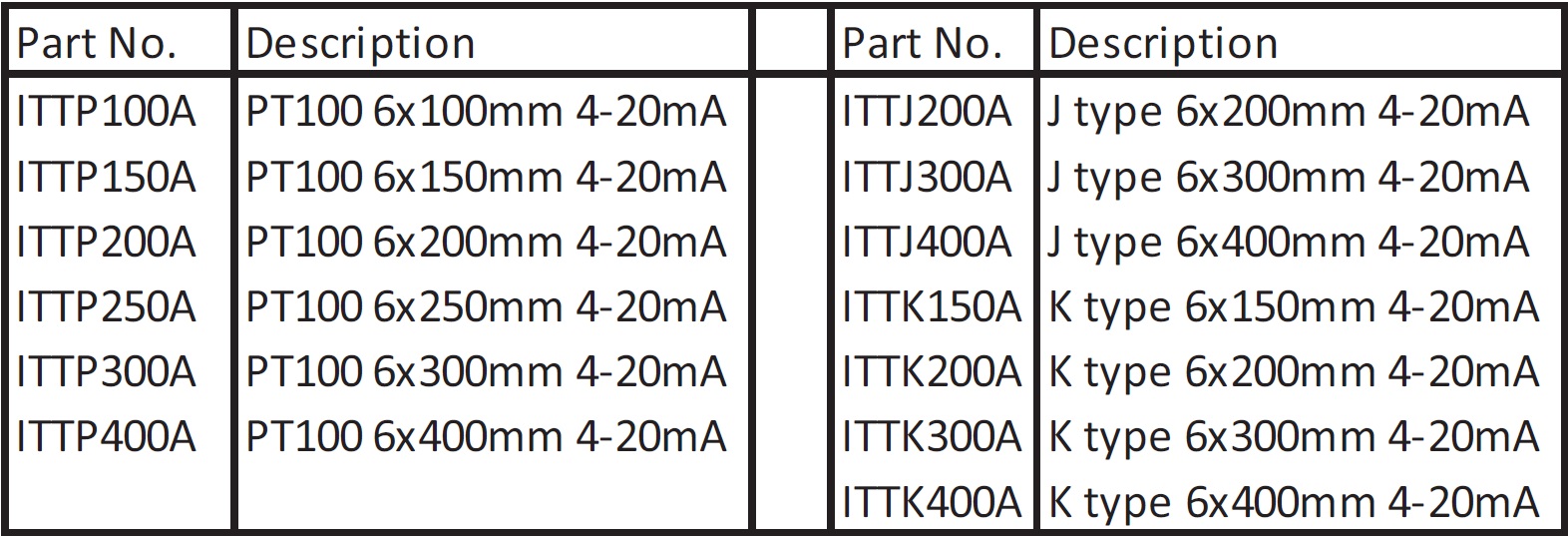

Below is a part number break down for the Cynergy3 ITT Programmable Temperature Probe Series:

Cynergy3 ITT Series ordering information

Cynergy3 ITT Series technical library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:

DOCUMENTATION
Cynergy3 ITT Programmable Temperature Probe Series Datasheet
Operation manual for Cynergy3 ITT Programmable Temperature Probe Series
SOFTWARE
Download Configuration software for Cynergy3 ITT series of programmable temperature probes
