Cynergy3 IWTT Wireless Temperature Transducer Series

Cynergy3 IWTT Wireless Temperature Transducer Series
Cynergy3 IWTT Wireless Temperature Transducer Series
Cynergy3 IWTT Wireless Temperature Transducer Series
  • Cynergy3

Product Features

  • Industrial Wireless Temperature Transducer
  • Selection of thermocouple (J or K type) or RTD sensor inptu
  • Up to 750m line-of-sight range (depending on receiver used)
  • Excellent media compatibility
  • 5 year battery life with 10s transmission update rate
  • Single or five channels available
  • Head connection via 1/4″ BSP
  • Economical solution

Applications

Description

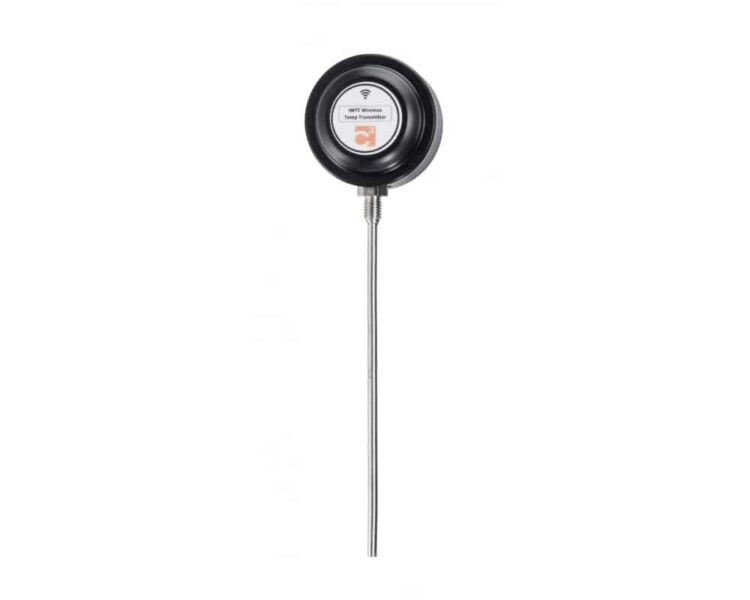

The IWTT series of wireless industrial temperature transducers from Cynergy3 utilises J or K type thermocouples or PT100 RTD sensor to offer an excellent cost effective alternative to traditional wired transducers in inaccessible or expensive installation environments. The sensors feature accuracy as low as <±0.1% of the full scale, temperature coefficient of ±500ppm/°C and up to 750m line-of-sight range. The IWTT series' user-selectable features include transmission update rates, output (4-20mA or 1-5V), and configuration (single or 5 channel; depending on receiver used). The IWTT series is designed to be paired with one of the IWR family of wireless receivers for simple plug-and-play temperature measurement solution; a compression fitting is available to allow easy alignment of the head with the receiver. The sensors are housed within an acetal body, making them suitable to use in harsh environments. Each device comes temperature compensated, calibrated and fully traceable.

  • Industrial wireless temperature transducers
  • Selection of type J-type thermocouple (0-1200°C range), K-type thermocouple (0-1350°C range) or PT100 RTD sensor (-200 – +800°C range)
  • Acetal housing suitable for use in harsh environments
  • Accuracy <±0.1% of the full scale (non-linearity and hysteresis)
  • Temperature range (ambient temperature) of -20°C to 50°C
  • Battery life up to 5 years with 10s update rate
  • Process connection via 1/4″ BSP male

The IWTT series of temperature transducers is available in a range of input and sheath length options. Further customisation is available on this product – speak to our technical sales team to discuss your requirement.

Typical applications for the Cynergy3 IWTT pressure transducer series include:

  • Simple cable replacement installation – dispense with expensive cable runs
  • Environmental monitoring – pumping stations, sewage plants, water treatment etc.
  • Facilities management – boiler rooms, plant hydraulics, plant pneumatics
  • Asset monitoring – tank farms, process plants, HVAC and building management
  • Service contract – temporary installation for servicing and field trials

The below table gives the full specifications for each resistor model available including the Cynergy3 IWTT series:

Cynergy3 IWTT series specifications


Specifications

Weight 300.00000 kg

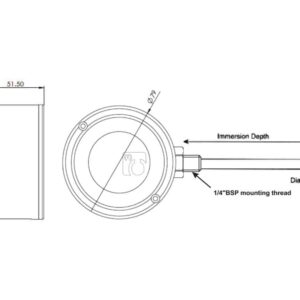

Dimensions 79.00 × 79.00 × 51.50 mm
Transmission Rate

Series / Model

Output

,

Temperature Range (°C)

Input

, ,

Probe Length

, , , , ,

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 IWTT series Ordering Info

Below is a part number break down for the Cynergy3 IWTT Wireless Temperature Transducer Series:

Cynergy3 IWTT Series ordering information

Cynergy3 IWTT Series technical library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Cynergy3 IWTT Wireless Temperature Transducer Series Datasheet
Operation manual for Cynergy3 IWTT Wireless Temperature Transducer Series
