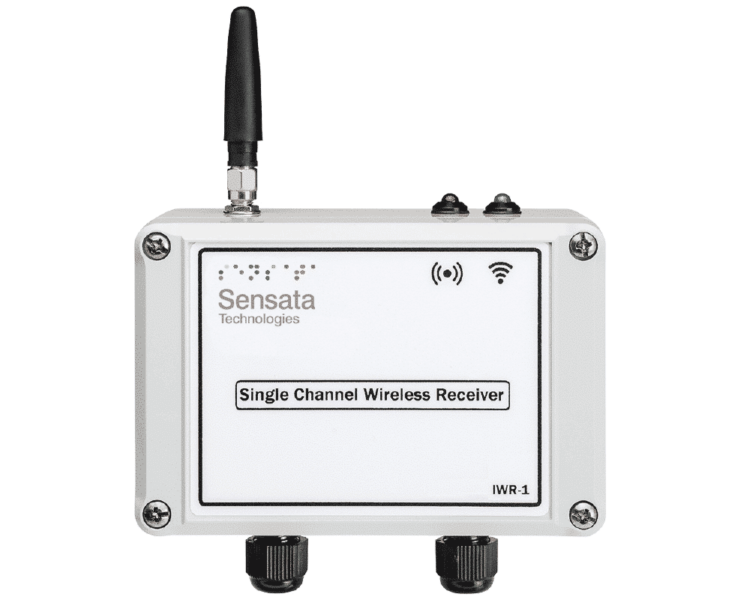

Cynergy3 IWR-1 Wireless Receiver - 1 channel

  • Cynergy3

Product Features

  • Wireless receiver for IWPT/U and IWTT/U series of wireless pressure and temperature transducers
  • LED indication of wireless link
  • Up to 750m line-of-sight range (with 3dBl antenna, 500m with standard antenna)
  • Economical plug-and-play solution

Applications

Description

The IWR-1 single-channel wireless receiver from Cynergy3 is a designed to be paired with IWPT, IWPTU, IWTT and IWTTU series of wireless pressure and temperature sensors. With end-to-end accuracy of 0.25% FS BFSL and up to 750m line-of-sight range (with use of optional 3dBl antenna), the wireless system offers an economical alternative to traditional wired transducer solutions. While offering user-selectable features (choice of output, transmission rate etc.), this received is designed to work “out-of-the-box” as a simple plug-and-play remote measurement solution.

  • Single-channel wireless receiver for IWPT/U and IWTT/U series of wireless pressure and temperature transducers
  • Simple plug-and-play installation (configuration software available to download from Technical Library if required)
  • User-selectable output: 4-20mA or 1-5V
  • Accuracy <±0.25% of the full scale (BFSL)
  • Temperature range (media temperature) of -10°C to +50°C
  • Clean contact output for process, low battery or loss of signal alarm function
  • Up to 750m line-of-sight range when used with 3dBl antenna (up to 500m with standard 0dBl antenna)
  • Powered by 12-32Vdc supply

A range of auxiliary parts is available for the IWR-1 receiver, including DIN rail and wall mounting kits, upgraded 3dBl antenna, etc. – please speak to our technical sales team to discuss your requirements.

The below table gives the full specifications for the Cynergy3 IWR-1 wireless receiver:

Cynergy3 IWR-1 specifications


Specifications

Weight 215.00000 kg

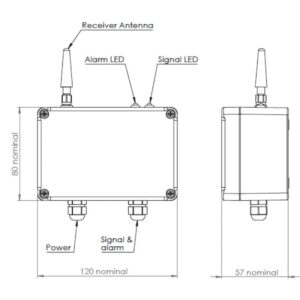

Dimensions 120.00 × 80.00 × 57.00 mm
Series / Model

Additional Features

Wireless receiver for IWPT/U and IWTT/U series of wireless pressure and temperature transducers LED indication of wireless link Up to 750m line-of-sight range (with 3dBl antenna, 500m with standard

Temperature Range (°C)

Output

,

Supply Voltage

Number of Channels

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 wireless pressure and temp sensors Video Library

We are pleased to provide you with a range of videos, please see below for the latest content available:





VIDEOS
Place holder video for YouTube video Cynergy3 Wireless Pressure & Temperature Sensors Video

Overview of the features and benefits of Cynergy3 wireless temperature and pressure sensor technology.

VIDEOS
Place holder video for YouTube video
Cynergy3 Wireless Pressure & Temperature Sensors Video

Overview of the features and benefits of Cynergy3 wireless temperature and pressure sensor technology.

Cynergy3 IWR-1 technical library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Cynergy3 IWR-1 Wireless Receiver Datasheet
Operation manual for Cynergy3 IWR-1 Wireless Receiver
Cynergy3 Range of Pressure Sensors Explained
Cynergy3 Range of Pressure Sensors Explained
