Susumu RR0306 Series

  • Susumu

Product Features

  • Surface-mount metal thin film precision chip resistor
  • Temperature range of −55°C to +125°C
  • Maximum voltage of 15V
  • Precision chip resistors excellent in frequency performance, noise characteristics and linearity.

Applications

The RR0306 series of thin film precision chip resistors from Susumu offer the designer precision and reliability. The resistive element is a Ni-Cr film and with wraparound terminations which are solder plated with a leach resistant nickel barrier. The Susumu RR0306 series has a chip size of 0201 and a resistance range from 10Ω to 22kΩ. This precision surface-mount chip resistor provides excellent temperature stability combined with low noise and good high frequency response.

  • Surface-mount thin film precision chip resistor
  • Resistance range between 10Ω and 22kΩ available
  • Resistance value series E-24
  • Power rating of 0.05W
  • Tolerance values available are ±0.5% (D) and ±1% (F)
  • TCR values available are ±25 ppm/°C (P) and ±100 ppm/°C (R)
  • Maximum voltage of 15V
  • Temperature range of −55°C to +125°C
  • Chip size of 0201



The Susumu RR0306 series of thin film precision chip resistors are ideal for the following applications:

  • Consumer electronics that requires precision resistors
  • All-purpose resistors in any area of electronics

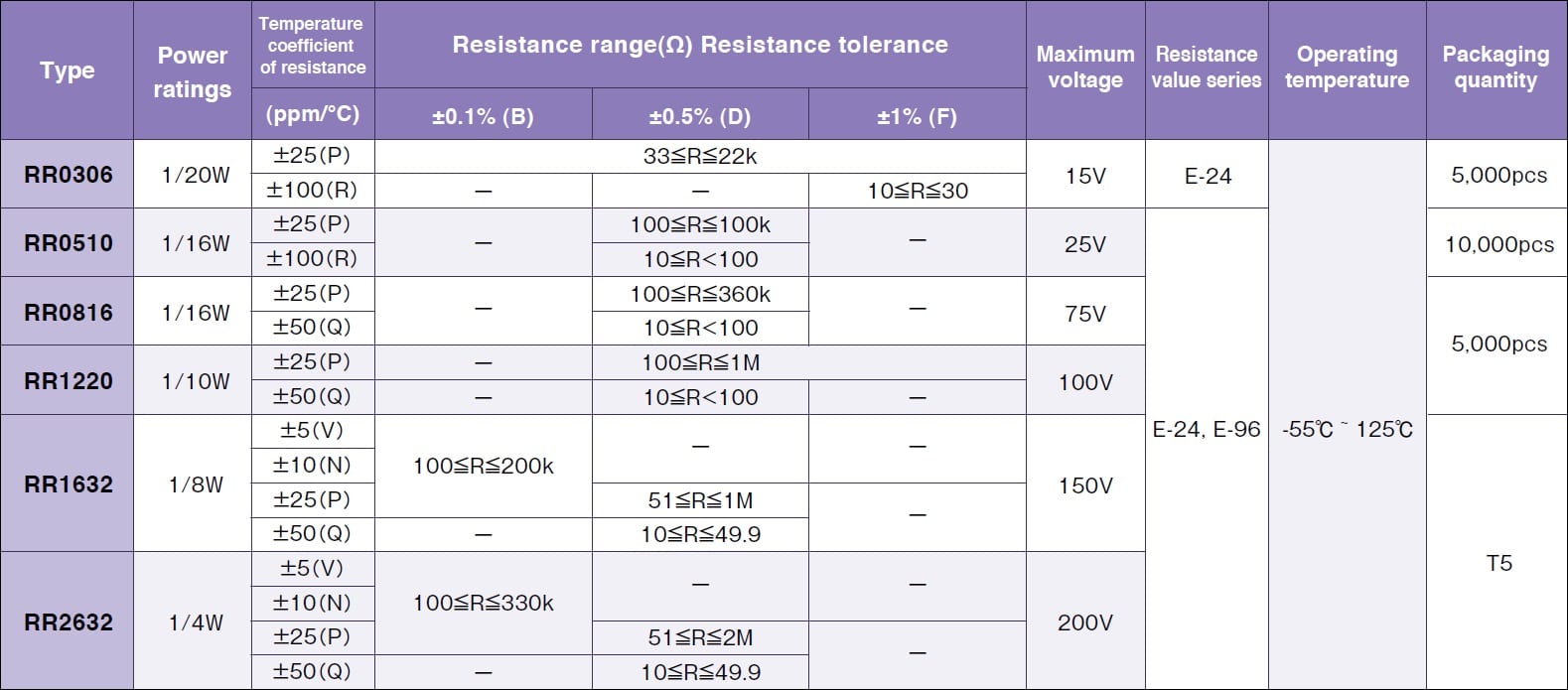

The below table gives the full specifications of the Susumu RR series including the RR0306:

Susumu RR0306 Specifications
Please see the Susumu selection guide in the Technical Library tab for the E-24 values





Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg
Dimensions 0.23 x 0.30 x 0.60mm
Maximum Resistance

Minimum Resistance

Package / Size

Power Rating

Series / Model

Temperature Coefficient

,

Tolerance

,
