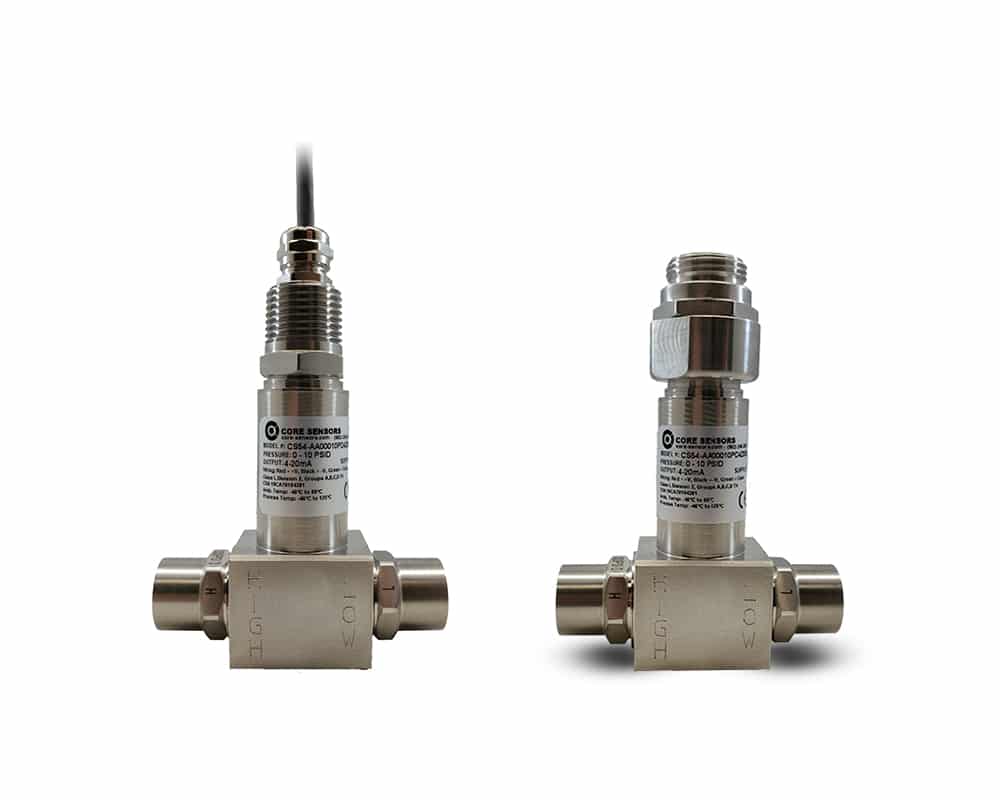

Core Sensors CS54 Series

  • Core Sensors

Product Features

  • Non-Incendive Differential Pressure Transducer
  • Differential pressure up to 50 PSI
  • Line pressure up to 500 PSI
  • Accuracy of ≤±0.25% BFSL / ≤±0.5% BFSL (2 PSI & below)
  • Overpressure of 2X or 500 PSI (whichever is less)
  • Temperature range −40°C to +80°C
  • Media temperature of -40 to +125°C

Applications

The CS54 non-incendive differential pressure transducer is a high-strength sensor designed for differential pressure measurements of liquids and gases in Class I, Division 2 hazardous locations. A 316L SS oil-filled sensor element provides excellent stability over a wide operating temperature range while offering corrosion resistance against various liquids and gases. Differential pressure ranges up to 50 PSI are available with 1/4″ MNPT or FNPT process connections.

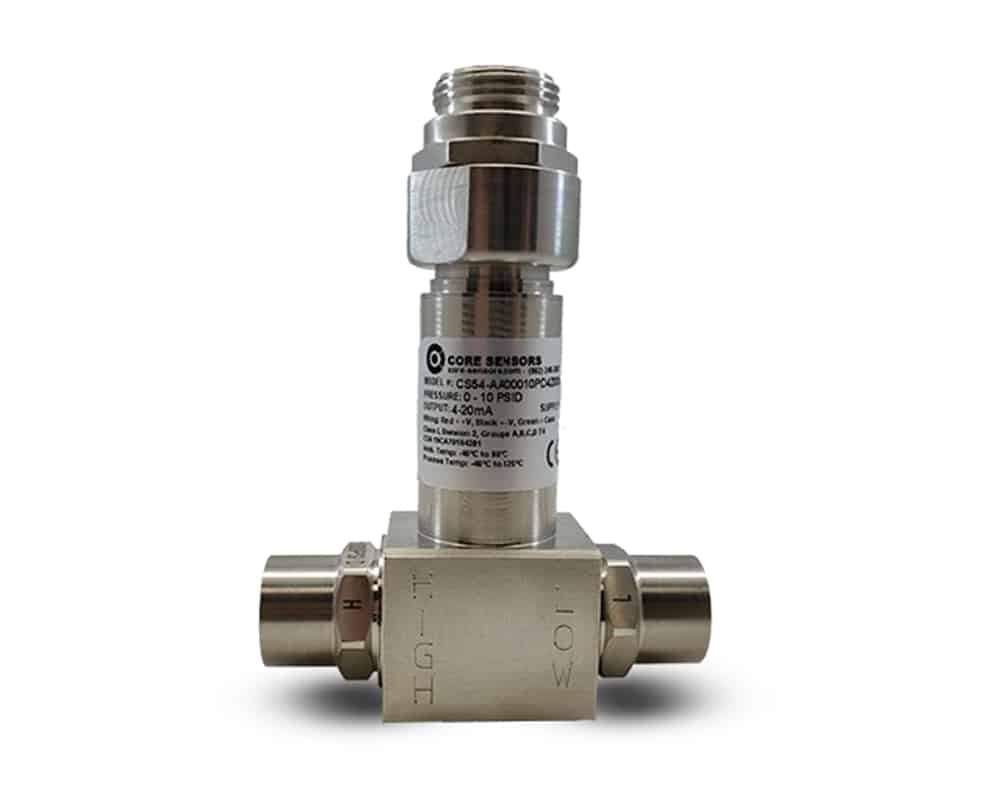

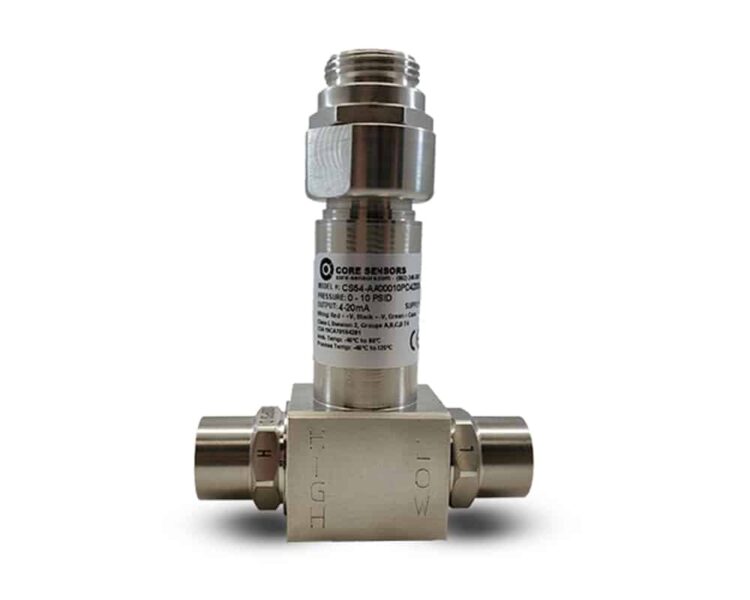

In an effort to simplify installation in Class I, Division 2 hazardous locations, the CS54 is offered with an integral Turck® Minifast® electrical connection.

When combined with a CSA Division 2 approved Turck® cordset and a Turck® Lokfast Guard, there is no requirement for a conduit to be installed over the cable*. This not only makes installation easy but also makes switching out sensors less cumbersome. Core Sensors can supply all components as a complete package.

  • Non-Incendive Differential Pressure Transducer
  • Differential pressure up to 50 PSI
  • Line pressure up to 500 PSI **
  • Bi-directional pressure ranges available
  • Accuracy of ≤±0.25% BFSL / ≤±0.5% BFSL (2 PSI & below) *
  • Stability (1 year) of ≤±0.25% of FS
  • Pressure cycles of 4 million
  • Overpressure of 2x or 500 PSI (whichever is less), configured differential pressure ***
  • Burst pressure of 3x configured differential pressure ***
  • Temperature range −40°C to +80°C (-20 to +80°C using DIN 43650-A)
  • Media temperature of -40 to +125°C (-40 to +105°C using DIN 43650-A)
  • Electrical output options of 4-20mA, 1-5V, 0.5-4.5V ratiometric or 0.5-2.5V non-ratiometric
  • 316L SS diaphragm / oil filled sensor element
  • 1/4” NPT or FNPT process connections

* Accuracy includes non-linearity, hysteresis and non-repeatability
** Max line pressure is the highest common mode pressure that can be applied to the sensor without damage
*** Overpressure and burst pressure are the maximum differential pressure that can be applied to the high or low side before damage to the sensor will occur

Approvals for the Core CS54 series include:

  • CSA Class I, Division 2, Groups A, B, C, D T4 Approved
  • ABS (American Bureau of Shipping) Approved
  • CE

Note: Must use an approved barrier to maintain listed certifications. See page 4 of the datasheet for entity parameters.

Typical applications for the CS54 Non-Incendive Differential Pressure Transducer include:

  • Filtration
  • Cryogenic bulk tank level measurement
  • External fuel tank level measurement
  • Compression systems
  • Test stands


Performance, Thermal, Environmental & Physical Specifications Table

AttributeValue
Accuracy at 25°C *≤±0.25% BFSL
≤±0.5% BFSL (2 PSI & below)
Stability (1 Year)≤±0.25% of FS
Pressure Cycles4 million
Maximum Line Pressure **500 PSI
Overpressure ***2x or 500 PSI (whichever is less, configured differential pressure)
Burst Pressure ***3x configured differential pressure
Operating Temperature-40°C to +80°C
-20°C to +80°C for DIN 43650-A
Media Temperature-40°C to +125°C
-40°C to +105°C for DIN 43650-A
Compensated Temperature0°C to +55°C
Storage Temperature-40°C to +125°C
TC Zero≤±1% of FS
≤±2% of FS (2 PSI & below)
TC Span≤±1% of FS
≤±2% of FS (2 PSI & below)
EMI / RFI ProtectionYes
IP Rating **IP65 minimum
Vibration10g, 20 to 2000Hz
Shock100g, 11msec, 1/2 sine

Electrical Specifications (Current)

AttributeValue
Outputs4 to 20mA
Excitation10 to 28VDC
Current Consumption20mA (typical)
Output Load0 to 800Ω at 10 to 28VDC
Frequency Response~250Hz (minimum)
Zero Offset (of FS)≤±0.5% (typical)
±1% maximum
Span Tolerance (of FS)≤±0.5% (typical)
±1% maximum

Electrical Specifications (Voltage)

AttributeValue
Outputs1 to 5V
Excitation10 to 28VDC
Current Consumption<10mA
Output Load5kΩ (minimum)
Frequency Response~1kHz (minimum)
Zero Offset (of FS)≤±0.5% (typical)
±1% maximum
Span Tolerance (of FS)≤±0.5% (typical)
±1% maximum

Electrical Specifications (Ratiometric Voltage)

AttributeValue
Outputs0.5 to 4.5V ratiometric
Excitation5VDC ±0.5V
Current Consumption<10mA
Output Load5kΩ (minimum)
Frequency Response~1kHz (minimum)
Zero Offset (of FS)≤±0.5% (typical)
±1% maximum
Span Tolerance (of FS)≤±0.5% (typical)
±1% maximum

Electrical Specifications (Low Power Voltage)

AttributeValue
Outputs0.5 to 2.5V non-ratiometric
Excitation3 to 5VDC unregulated
Current Consumption≤3mA
Output Load5kΩ (minimum)
Frequency Response~1kHz (minimum)
Zero Offset (of FS)≤±0.5% (typical)
±1% maximum
Span Tolerance (of FS)≤±0.5% (typical)
±1% maximum


ImageText
danger iconCaution must be taken when installing and operating the CS50/CS51/CS54 in known Class I, Division 2 hazardous locations. Please review the Non-Incendive Operating Instructions prior to installation. Any misuse or improper installation may impair the equipment’s intended use and/or protection ratings. Thoroughly read and understand the operating instructions prior to installation. Call us on +44 (0) 1342 330 470 if you are unsure about any of the precautions, instructions or have any other enquiries.


Core Sensors design and manufacture high quality sensors for measuring pressure and temperature properties for industrial and hazardous applications worldwide. Core offers solutions for industrial, submersible, differential and hazardous applications in both standard and custom packaging. In-house design and manufacturing capabilities along with strategic manufacturing partners allows Core to create solutions to some of the most complex sensor requirements. Please visit https://core-sensors.com for more information.

Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Product Type

,

Process Connection

,

Wetted Material

Pressure Range

Pressure Unit

,

Pressure Type

,

Output

, , ,

Electrical

, ,

Options

Lead Length

, , ,

Temperature Range (°C)

,

Accuracy

,

Series / Model

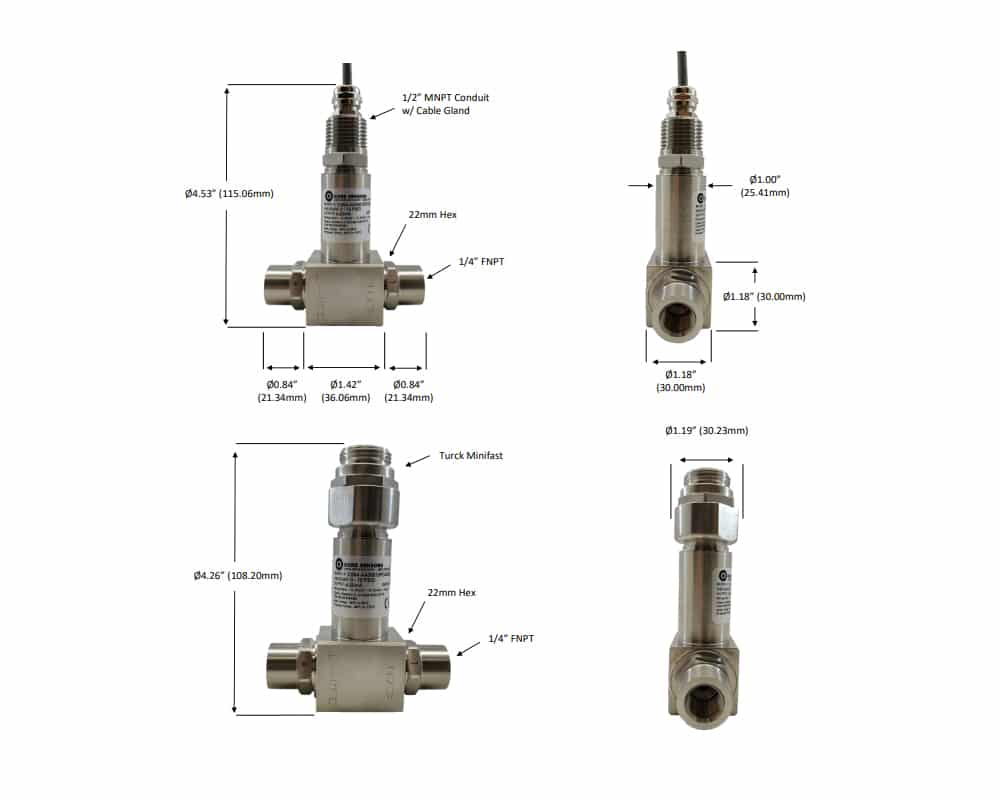

Core Sensors CS54 Series Ordering Info

Below is the model number configuration for the CS54 series from Core Sensors.

Ordering example: CS54-AA00010PD4H000-00
CS54XXXXXXXXXXXXXXXX

Series / Model (CS54)

CS54
CS54

Process Connection (X)

2
1/4” Male NPT
A
1/4” Female NPT

Wetted Material (X)

A
316L SS

Pressure Range (XXXXX)

Insert 5digit pressure code, max 50 PSI
i.e. 00050 = 50 PSID

Pressure Unit (X)

P
PSI
W
Inches of H2O

Pressure Type (X)

B
Bidirectional
D
Differential

Output (X)

1
1 to 5V
2
0.5 to 4.5V ratiometric
4
4 to 20mA
8
0.5 to 2.5V non-ratiometric

Electrical (X)

F
DIN 43650, Form A
H
Turck® Minifast®
Z

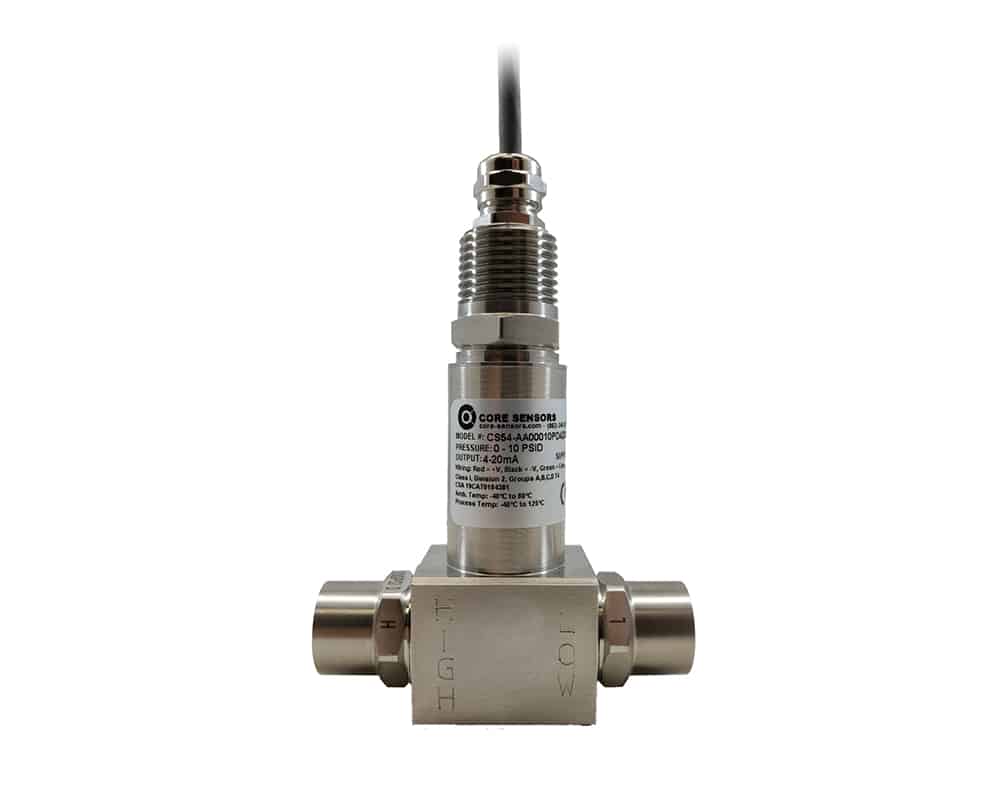

1/2″ MNPT conduit with strain relief

Options (XXX)

000
No special options

Lead Length (XX)

00
No cable
01
1m
02
2m
03
3m
