Jackcon Y1 HT 400VAC Capacitor Series

  • Jackcon

Product Features

  • AC high temperature ceramic disc capacitors
  • Dissipation factor of ≤2.5%
  • Insulation resistance of  10,000 MΩ min at 100Vdc over 1 minute

Applications

Description

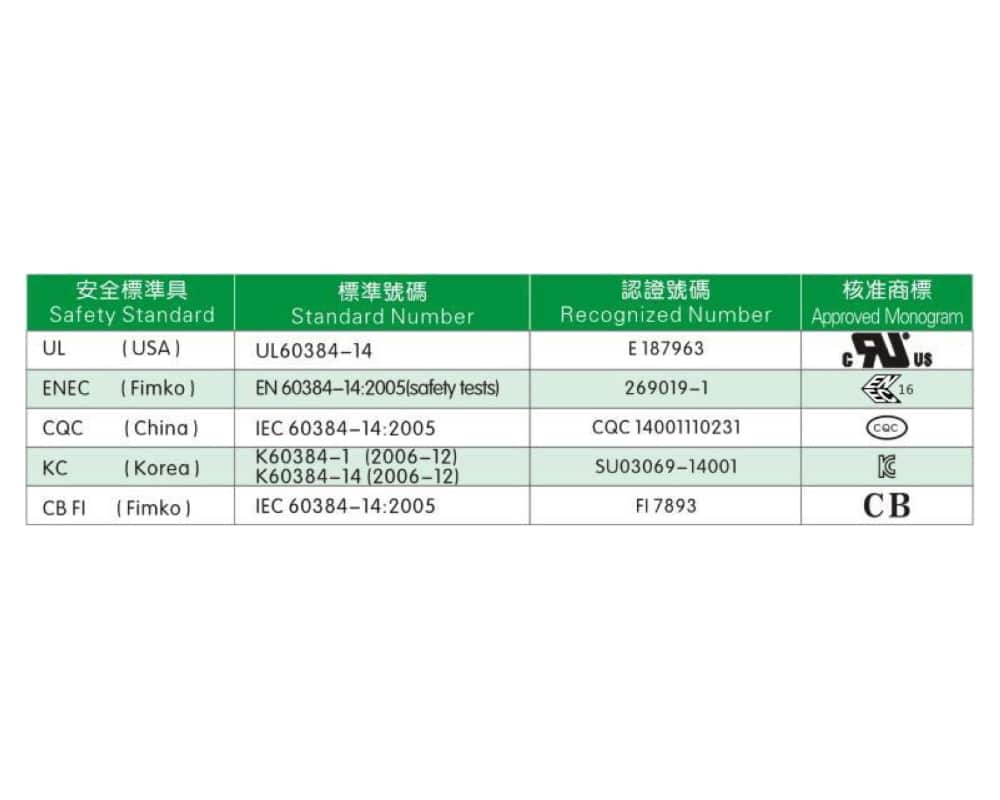

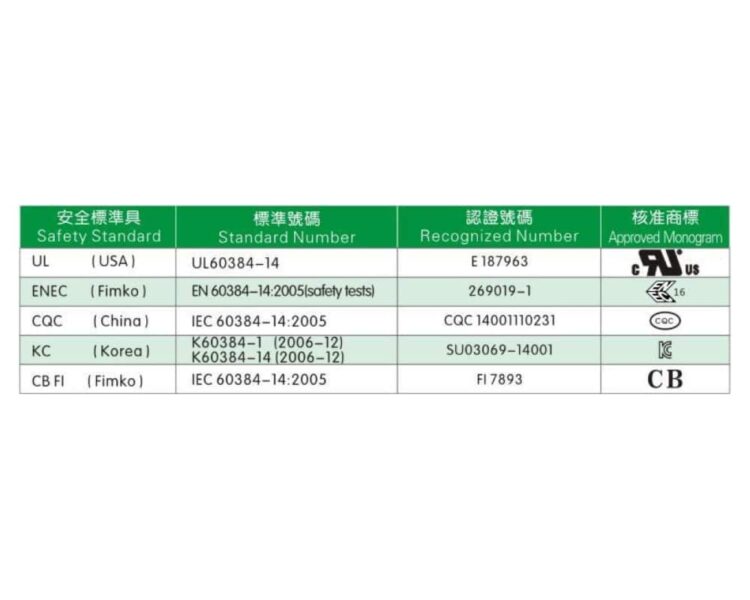

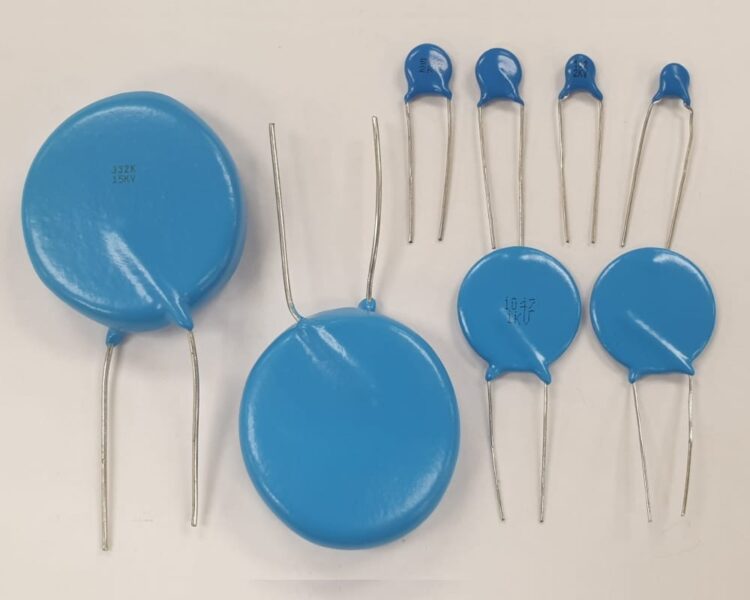

The Y1 400VAC high temperature ceramic disc capacitor series from Jackcon offers cost effective solution and compact package, while adhering to the majority of internationally recognised safety standards including UL E187963 (see datasheet for the full list). These AC capacitors feature capacitance between 10pF and 4.7nF and dielectric strength of 2600Vac. The available dielectric materials are Y5P or Y5U, dissipation factor of ≤2.5%, with tolerances of either ±10%  (Y5P, Y5U)  or ±20% (Y5U) and TCR  values available either ±10% max (Y5P) or -56% to ±22% (Y5U). The operating temperature of Y1 capacitors is between -40°C and +125°C.

  • High temperature AC ceramic disc capacitors
  • Selection of dielectric materials offering range of properties – Y5P or Y5U
  • Available in capacitance ratings between 10pF and 4.7nF
  • Insulation resistance of at least 10,000MΩ min at 100Vdc over 1 minute
  • Dissipation factor of ≤2.5
  • Tolerances of ±10% (Y5P and Y5U models) or ±20% (Y5U model)
  • TCR ±10% max(Y5P), -56% max to +22%(Y5U)
  • Operating temperature between -40°C and +125°C
  • Through-hole radial leaded capacitors

Typical applications for the Jackcon Y1 High Temperature (400VAC) disc ceramic capacitor series include:

  • Across-the-line applications
  • Coupling
  • Line by-pass

The below table gives the specification overview for each capacitor model available within the Y1 High Temperature (400VAC) capacitor series:

Jackcon Y1 (400VAC) HT Specifications

The reference test temperature is 25°C


Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

,

Additional Features

Tolerance

,

Voltage Rating

Temperature Range (°C)

Package / Size
