Jackcon HI-K DC Capacitor series

  • Jackcon

Product Features

  • DC ceramic disc capacitor
  • Dissipation factor ≤2.5% (Y5P, Y5T and Y5U models) or ≤5% (Y5V models)
  • Insulation resistance of 10,000 MΩ min at 100Vdc over 1 minute

Applications

Description

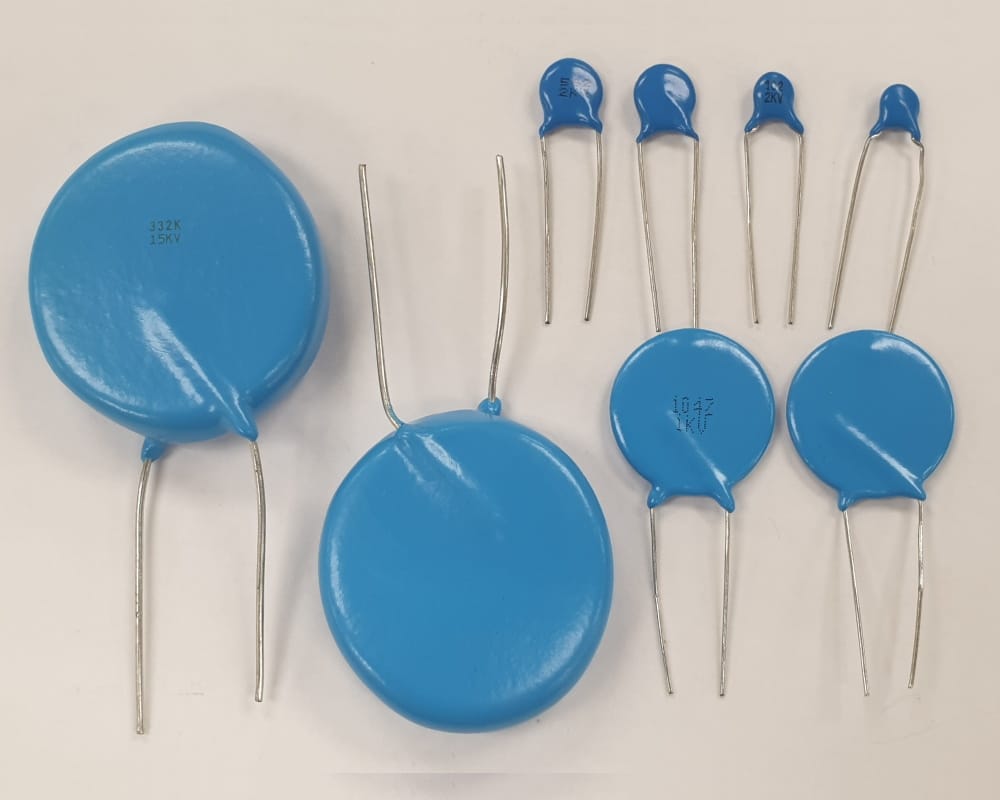

The HI-K DC ceramic disc capacitor series from Jackcon offers cost effective solution in a compact radial through-hole package. These DC capacitors feature capacitance between 100pF and 47nF with an insulation resistance of 10000MΩ minimum at 100Vdc for 1 minute. They are available in a selection of dielectric materials – Y5P, Y5T, Y5U or Y5V, dissipation factor of either ≤2.5% or ≤5% (depending on the model), tolerances range from ±10% to +80% , TCs and other properties are available. The operating temperature of the HI-K DC capacitors is between -25°C and +85°C.

  • DC ceramic disc capacitors
  • Selection of dielectric materials offering range of properties – Y5P, Y5T, Y5U or Y5V
  • Available in capacitance ratings between 100pF and 47nF
  • Dissipation factor ≤2.5% (Y5P, Y5T and Y5U models) or ≤5% (Y5V models)
  • Tolerances of ±10%, ±20% or -20% to +80%
  • TCR ±10% max (Y5P), -30% max to +22%(y5T), -56% max to +22%(Y5U) or -80% max to +30%(Y5V)
  • Working voltage of 50Vdc to 20kVdc
  • Insulation resistance of at least 10,000MΩ min at 100Vdc over 1 minute
  • Temperature range between -25°C and +85°C
  • Through-hole radial leaded capacitors

Typical applications for the Jackcon HI-K DC disc ceramic capacitor series include:

  • Coupling
  • By-passing

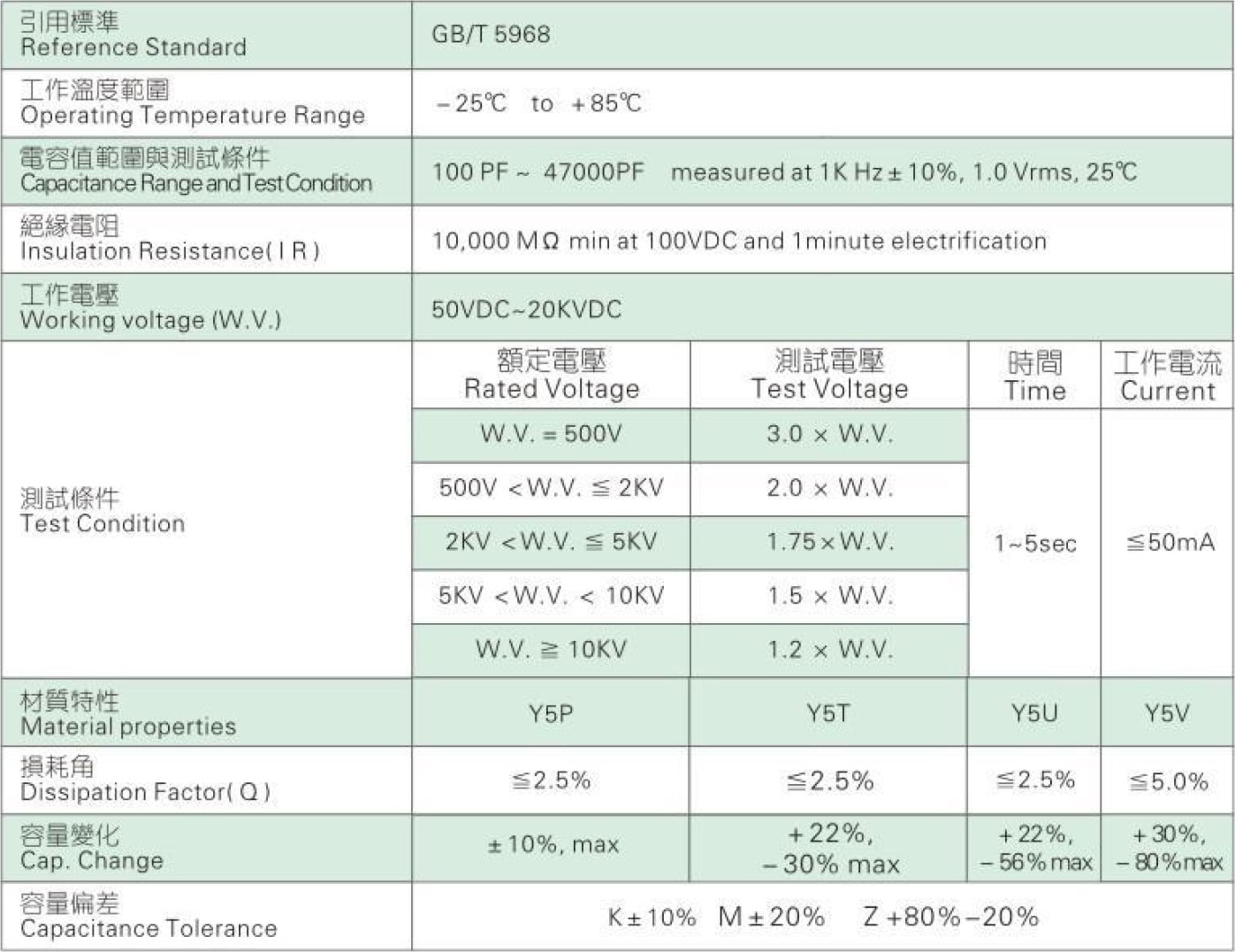

The below table gives the specifications overview for each capacitor model available within the HI-K DC capacitor series:

Jackcon HI-K Specifications

The reference test temperature is 25°C


Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

, , ,

Additional Features

DC ceramic disc capacitorDissipation factor ≤2.5% (Y5P, Y5T and Y5U models) or ≤5% (Y5V models)Insulation resistance of  10,000 MΩ min at 100Vdc over 1 minute

Series / Model

Tolerance

, ,

Voltage Rating

,

Temperature Range (°C)

Package / Size

Capacitance Value

Jackcon HI-K DC Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Jackcon HI-K DC series ceramic disc capacitor datasheet
Jackcon DC capacitor series dimension information
Jackcon DC capacitor series taping specification
Jackcon ceramic capacitors code construction
