Jackcon T-C DC Capacitor series

  • Jackcon

Product Features

  • DC ceramic disk capacitor
  • Dissipation factor under 10.10-4 at 1Vrms and 1kH (or 1MHz)
  • Insulation resistance of 10,000 MΩ min at 100Vdc over 1 minute

Applications

Description

The T-C DC ceramic disc capacitor series from Jackcon is designed especially for low losses and high capacitance stability. These compact DC capacitors feature capacitance between 1pF and 120pF and insulation resistance of at least 10000MΩ at 100Vdc over 1 minute. They are available in either NP0 or SL dielectric materials and with a range of tolerances from ±0.25pF to ±10% . The operating temperature of the T-C range of DC capacitors is between -25°C and +85°C.

  • DC ceramic disc capacitors
  • Dielectric materials either NP0 or SL
  • Capacitance ratings available between 1pF and 120pF
  • Tolerances of ±0.25pF, ±0.5pF, ±5% or ±10%
  • Insulation resistance of at least 10000MΩ at 100Vdc over 1 minute
  • Voltage rating from 50Vdc to 20kVdc
  • TCR of ±30ppm/°C (NP0) or -1000ppm/°C to +350ppm/°C(SL)
  • Temperature range between -25°C and +85°C
  • Through-hole radial leaded capacitors

Typical applications for the Jackcon T-C DC disc ceramic capacitor series include:

  • Low losses, high capacitance stability applications
  • Applications requiring a specific TC, for example temperature compensating circuits

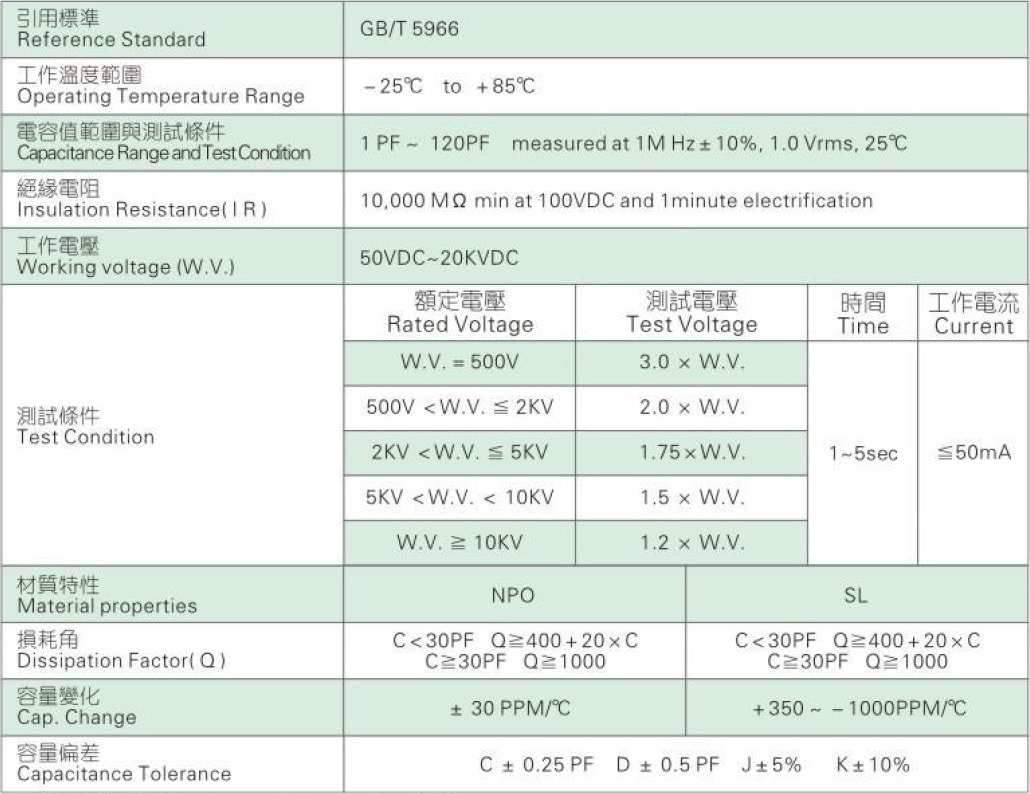

The below table gives the specifications overview for each capacitor model available within the T-C DC capacitor series:

Jackcon T-C Specifications

The reference test temperature is 25°C


Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

,

Additional Features

DC ceramic disk capacitorDissipation factor under 10.10-4 at 1Vrms and 1kH (or 1MHz)Insulation resistance of  10,000 MΩ min at 100Vdc over 1 minute

Series / Model

Tolerance

, , ,

Voltage Rating

,

Temperature Range (°C)

Package / Size

Capacitance Value

Jackcon T-C DC Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Jackcon T-C DC series ceramic disc capacitor datasheet
Jackcon DC capacitor series dimension information
Jackcon DC capacitor series taping specification
Jackcon ceramic capacitors code construction
