SRT Microcéramique X7R Capacitor Stack Series

  • SRT Microcéramique

Product Features

  • X7R capacitor stacks, ideal for input/output filtering in SMPS applications
  • Highest quality and reliability, suitable for safety-critical industries
  • Maximum dissipation factor of 2.5% at 1Vrms, 1kHz, 25°C
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less
  • Dielectric withstanding voltage of 2.5Un for 5s with 50mA maximum charging current

Applications

  • Automotive
  • Medical
  • Military
  • Scientific Instrumentation
  • Test and Measurement
  • Exempt

Description

The X7R stacked chip capacitor series from SRT Microcéramique offers switch mode power capacitor capabilities for input and output filtering, available in four variants (see Images for the drawing). The series features a wide range of options to suit any demand, including capacitance between 1.5µF to 36µF across a range of chip sizes from 1812 to 8060, a selection of ±5%, ±10% or ±20% tolerance and voltage options (50V, 100V, 200V, 250V, 300V, 500V, 1kV or 2kV). As with all SRT-MC components, the X7R capacitor stacks are popular in safety-critical industries thanks to their excellent quality and reliability. Their operating temperature is between -55°C and +125°C.

  • Ceramic chip capacitor stacks

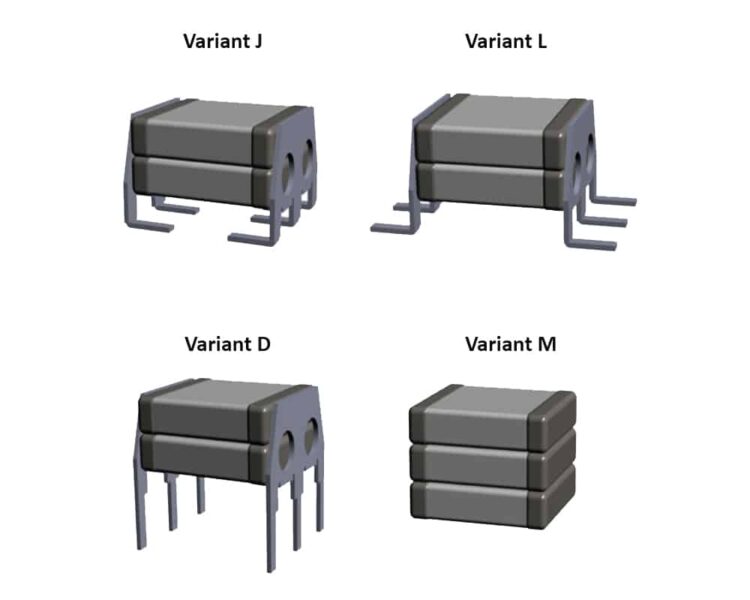

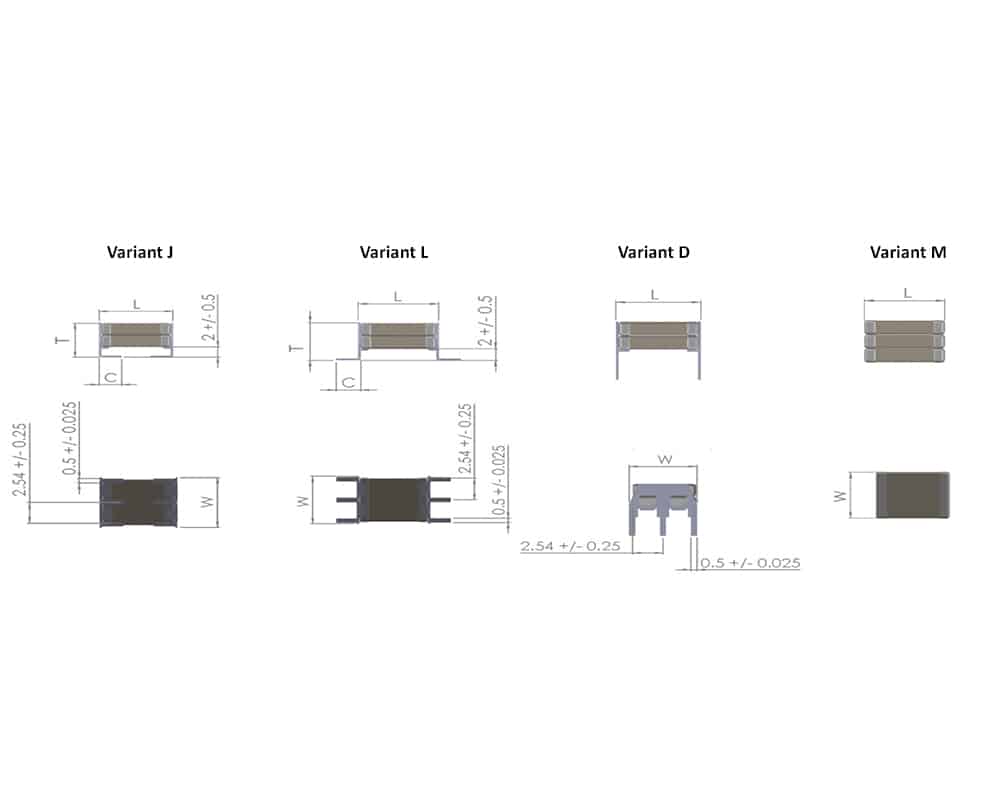

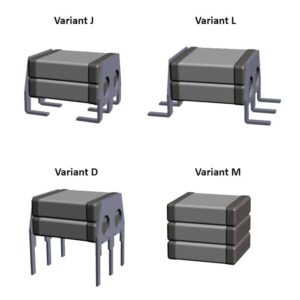

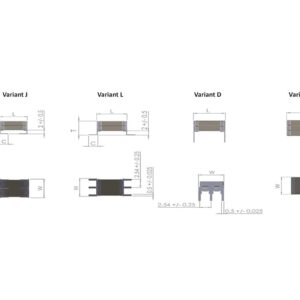

  • Four variants available – J, L, D and M. See images for the drawing and dimensions
  • Available in capacitance ratings between 1.5µF to 36µF
  • Available in standard chip sizes from 1812 to 8060
  • Dissipation factor of 2.5% maximum at 1Vrms, 1kHz and 25°C
  • Temperature Coefficient of ±15% with 0Vdc applied
  • Selection of Voltage ratings: 50V, 100V, 200V, 250V, 300V, 500V, 1kV or 2kV
  • Selection of tolerances: ±5%, ±10% and ±20%
  • Temperature range between -55°C and +125°C

While this capacitor series offers a number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please contact us to discuss the custom solutions available.

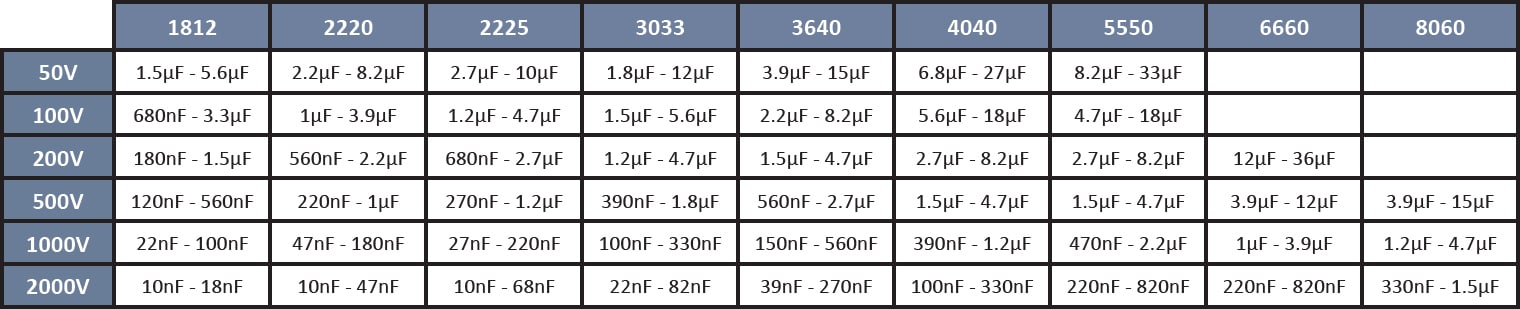

The below table gives the specifications overview for each capacitor model available within the X7R capacitor stack series:

SRT Microcéramique X7R Capacitor Stacks



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

Additional Features

X7R capacitor stacks, ideal for input/output filtering in SMPS applicationsHighest quality and reliability, suitable for safety-critical industriesMaximum dissipation factor of 2.5% at 1Vrms, 1kHz, 2

Tolerance

, ,

Temperature Range (°C)

Package / Size

, , , , , , , ,

Voltage Rating

, , , , ,

RoHS Compliant Product – SRT Microceramique

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

SRT Microceramique X7R Capacitor Stacks Ordering Info

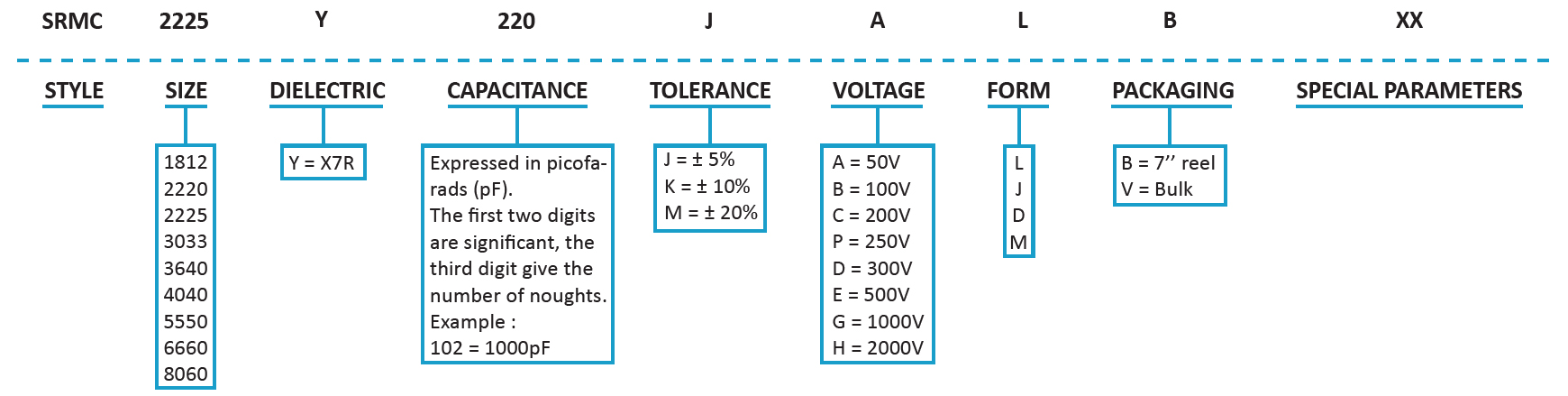

Below is an example of the part number breakdown for the SRT Microcéramique's series of X7R capacitor stacks :

SRT Microcéramique X7R Capacitor Stacks ordering info

SRT Microceramique X7R Capacitor Stacks Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
SRT Microcéramique X7R capacitor stack series datasheet
SRT Microcéramique's Microflex – Innovative flexible termination option for chip capacitors
