SRT Microcéramique SMD Low Inductance Class II Capacitors

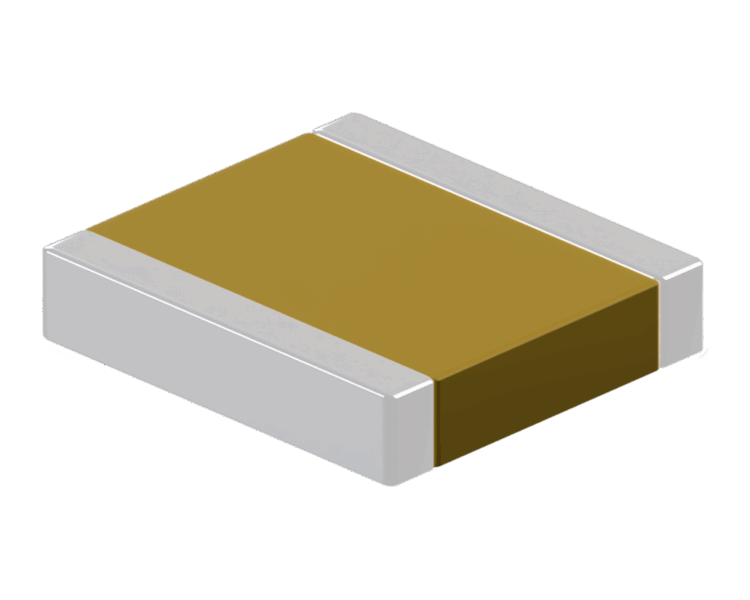

SRT Microcéramique’s SMD Low Inductance Capacitors Class II are advanced multilayer ceramic capacitors (MLCCs) engineered to deliver high-speed energy transfer and superior performance in compact surface-mount packages. Utilizing an inverted geometry design, these capacitors significantly reduce equivalent series inductance (ESL) by up to 60% compared to standard MLCCs, making them ideal for applications requiring rapid charge and discharge cycles, such as semiconductor power delivery and high-frequency filtering.

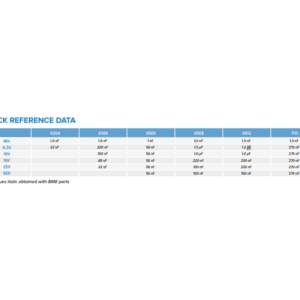

These capacitors are available in capacitance values ranging from 1.0 nF to 1.5 µF, and voltage ratings from 6.3 V up to 50 V, offering engineers flexibility in circuit design for both low and moderate voltage conditions. The capacitors operate reliably in a wide temperature range of -55°C to +125°C, with dielectric options including X7R (±15% with 0Vdc applied) and BX (+15%/-25% at rated voltage), ensuring stable performance across varying environmental conditions.

Thanks to their high volumetric efficiency, these capacitors offer greater capacitance in smaller footprints, supporting the growing demand for miniaturization in modern electronics. In addition, they feature stable performance characteristics under varying voltage and frequency conditions, ensuring consistent operation in applications such as power supply smoothing, battery management systems, and audio circuits.

Key Features for SMD Low Voltage Class II Capacitor:

• Capacitance range: 1.0 nF to 1.5 µF
• Voltage ratings: 6.3 V to 50 V
• Dielectric Options: X7R (±15% with 0Vdc applied), BX (+15%/-25% at rated voltage)
• Operating temperature: -55°C to +125°C
• Dissipation Factor: ≤ 2.5% at 1 kHz for C ≥ 100 pF
• Insulation Resistance: 10⁵ MΩ or 1000 Ω-Farad (25°C); 10⁴ MΩ or 100 Ω-Farad (125°C)
• Inverted geometry reduces the ESL up to 60% to standard MLCC
• Tested in accordance with CECC 32100 and AEC-Q200
• CECC 30700 and NFC 83-132 compliant

* Custom voltage, package size, capacitance value on request.

Typical Applications for the SMD Low Voltage N2T Capacitor:

• High-Speed Energy Transfer: Ideal for semiconductor applications requiring rapid charge and discharge cycles.
• Filtering: Effective in noise suppression and signal smoothing in power supplies and signal lines.
• Decoupling: Provides stable voltage supply by minimizing voltage fluctuations.
• Coupling: Facilitates AC signal transmission between different stages of electronic circuits.

SRT Microcéramique , based in France, is a leading manufacturer of multilayer ceramic capacitors. Known for its precision and reliability, SRT Microcéramique supplies high-performance components to industries with demanding requirements. Visit SRT Microceramique for more information.
