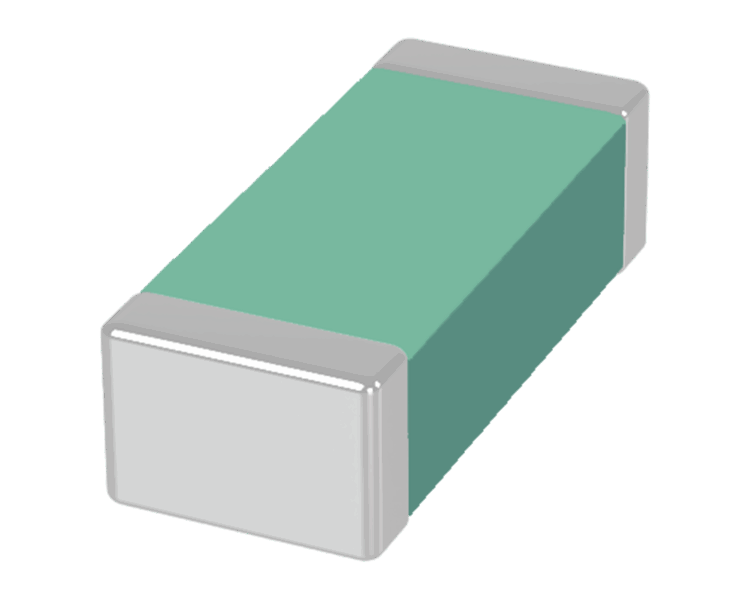

SRT Microcéramique SMD Low Voltage Class I Capacitors

SRT Microcéramique’s SMD Low Voltage Class I Capacitors offer precision and performance for engineers requiring ultra-stable electrical characteristics across temperature and frequency. These capacitors utilizes Class I dielectrics (NP0) known for exceptionally low capacitance drift, making them ideal for high-reliability and frequency-sensitive applications. Available in capacitance values from 0.1pF to 820nF and voltage ratings ranging from 10V to 1000V, these MLCCs maintain their specified performance even under varying electrical and thermal conditions.

Engineered for low dissipation factors (≤0.1%), high insulation resistance (up to 105 MΩ at 25°C or 1000 Ohm-Farad), and tight tolerances down to ±0.1pF, these capacitors are built for environments where low loss and high stability are essential. The Class I dielectric materials used in this series ensure nearly zero aging rates and excellent frequency response, making them particularly suitable for timing circuits, filters, and RF applications.

Designed in SMD packages and tested to CECC 32100 standards, these components offer high thermal stability and mechanical reliability, with an operating temperature range from -55°C to +125°C. For mission-critical designs, AEC-Q200-compliant high-reliability versions can also be provided upon request.

Key Features for SMD Low Voltage Class I Capacitor:

• Capacitance range: 0.1 pF to 820 nF
• Voltage ratings: 10V to 1000V
• Operating temperature: -55°C to +125°C
• Temperature Coefficient: ± 30ppm with 0Vdc applied
• Ultra stable temperature compensating class I ceramic
• Tested in accordance to CECC 32100 and AEC-Q200
• Available in stack or radial
• All PME SMD available in non magnetic

* Custom voltage, package size, capacitance value on request

Typical Applications for the SMD Low Voltage Class I Capacitor:

• Telecommunications: High-frequency circuits, impedance matching, and signal filtering
• Automotive Electronics: Advanced driver-assistance systems (ADAS), sensors, engine control units (ECUs)
• Aerospace & Defense: RF communication modules, avionics
• Medical Devices: High-precision signal processing, diagnostic imaging systems
• Consumer Electronics: Audio tuning circuits, mobile RF circuits, GPS modules

SRT Microcéramique , based in France, is a leading manufacturer of multilayer ceramic capacitors. Known for its precision and reliability, SRT Microcéramique supplies high-performance components to industries with demanding requirements. Visit SRT Microceramique for more information.
