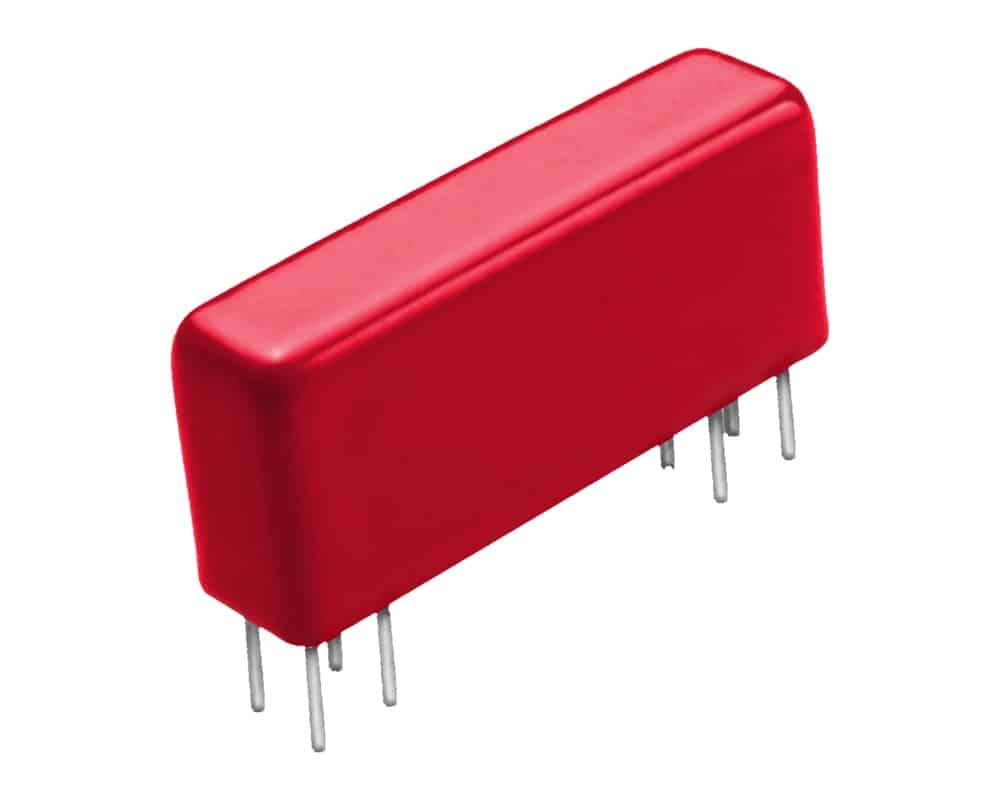

Coto 2332 Series

  • Coto Technology

Product Features

  • Surface-mount multi-pole reed relays
  • High insulation resistance of 1012Ω minimum
  • Switching current 0.5A
  • Optional electrostatic or coaxial shielding
  • Magnetically shielding steel shell
  • Temperature range −20°C to +85°C

Applications

  • Compliant

Description

The 2332 surface-mount multi-pole reed relay series from Coto features available coil voltage options of 5VDC and 12VDC with a switching voltage of 200V and switching current of 0.5A. The 2332 series is designed to offer the densest packaging available in a multi-pole reed relay. Magnetically shielding steel shell with optional coaxial shield and electrostatic shield. They have hermetically sealed contacts for long life and high reliability. The 2332 series are available with custom pin-outs as well as custom designs to meet particular applications.

  • Surface-mount reed relay
  • Nominal coil voltage options of 5VDC and 12VDC
  • Contact form of 2A
  • Switching voltage of 200V
  • Dielectric strength of 250VDC
  • Contact rating 10W
  • Switching current 0.5A
  • High insulation resistance of 1012Ω minimum
  • Temperature range −20°C to +85°C
  • Pico package size
  • Optional coaxial or electrostatic shielding available

Custom pin-outs as well as custom designs are available to meet particular applications.

For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet in the Technical Library tab.

Specifications

Weight 0.00000 kg
Dimensions 20.57 × 5.33 × 9.70 mm
Additional Features

Surface-mount multi-pole reed relaysHigh insulation resistance of 1012Ω minimumSwitching current 0.5AOptional electrostatic or coaxial shieldingMagnetically shielding steel shellOperating temperatur

Series / Model

Coil Voltage

,

Contact Rating

Shielding

, ,

Dielectric Strength

Contact Form

Switching Voltage

RoHS Compliant Product – Coto

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Coto 2332, 2333, 2341 and 2342 Series Technical Library
