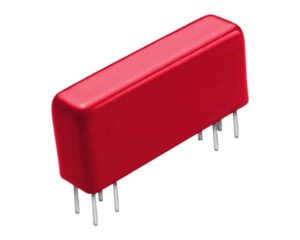

The 2342 surface-mount multi-pole reed relay series from Coto features available coil voltage options of 5VDC and 12VDC with a switching voltage of 100V and switching current of 0.25A. The 2342 series is designed to offer the densest packaging available in a multi-pole reed relay. Magnetically shielding steel shell with optional coxial shield and electrostatic shield. They have hermetically sealed contacts for long life and high reliability. The 2342 series are available with custom pin-outs as well as custom designs to meet particular applications.
Surface-mount multi-pole reed relay
Nominal coil voltage options of 5VDC and 12VDC
Contact form of 2C
Switching voltage of 100V
Dielectric strength of 200VDC
Contact rating 3W
Switching current 0.25A
High insulation resistance of 109Ω minimum
Temperature range −20°C to +85°C
Pico package size
Custom pin-outs as well as custom designs are available to meet particular applications.
For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet in the Technical Library tab.
This product is available fully compliant to the RoHS EU directive 2011/65/EU.
Coto 2332, 2333, 2341 and 2342 Series Technical Library
