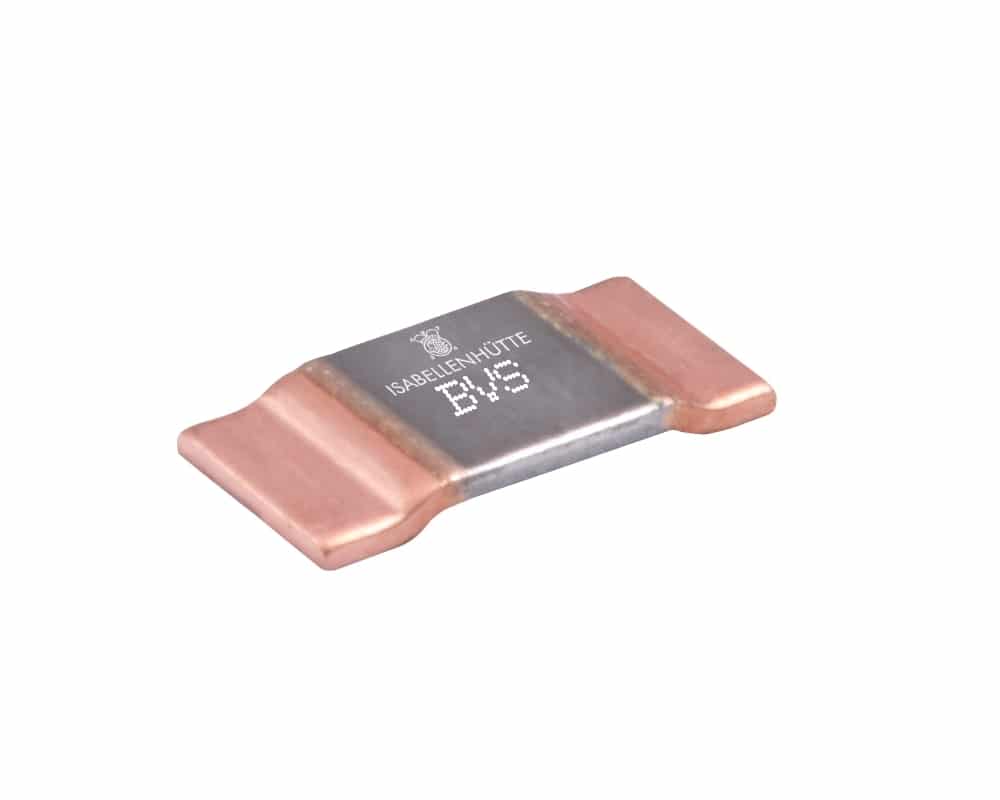

Current Sensing Precision Resistor

Isabellenhütte BVS Series

  • Current sensing resistor
  • Surface-mount 3920 chip size
  • Resistance range from 0.0002Ω to 0.003Ω
  • Tolerances of ±1.0% and ±5.0%
  • TCR value from ±50 ppm/°C
  • Power rating up to 12W (at 70°C)
  • Temperature range from -65°C to +170°C
  • Compliant
Datasheet
Any questions, contact us?
Why buy from Rhopoint?
Frequently Asked Questions
Application Notes

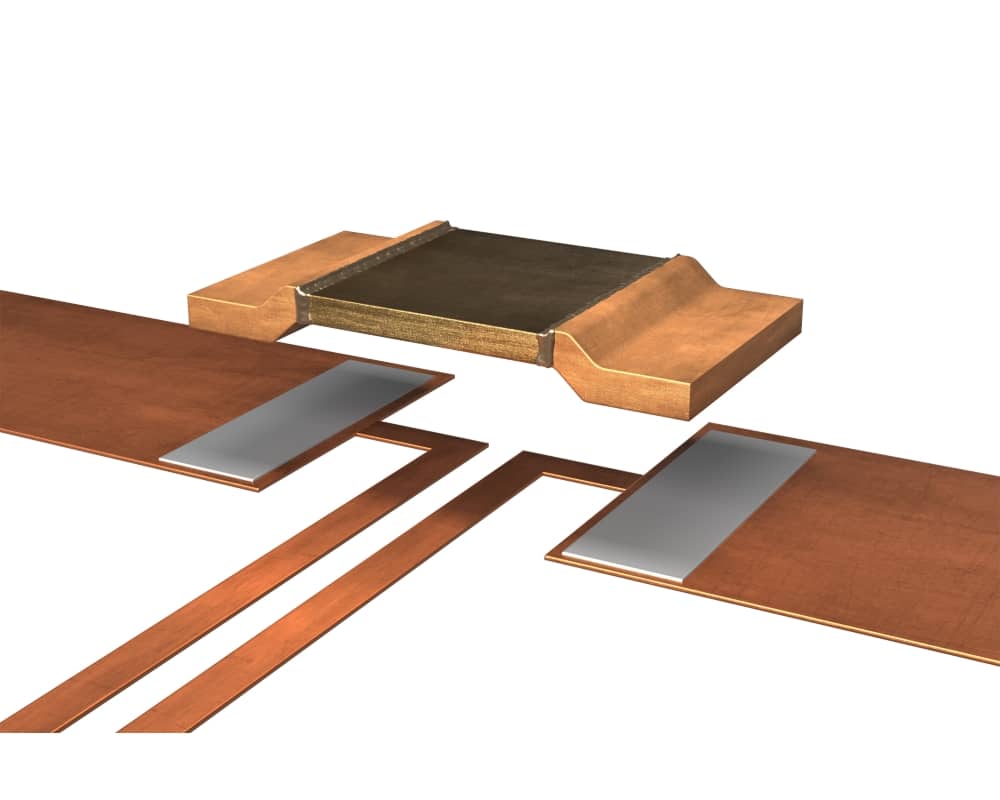

The BVS current sensing precision resistor series from Isabellenhütte has a chip size of 3920 with heavy copper connections ideally suited for mounting on DBC substrate. The available resistance range is from 0.0002Ω to 0.005Ω, with a TCR from ±50 ppm/°C. The BVS series from Isabellenhütte offers a continuous current load up to 160A (0.0002Ω), with excellent long term stability and is AEC-Q200 qualified.

  • Current sensing resistor
  • Continuous current load up to 160A (0.0002Ω)
  • Surface-mount 3920 chip size
  • Resistance values from 0.0002Ω to 0.005Ω
  • TCR from <±50 ppm/°C (+20°C to +60°C)
  • Temperature range from -65°C to +170°C
  • Tolerance ±1.0% and ±5.0%
  • Excellent long term stability
  • Power rating up to 12W at 70°C
  • Maximum solder temperature up to 350°C for 30 seconds
  • AEC-Q200 qualified
  • Stability of <0.5 % (TK=100 °C) / <1.0 % (TK=130 °C) (at rated power, deviation after 2000h)



Typical applications for the BVS current sensing precision resistor series include:

  • High current applications for the automotive market
  • Current sensor for power hybrid applications
  • Frequency converters and power modules

Isabellenhütte BVS Series Specification Table

Product Ordering CodeResistance Value*Tolerance*TCRPower rating (P70°C)Internal heat resistanceMaterial Type
BVS-Z-R00020.2mΩ±1% / ±5%±200 ppm/°C12W3°C/W (Rthi)ZERANIN®30
BVS-M-R00030.3mΩ±1% / ±5%±150 ppm/°C10W4.5°C/W (Rthi)MANGANIN®
BVS-M-R00050.5mΩ±1% / ±5%±70 ppm/°C9W8°C/W (Rthi)MANGANIN®
BVS-M-R00070.7mΩ±1% / ±5%±60 ppm/°C8W11°C/W (Rthi)MANGANIN®
BVS-M-R0011mΩ±1% / ±5%<±50 ppm/°C7W15°C/W (Rthi)MANGANIN®
BVS-A-R0011mΩ±1% / ±5%<±50 ppm/°C8W9°C/W (Rthi)Aluchrom
BVS-A-R00151.5mΩ±1% / ±5%<±50 ppm/°C7W12°C/W (Rthi)Aluchrom
BVS-A-R0022mΩ±1% / ±5%<±50 ppm/°C6W16°C/W (Rthi)Aluchrom
BVS-A-R00282.8mΩ±1% / ±5%<±50 ppm/°C5W21°C/W (Rthi)Aluchrom
BVS-A-R0033mΩ±1% / ±5%<±50 ppm/°C5W22°C/W (Rthi)Aluchrom
BVS-A-R0044mΩ±1% / ±5%<±50 ppm/°C4W30°C/W (Rthi)Aluchrom
BVS-I-R0011mΩ±1% / ±5%<±50 ppm/°C8W9°C/W (Rthi)ISAOHM®
BVS-I-R0022mΩ±1% / ±5%<±50 ppm/°C6W16°C/W (Rthi)ISAOHM®
BVS-I-R0033mΩ±1% / ±5%<±50 ppm/°C5W22°C/W (Rthi)ISAOHM®
BVS-I-R0044mΩ±1% / ±5%<±50 ppm/°C4W30°C/W (Rthi)ISAOHM®
BVS-I-R0055mΩ±1% / ±5%<±50 ppm/°C3W38°C/W (Rthi)ISAOHM®
BVS-V-R0022mΩ±1% / ±5%<±50 ppm/°C5W20°C/W (Rthi)NOVENTIN®
BVS-K-R000<0.2mΩSF-copper tinned

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

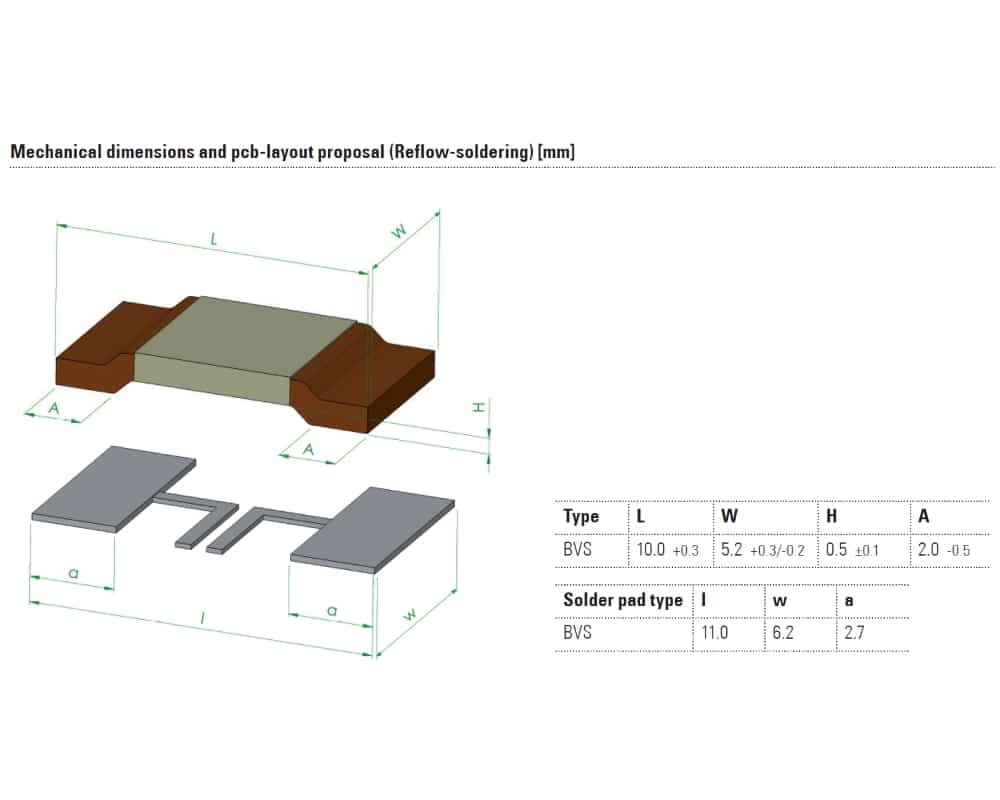

Dimensions 5.2 x 10mm
Product Type

Package / Size

,

Material Type

, , , , ,

Resistance Value

, , , , , , , , , , ,

Minimum Resistance

200µΩ
Maximum Resistance

0.005Ω
Tolerance

, ,

Temperature Coefficient

, , , ,

Current Rating

Power Rating

, , , , , , , ,

Temperature Range (°C)

-65 to +170°C
Series / Model

Due to the technical complexity nature of these components, complete specifications, performance data, dimensional information and configuration options are provided within the product datasheet.

Ordering Info

Below is the model number configuration for the BVS series from Isabellenhütte.
Ordering example: BVS-M-R0005-1.0
BVS-X-XXXXX-X.X

Series / Model (BVS)

BVS
BVS

Material Type (X)

A
Aluchrom
I
ISAOHM®
K
SF-copper tinned
M
MANGANIN®
V
NOVENTIN®
Z
ZERANIN®

Resistance Value (XXXXX)

Resistance value, in ohms, is expressed by a series of 4 or 5 characters, where the character R (ohms) designates the location of the decimal point.

Tolerance (X.X)

1.0
±1%
5.0
±5%

Isabellenhütte BVS Series - Available Resistance Values and Tolerances

Resistance ValuePart Number Value1% Tolerance 5% Tolerance
0.0002ΩR0002
0.0003ΩR0003
0.0005ΩR0005
0.0007ΩR0007
0.001ΩR001
0.0015ΩR0015
0.002ΩR002
0.0028ΩR0028
0.003ΩR003
0.004ΩR004
0.005ΩR005
<0.0002ΩR000

Product Variations

SKUMaterial TypeResistance ValueTolerance
BVS-Z-R0002-1.0ZERANIN®200µΩ±1%
BVS-Z-R0002-5.0ZERANIN®200µΩ±5%
BVS-M-R0003-1.0MANGANIN®300µΩ±1%
BVS-M-R0003-5.0MANGANIN®300µΩ±5%
BVS-M-R0005-1.0MANGANIN®500µΩ±1%
BVS-M-R0005-5.0MANGANIN®500µΩ±5%
BVS-M-R0007-1.0MANGANIN®700µΩ±1%
BVS-M-R0007-5.0MANGANIN®700µΩ±5%
BVS-A-R001-1.0Aluchrom0.001Ω±1%
BVS-A-R001-5.0Aluchrom0.001Ω±5%
BVS-M-R001-1.0MANGANIN®0.001Ω±1%
BVS-M-R001-5.0MANGANIN®0.001Ω±5%
BVS-A-R0015-1.0Aluchrom0.0015Ω±1%
BVS-A-R0015-5.0Aluchrom0.0015Ω±5%
BVS-A-R002-5.0Aluchrom0.002Ω±5%
BVS-A-R0028-1.0Aluchrom0.0028Ω±1%
BVS-A-R002-1.0Aluchrom0.002Ω±1%
BVS-A-R0028-5.0Aluchrom0.0028Ω±5%
BVS-A-R003-1.0Aluchrom0.003Ω±1%
BVS-A-R003-5.0Aluchrom0.003Ω±5%
BVS-A-R004-1.0Aluchrom0.004Ω±1%
BVS-A-R004-5.0Aluchrom0.004Ω±5%
BVS-I-R001-1.0ISAOHM®0.001Ω±1%
BVS-I-R001-5.0ISAOHM®0.001Ω±5%
BVS-I-R002-1.0ISAOHM®0.002Ω±1%
BVS-I-R002-5.0ISAOHM®0.002Ω±5%
BVS-I-R003-1.0ISAOHM®0.003Ω±1%
BVS-I-R003-5.0ISAOHM®0.003Ω±5%
BVS-I-R004-1.0ISAOHM®0.004Ω±1%
BVS-I-R004-5.0ISAOHM®0.004Ω±5%
BVS-I-R005-1.0ISAOHM®0.005Ω±1%
BVS-I-R005-5.0ISAOHM®0.005Ω±5%
BVS-V-R002-1.0NOVENTIN®0.002Ω±1%
BVS-V-R002-5.0NOVENTIN®0.002Ω±5%
BVS-K-R000SF-copper tinned0Ω JumperN/A

Isabellenhütte Video Library

We are very pleased to provide you with a range of videos, please see below for the latest content available:

VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte’s precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte’s precision and power resistors

Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Related Products

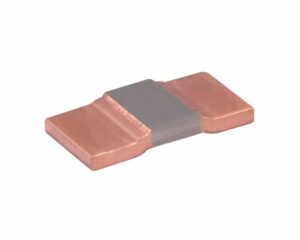

Isabellenhütte BVE Series

View Product

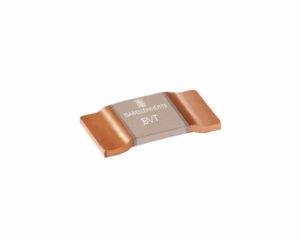

Isabellenhütte BVT Series

View Product

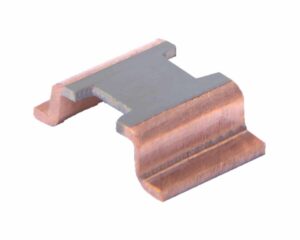

Isabellenhütte BVZ Series
