Isabellenhütte BVE Series

  • Isabellenhütte

Product Features

  • Current sensing resistor
  • Surface-mount 5930 package
  • Resistance range from 0.0001Ω to 0.003Ω
  • Tolerance ±1.0% and ±5.0%
  • TCR from <±50 ppm/°C
  • Power rating of 15W (at +70°C)
  • Temperature range from -55°C to +170°C
  • Automotive

Applications

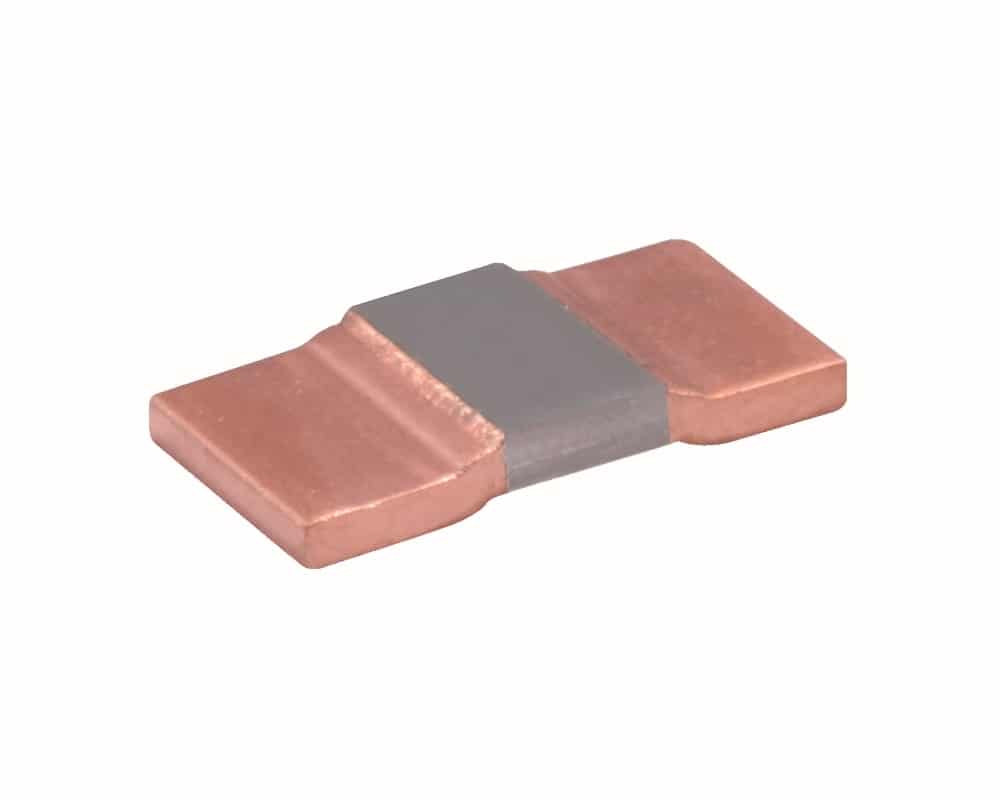

The BVE current sensing precision resistor series from Isabellenhütte is designed with large heavy copper connectors for high performance. This allows the resistor to offer a continuous current load up to 315A (0.0001Ω) with a power rating of 15W (at +70°C) or up to 10W (at +100°C). The resistance range for the BVE series is between 0.0001Ω to 0.002Ω, with a TCR from 50 ppm/°C and tolerance options of ±1.0% and ±5.0%. This is all packed in a 5930 package size.

  • Current sensing resistor
  • Surface-mount design with heavy copper connectors
  • Resistance values from 0.0001Ω to 0.003Ω
  • Tolerance of ±1.0% and ±5.0%
  • TCR of <±50 ppm/°C (+20°C to +60°C)
  • Temperature range from -55°C to +170°C
  • Power rating of 15W (at +70°C) or up to 10W (at +100°C)
  • Continuous current load up to 315A (0.0001Ω)
  • Inductance of <3nH
  • AEC-Q200 qualified
  • Excellent long term stability at rated power (deviation after 2000h) of <0.5% (TK=90 °C) and <1.0% ( TK=120 °C)



Typical applications for the BVE current sensing precision resistor series include:

  • Current sensor for power hybrid applications
  • For welding on bus bars
  • High current applications for the automotive market
  • Frequency converters and power modules

Isabellenhütte BVE Series Specification Table

Product Ordering CodeResistance ValueToleranceTCRPower rating (P100°C)Power Rating (P70°C)Material Type
BVE-Z-R00010.1mΩ±5%<±220 ppm/°C10W15WZERANIN®30
BVE-M-R00020.2mΩ±1% / ±5%<±100 ppm/°C10W15WMANGANIN®
BVE-M-R00030.3mΩ±1% / ±5%<±100 ppm/°C7W10WMANGANIN®
BVE-M-R00050.5mΩ±1% / ±5%<±75 ppm/°C6W8WMANGANIN®
BVE-A-R00050.5mΩ±1% / ±5%<±75 ppm/°C7W10WAluchrom
BVE-A-R0011mΩ±1% / ±5%<±50 ppm/°C6W9WAluchrom
BVE-A-R0022mΩ±1% / ±5%<±50 ppm/°C4W7WAluchrom
BVE-A-R0033mΩ±1% / ±5%<±50 ppm/°C3W4WAluchrom

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

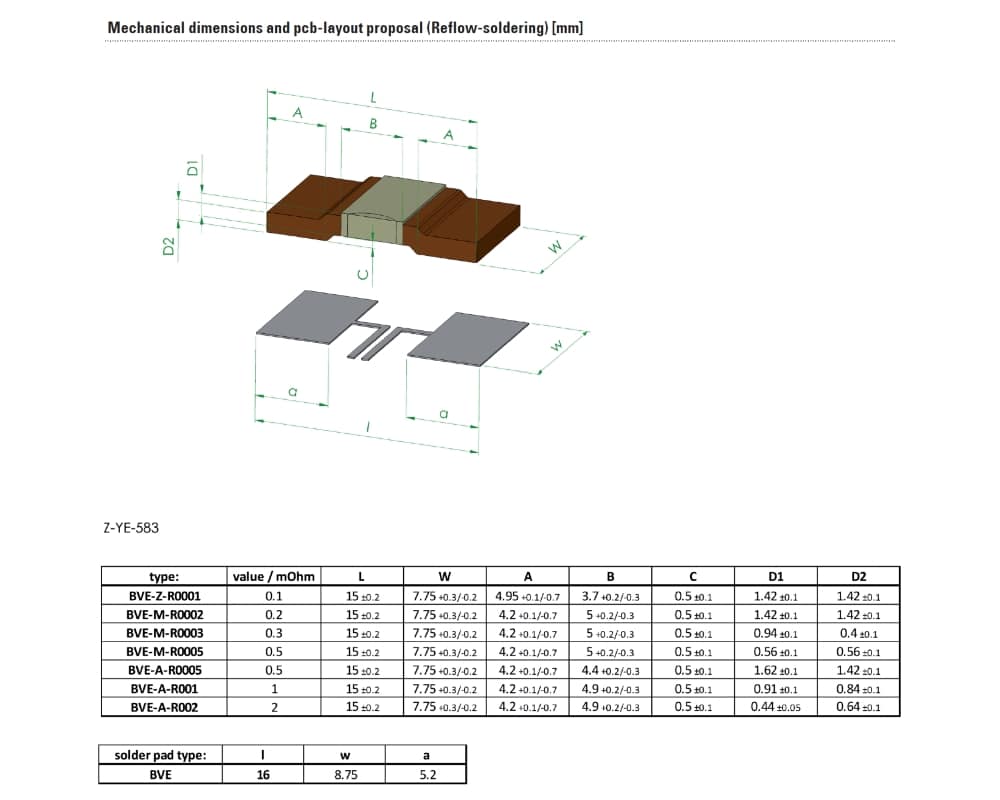

Specifications

Dimensions 7.75 x 15mm
Product Type

Package / Size

,

Material Type

, ,

Resistance Value

, , , , , ,

Minimum Resistance

Maximum Resistance

Tolerance

,

Temperature Coefficient

, , ,

Current Rating

Power Rating

,

Series / Model

Temperature Range (°C)

Isabellenhütte BVE Series Ordering Info

Below is the model number configuration for the BVE series from Isabellenhütte.

Ordering example: BVE-M-R0005-1.0
BVEXXXXXXX.X

Series / Model (BVE)

BVE
BVE

Material Type (X)

A
Aluchrom
M
MANGANIN®
Z
ZERANIN®

Resistance Value (XXXXX)

Resistance value, in ohms, is expressed by a series of 4 or 5 characters, where the character R (ohms) designates the location of the decimal point.

Tolerance (X.X)

1.0
±1%
5.0
±5%

Isabellenhütte BVE Series – Available Resistance Values and Tolerances


Resistance Value Part Number Value 1% Tolerance 5% Tolerance
0.0001Ω R0001
0.0002Ω R0002
0.0003Ω R0003
0.0005Ω R0005
0.001Ω R001
0.002Ω R002
0.003Ω R003
