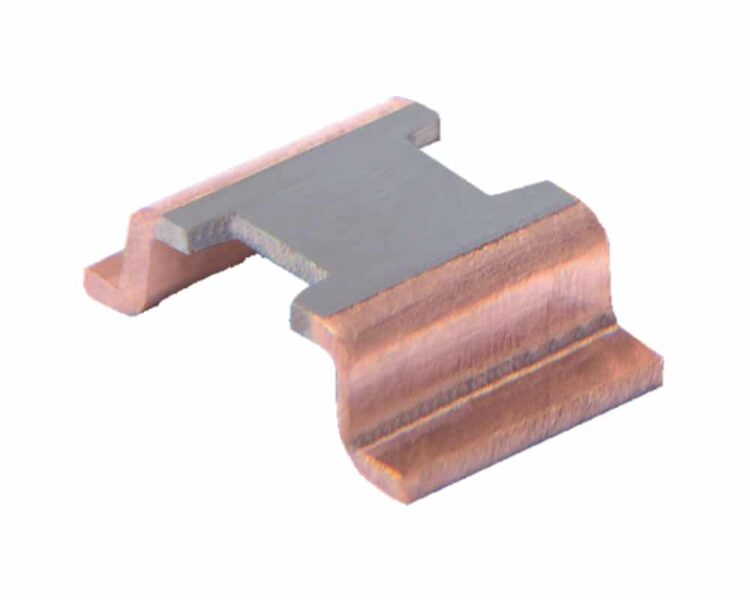

Isabellenhütte BVZ Series

Isabellenhütte BVZ Series
Isabellenhütte BVZ Series
Isabellenhütte BVZ Series
  • Isabellenhütte

Product Features

  • Current sensing resistor
  • Surface-mount 4026 chip size
  • Resistance range from 0.000525Ω to 0.003Ω
  • Tolerances of ±1.0%, ±2.0% and ±5.0%
  • TCR from <60 ppm/°C
  • Power rating up to 13W at +70°C
  • Temperature range from -65°C to +170°C

Applications

  • Automotive
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

The BVZ current sensing precision resistor series from Isabellenhütte offers 2-terminal surface-mount connection technology for current sensing applications. These resistors are ideally suited for mounting on DBC/IMS substrate. Developed with a high application temperature range of -65° to +170°, they offer power rating up to 13W and resistance values between 0.525mΩ and 3mΩ. The BVZ series from Isabellenhütte offers excellent long term stability.

  • Current sensing resistor
  • Surface-mount 4026 chip size
  • Resistance values from 0.000525Ω to 0.003Ω
  • TCR from <60 ppm/°C
  • Application temperature range from -65°C to +170°C
  • Tolerances of ±1.0%, ±2.0% and ±5.0% available
  • Excellent long term stability
  • Power rating up to 13W at +70°C
  • Max. solder temperature of up to 350°C/20 min. (with hydrogen under vacuum)
  • Inductance of <3nH
  • Stability of <0.5% (TK=100°C) / <1.0% (TK=130°C) (at rated power, deviation after 2000h)



Typical applications for the BVZ current sensing precision resistor series include:

  • High current applications for the automotive market
  • Current sensor for power hybrid applications
  • Frequency converters and power modules

Isabellenhütte BVZ Series Specification Table

Product Ordering CodeResistance ValueToleranceTCRPower rating (P70°C)Power rating (P100°C)Material Type
BVZ-Z-R0005250.525mΩ±1% / ±5%<±320 ppm/°C13W8WZERANIN®30
BVZ-M-R000770.77mΩ±1% / ±5%<±230 ppm/°C10W8WMANGANIN®
BVZ-I-R0011mΩ±1% / ±5%<±150 ppm/°C7W5WISAOHM®
BVZ-I-R00151.5mΩ±1% / ±5%<±110 ppm/°C6W4WISAOHM®
BVZ-I-R00242.4mΩ±1% / ±5%<±60 ppm/°C5W3WISAOHM®
BVZ-I-R0033mΩ±1% / ±5%<±60 ppm/°C5W3WISAOHM®

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

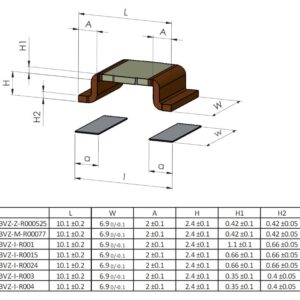

Dimensions 10.1 × 6.6 mm
Series / Model

Product Type

Package / Size

,

Material Type

, ,

Resistance Value

, , , , ,

Minimum Resistance

Maximum Resistance

Tolerance

, ,

Temperature Coefficient

, , , ,

Power Rating

, , , , , , ,

Temperature Range (°C)

Isabellenhütte BVZ Series Ordering Info

Below is the model number configuration for the BVZ series from Isabellenhütte.

Ordering example: BVZ-I-R0024-1.0
BVZXXXXXXXXX.X

Series / Model (BVZ)

BVZ
BVZ

Material Type (X)

I
ISAOHM®
M
MANGANIN®
Z
ZERANIN®

Resistance Value (XXXXXXX)

Resistance value, in ohms, is expressed by a series of 4, 5, 6 or 7 characters, where the character R (ohms) designates the location of the decimal point.

Tolerance (X.X)

1.0
±1%
2.0
±2%
5.0
±5%

Isabellenhütte BVZ Series – Available Resistance Values and Tolerances


Resistance Value Part Number Value 1% Tolerance 2% Tolerance 5% Tolerance
0.000525Ω R000525
0.00077Ω R00077
0.001Ω R001
0.0015Ω R0015
0.0024Ω R0024
0.003Ω R003
