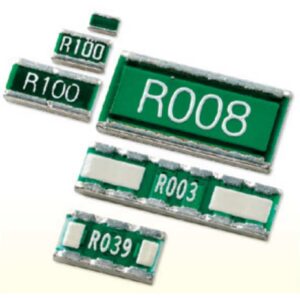

Susumu PRL1632 Series

  • Susumu

Product Features

  • Surface mount long sided terminal metal foil low resistance chip resistor
  • Temperature range of −55°C to +125°C
  • Excellent temperature cycle resistance
  • Low noise and low ESL

Applications

The PRL1632 series of thin film low resistance chip resistors with long sided terminals from Susumu offer an innovative structure that takes heat dissipation into consideration. This structure suppresses the surface temperature, enabling the small chip sizes as well as a reduction of the influence on surrounding components, excellent temperature cycle resistance, low ESL and low noise. The Susumu PRL1632 series have a resistance range of 0.005Ω to 0.1Ω and tolerance values available of ±0.5% (D), ±1% (F) and ±2% (G).

  • Long sided terminal thin film low resistance chip resistor
  • Resistance values range from 0.005Ω to 0.1Ω
  • Resistance value series E-24
  • Power rating of 1W
  • Tolerance values available are ±0.5% (D), ±1% (F) and ±2% (G) (depending on the resistance value required)
  • TCR values available are ±50 ppm°C, ±100 ppm/°C, 0∼+200 ppm°C and 0∼+350 ppm°C (depending on the resistance value required)
  • Chip size 1206
  • Temperature range of −55°C to +125°C



The Susumu PRL1632 series of long sided terminal thin film low resistance chip resistors are ideal for the following applications:

  • Automotive electronics
  • Industrial machines
  • PC power sources
  • Adapters
  • Inverters



The below table gives the full specifications of the Susumu PRL Series including the PRL1632:

Susumu PRL1632 Specifications



Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg
Dimensions 0.50 x 3.20 x 1.60mm
Maximum Resistance

Minimum Resistance

Power Rating

Resistance Value

, , , , , , ,

Series / Model

Temperature Coefficient

,

Tolerance

, ,
