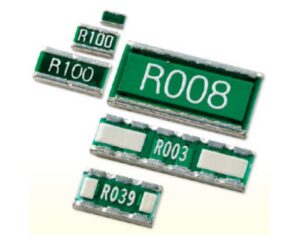

Susumu PRL3264 Series

Susumu PRL1632 Series
Susumu PRL1632 Series
Susumu PRL1632 Series
  • Susumu

Product Features

  • Surface mount long sided terminal metal foil low resistance chip resistor
  • Temperature range of −55°C to +125°C
  • Excellent temperature cycle resistance
  • Low noise and low ESL

Applications

  • Motion Control
  • Power Control
  • Test and Measurement
  • Compliant

Description

The PRL3264 series of long sided terminals thin film low resistance chip resistors from Susumu offer an innovative structure that takes heat dissipation into consideration. This structure suppresses the surface temperature, enabling small chip sizes as well as a reduction of the influence on surrounding components, excellent temperature cycle resistance, low ESL and low noise. The Susumu PRL3264 series has a resistance range of 0.003Ω to 0.1Ω and tolerance values available of ±0.5% (D) ±1% (F), ±2% (G) and ±5% (J).

  • Long sided terminal thin film low resistance chip resistor
  • Resistance values range from 0.003Ω to 0.1Ω
  • Resistance value series E-24
  • Power rating of 2W
  • Tolerance values available are ±0.5% (D), ±1% (F) ±2% (G) and ±5% (J) (depending on the resistance value required)
  • TCR values available are ±50 ppm°C, ±100 ppm/°C, 0∼+200 ppm°C and 0∼+350 ppm°C (depending on the resistance value required)
  • Chip size 2512
  • Temperature range of −55°C to +125°C



The Susumu PRL3264 series of long sided terminal thin film low resistance chip resistors are ideal for the following applications:

  • Automotive electronics
  • Industrial machines
  • PC power sources
  • Adapters
  • Inverters



The below table gives the full specifications of the Susumu PRL Series including the PRL3264:

Susumu PRL3264 Specifications



Specifications

Weight 0.00000 kg
Dimensions 3.20 × 6.40 × 0.50 mm
Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

, , ,

Power Rating

Resistance Value

, , , , , , , , ,

Temperature Coefficient

,
