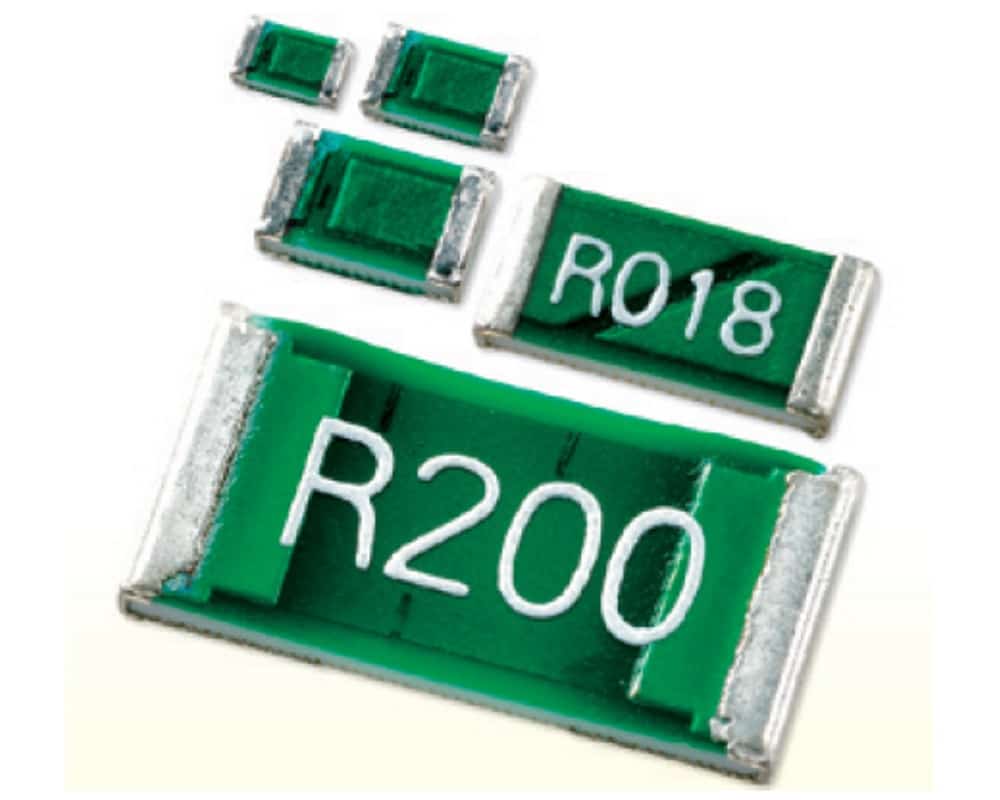

Susumu RL0510 Series

  • Susumu

Product Features

  • Low ohmic thin-film chip resistor
  • short sided terminal design with a 0402 chip size
  • Resistance values from 0.001Ω to 47Ω
  • Temperature range from −55°C to +125°C
  • Tolerances of ±1% (F), ±2% (G) or ±5% (J)
  • Power rating of as low as 0.125W

Applications

The RL0510 low ohmic thin film resistor is part of the RL series of short-sided terminal metal foil low resistance chip resistors from Susumu. The RL0510 model has a 0402 chip size and is available in E-24 resistance values between 0.001Ω to 47Ω. Susumu’s metal foil technology offers a power rating as low as 0.125W as well as a very stable TCR, down to 0 ~ +200 ppm/°C at low resistances. These resistors have been developed to withstand high operating temperatures of −55°C to +125°C. This series utilises an innovative structure that takes heat dissipation into consideration. This structure suppresses the surface temperature, enabling small chip sizes as well as a reduction of the influence on surrounding components.

  • Low ohmic thin film surface-mount chip resistor
  • Short sided terminal design with an 0402 chip size
  • Resistance values from 0.001Ω to 47Ω
  • Resistance value series of E-24
  • Tolerances of ±1% (F), ±2% (G) or ±5% (J)
  • TCR down to 0 ~ +200 ppm/°C
  • Power rating of as low as 0.125W
  • Temperature range from −55°C to +125°C

The Susumu RL0510 Low ohmic chip resistor is ideal for the following applications:

  • Automotive electronics
  • Industrial machines
  • PC power sources
  • Adapters
  • Inverters


Susumu RL Series Ordering Info

Model No.Power ratingTCRResitance range / TolerancePackaging quantity
RL05101/8 W0~+350 ppm/°C (T)50mΩ to 100mΩ ±1% (F)
50mΩ to 100mΩ ±2% (G)
T10 (10,000pcs)
(0402 Chipsize)1/6 W0~+200 ppm/°C (S)100mΩ to 4.7Ω ±1% (F)
100mΩ to 4.7Ω ±2% (G)
T10 (10,000pcs)
1/6 W0~+200 ppm/°C (S)5.1Ω to 47Ω ±1% (F)
5.1Ω to 47Ω ±2% (G)
T10 (10,000pcs)
RL08161/4 W0~+200 ppm/°C (S)20mΩ to 100mΩ ±1% (F)
20mΩ to 100mΩ ±2% (G)
20mΩ to 100mΩ ±5% (J)
T5 (5,000pcs)
(0603 Chipsize)1/4 W0~+350 ppm/°C (T)20mΩ to 100mΩ ±1% (F)
20mΩ to 100mΩ ±2% (G)
20mΩ to 100mΩ ±5% (J)
T5 (5,000pcs)
0~+100 ppm/°C (R)100mΩ to 6.8Ω ±1% (F)T5 (5,000pcs)
1/5 W0~+200 ppm/°C (S)100mΩ to 6.8Ω ±1% (F)T5 (5,000pcs)
1/5 W0~+200 ppm/°C (S)43mΩ to 91mΩ ±1% (F)
43mΩ to 91mΩ ±2% (G)
43mΩ to 91mΩ ±5% (J)
T5 (5,000pcs)
RL12201/4 W0~+200 ppm/°C (S)43mΩ to 91mΩ ±1% (F)
43mΩ to 91mΩ ±2% (G)
43mΩ to 91mΩ ±5% (J)
T5 (5,000pcs)
(0805 Chipsize)1/4 W0~+350 ppm/°C (T)10mΩ to 91mΩ ±1% (F)
10mΩ to 91mΩ ±2% (G)
10mΩ to 91mΩ ±5% (J)
T5 (5,000pcs)
1/3 W0~+100 ppm/°C (R)100mΩ to 10Ω ±1% (F)
100mΩ to 10Ω ±2% (G)
100mΩ to 10Ω ±5% (J)
T5 (5,000pcs)
1/3 W0~+200 ppm/°C (S)100mΩ to 10Ω ±1% (F)
100mΩ to 10Ω ±2% (G)
100mΩ to 10Ω ±5% (J)
T5 (5,000pcs)
1/3 W0~+200 ppm/°C (S)11Ω to 100Ω ±1% (F)
11Ω to 100Ω ±2% (G)
11Ω to 100Ω ±5% (J)
T5 (5,000pcs)
RL16321/2 W0~+100 ppm/°C (R)510mΩ bis 4.7Ω * ±1% (F)
56mΩ to 470mΩ ±1% (F)
56mΩ to 470mΩ ±2% (G)
T1 (1,000pcs)
T5 (5,000pcs)
(1206 Chipsize)1/2 W0~+200 ppm/°C (S)33mΩ to 51mΩ ±1% (F)
33mΩ to 51mΩ ±2% (G)
T1 (1,000pcs)
T5 (5,000pcs)
1/2 W0~+350 ppm/°C (T)27mΩ to 30mΩ ±1% (F)
27mΩ to 30mΩ ±2% (G)
18mΩ to 24mΩ ±2% (G)
T1 (1,000pcs)
T5 (5,000pcs)
1/2 W0~+500 ppm/°C (T)10mΩ to 16mΩ ±2% (G)T1 (1,000pcs)
T5 (5,000pcs)


* RL series with resistance tolerance 0.5% is also available. Please contact us for further details

Susumu is a leading manufacturer of thin-film and metal foil SMD resistors, covering a wide range of resistance values and applications. Specialised in the production of Low ohmic, current sensing resistors with long sided variants available for higher power applications. Please visit www.susumu.co.jp/usa/ for more information.

Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

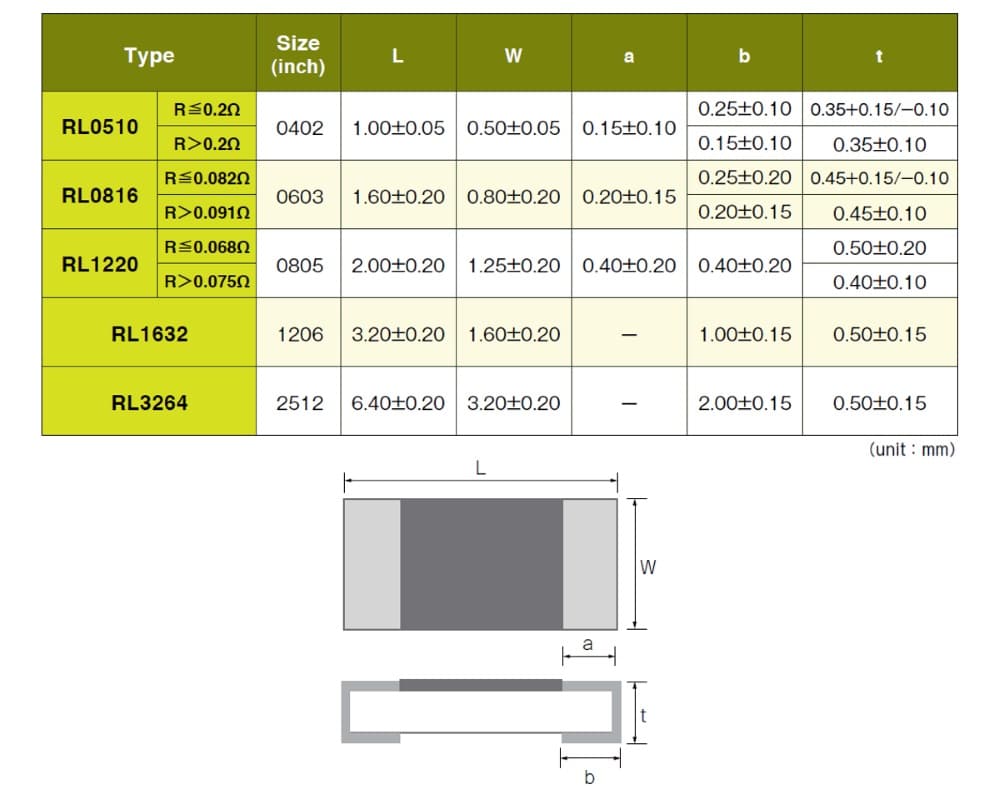

Dimensions 0.35 x 0.50 x 1.00mm
