Susumu RL1220 Series

  • Compliant
  • Susumu

Product Features

  • Low ohmic thin-film chip resistor
  • short sided terminal design with a 0805 chip size
  • Resistance values from 0.01Ω to 100Ω
  • Temperature range options of −55°C to +155°C / +175°C
  • Tolerances of ±1% (F), ±2% (G) or ±5% (J)
  • Power rating of up to 0.33W

Applications

  • Motion Control
  • Power Control
  • Test and Measurement

Description

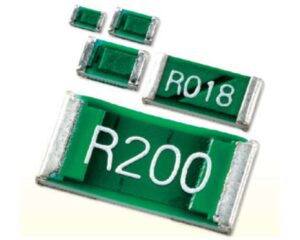

The RL1220 low ohmic thin film resistor is part of the RL series of short-sided terminal metal foil low resistance chip resistors from Susumu. The RL1220 model has a 0805 chip size and is available in E-24 resistance values between 0.01Ω to 100Ω. Susumu’s metal foil technology offers a power rating of up to 0.33W as well as a very stable TCR, down to 0 ~ +100 ppm/°C at low resistances. These resistors have been developed to withstand high operating temperatures of −55°C to +125°C. This series utilises an innovative structure that takes heat dissipation into consideration. This structure suppresses the surface temperature, enabling small chip sizes as well as a reduction of the influence on surrounding components.

  • Low ohmic thin film surface-mount chip resistor
  • Short sided terminal design with an 0805 chip size
  • Resistance values from 0.01Ω to 100Ω
  • Resistance value series of E-24
  • Tolerances of ±1% (F), ±2% (G) or ±5% (J)
  • TCR down to 0 ~ +100 ppm/°C
  • Power rating of up to 0.33W
  • Temperature range from −55°C to +125°C

The Susumu RL1220 Low ohmic chip resistor is ideal for the following applications:

  • Automotive electronics
  • Industrial machines
  • PC power sources
  • Adapters
  • Inverters


Susumu RL Series Specification Table

ModelPower ratingTCRResistance range / TolerancePackaging quantity
RL05101/8W0~+350(T)50mΩ to 100mΩ ±1% (F)
50mΩ to 100mΩ ±2% (G)
T10 (10,000pcs)
(0402 Chip Size)1/6W0~+200(S)100mΩ to 4.7Ω ±1% (F)
100mΩ to 4.7Ω ±2% (G)
T10 (10,000pcs)
1/6W0~+200(S)5.1Ω to 47Ω ±1% (F)
5.1Ω to 47Ω ±2% (G)
T10 (10,000pcs)
RL08161/4W0~+200(S)20mΩ to 100mΩ ±1% (F)
20mΩ to 100mΩ ±2% (G)
20mΩ to 100mΩ ±5% (J)
T5 (5,000pcs)
(0603 Chip Size)1/4W0~+350(T)20mΩ to 100mΩ ±1% (F)
20mΩ to 100mΩ ±2% (G)
20mΩ to 100mΩ ±5% (J)
T5 (5,000pcs)
1/5W0~+100(R)100mΩ to 6.8Ω ±1% (F)T5 (5,000pcs)
1/5W0~+200(S)100mΩ to 6.8Ω ±1% (F)T5 (5,000pcs)
1/5W0~+200(S)43mΩ to 91mΩ ±1% (F)
43mΩ to 91mΩ ±2% (G)
43mΩ to 91mΩ ±5% (J)
T5 (5,000pcs)
RL12201/4W0~+200(S)43mΩ to 91mΩ ±1% (F)
43mΩ to 91mΩ ±2% (G)
43mΩ to 91mΩ ±5% (J)
T5 (5,000pcs)
(0805 Chip Size)1/4W0~+350(T)10mΩ to 91mΩ ±1% (F)
10mΩ to 91mΩ ±2% (G)
10mΩ to 91mΩ ±5% (J)
T5 (5,000pcs)
1/3W0~+100(R)100mΩ to 10Ω ±1% (F)
100mΩ to 10Ω ±2% (G)
100mΩ to 10Ω ±5% (J)
T5 (5,000pcs)
1/3W0~+200(S)100mΩ to 10Ω ±1% (F)
100mΩ to 10Ω ±2% (G)
100mΩ to 10Ω ±5% (J)
T5 (5,000pcs)
1/3W0~+200(S)11Ω to 100Ω ±1% (F)
11Ω to 100Ω ±2% (G)
11Ω to 100Ω ±5% (J)
T5 (5,000pcs)
RL16321/2W0~+100(R)510mΩ to 4.7Ω * ±1% (F)
56mΩ to 470mΩ ±1% (F)
56mΩ to 470mΩ ±2% (G)
T1 (1,000pcs)
T5 (5,000pcs)
(1206 Chip Size)1/2W0~+200(S)33mΩ to 51mΩ ±1% (F)
33mΩ to 51mΩ ±2% (G)
T1 (1,000pcs)
T5 (5,000pcs)
1/2W0~+350(T)27mΩ to 30mΩ ±1% (F)
27mΩ to 30mΩ ±2% (G)
18mΩ to 24mΩ ±2% (G)
T1 (1,000pcs)
T5 (5,000pcs)
1/2W0~+500(T)10mΩ to 16mΩ ±2% (G)T1 (1,000pcs)
T5 (5,000pcs)


* RL series with resistance tolerance 0.5% is also available. Please contact us for further details

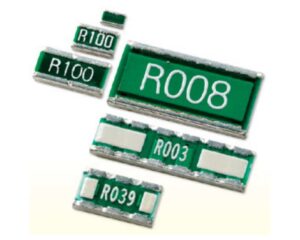

Susumu is a leading manufacturer of thin-film and metal foil SMD resistors, covering a wide range of resistance values and applications. Specialised in the production of Low ohmic, current sensing resistors with long sided variants available for higher power applications. Please visit www.susumu.co.jp/usa/ for more information.

Specifications

Weight 0.00000 kg
Dimensions 2.00 × 1.25 × 0.50 mm
Series / Model

Minimum Resistance

Maximum Resistance

Temperature Coefficient

, ,

Power Rating

,

Tolerance

, ,

Susumu RL1220 Series Resources

Product Datasheet

Supporting Manufacturer Information

Susumu RL Series Ordering Info

The RL resistor series is available with various options. The information below gives an example of the part numbering system used for these resistors and the options available.

Below is an example of the part number break down for the RL resistor series:

Susumu RL Series Ordering Information
