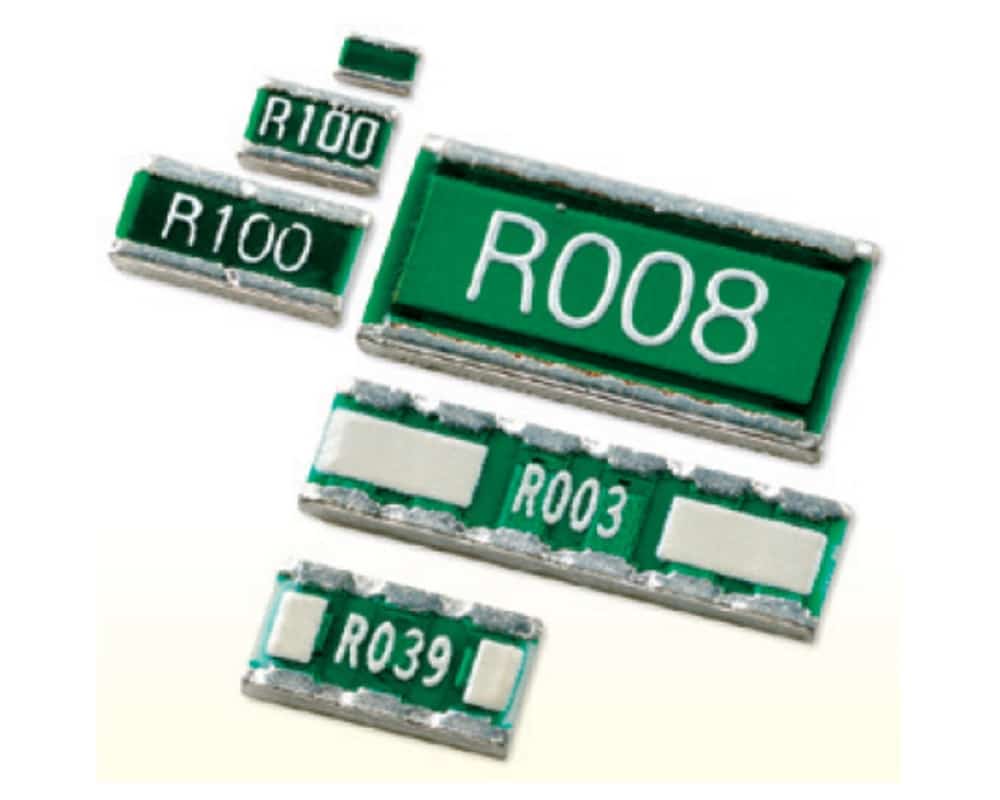

The RL3720W series of long sided terminal thin film low resistance chip resistors from Susumu utilises an innovative structure that takes heat dissipation into consideration. This structure suppresses the surface temperature, enabling small chip sizes, reduction in the influence on surrounding components, excellent temperature cycle resistance, low ESL and low noise. The Susumu RL3720W series has a resistance range of 0.001ฮฉ to 1ฮฉ and tolerance values available of ยฑ1% (F) and ยฑ2% (G), all in a 1508 chip size.
The Susumu RL3720W series of long sided terminal thin film low resistance chip resistors are ideal for the following applications:
The below table gives the full specifications of the Susumu RL Series including the RL3720W:
Weight | 0.00000 kg |
---|---|

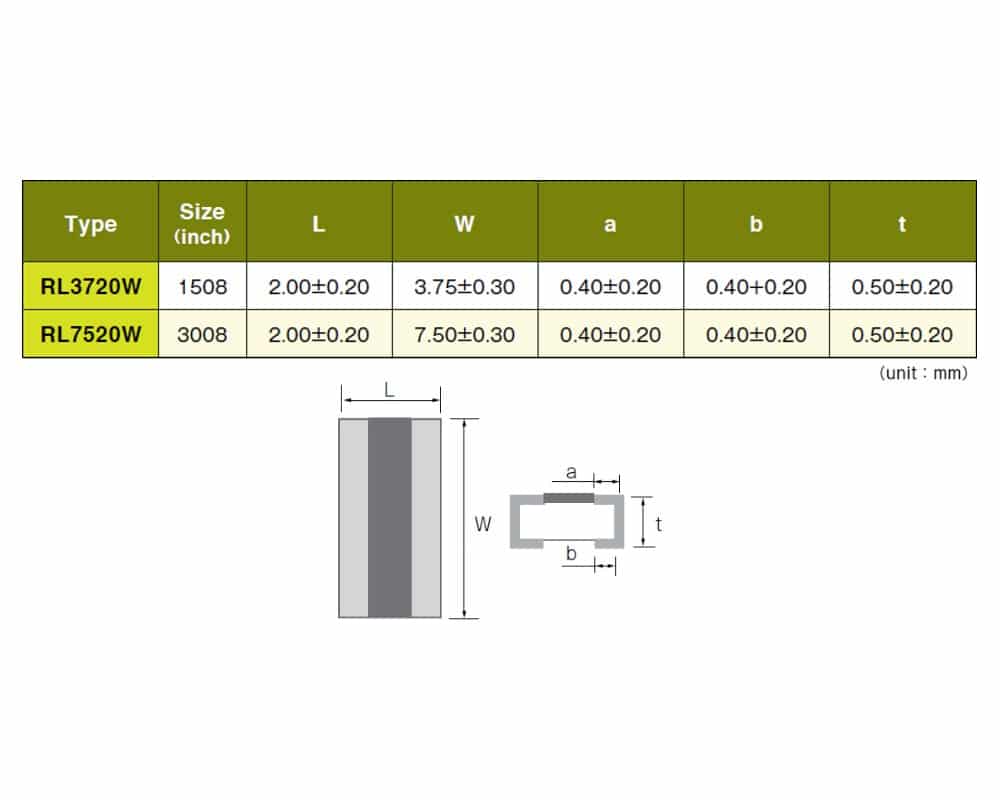

Dimensions | 0.50 x 3.75 x 2.00mm |
Maximum Resistance | 1ฮฉ |
Minimum Resistance | 0.001ฮฉ |
Power Rating | |
Resistance Value | Custom E-24 (0.01โฆ – 1โฆ), 0.001โฆ, 0.002โฆ, 0.003โฆ, 0.004โฆ, 0.005โฆ, 0.006โฆ, 0.007โฆ, 0.008โฆ, 0.009โฆ |
Series / Model | |
Temperature Coefficient | 0 to +200 ppm/ยฐC, 0 to +350 ppm/ยฐC, ยฑ50 ppm/ยฐC, ยฑ100 ppm/ยฐC |
Tolerance |
SKU | Resistance Value | Tolerance |
---|---|---|
Susumu RL3720W Series | Custom E-24 (0.01โฆ - 1โฆ) | ยฑ1% |
Susumu RL3720W Series | Custom E-24 (0.01โฆ - 1โฆ) | ยฑ2% |
Susumu RL3720W Series | 0.001โฆ | ยฑ1% |
Susumu RL3720W Series | 0.001โฆ | ยฑ2% |
Susumu RL3720W Series | 0.002โฆ | ยฑ1% |
Susumu RL3720W Series | 0.002โฆ | ยฑ2% |
Susumu RL3720W Series | 0.003โฆ | ยฑ1% |
Susumu RL3720W Series | 0.003โฆ | ยฑ2% |
Susumu RL3720W Series | 0.004โฆ | ยฑ1% |
Susumu RL3720W Series | 0.004โฆ | ยฑ2% |
Susumu RL3720W Series | 0.005โฆ | ยฑ1% |
Susumu RL3720W Series | 0.005โฆ | ยฑ2% |
Susumu RL3720W Series | 0.006โฆ | ยฑ1% |
Susumu RL3720W Series | 0.006โฆ | ยฑ2% |
Susumu RL3720W Series | 0.007โฆ | ยฑ1% |
Susumu RL3720W Series | 0.007โฆ | ยฑ2% |
Susumu RL3720W Series | 0.008โฆ | ยฑ1% |
Susumu RL3720W Series | 0.008โฆ | ยฑ2% |
Susumu RL3720W Series | 0.009โฆ | ยฑ1% |
Susumu RL3720W Series | 0.009โฆ | ยฑ2% |
