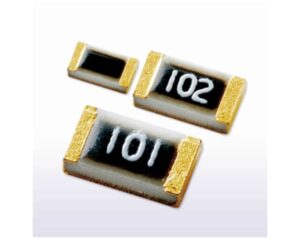

Susumu RGA1005 Series

  • Compliant
  • Susumu

Product Features

  • Surface-mount high temperature thin film chip resistor
  • Temperature range of −55°C to +230°C
  • Maximum voltage of 50V
  • Thin film structure enabling low noise and anti-sulfur
  • AEC-Q200 compliant
  • Automotive

Applications

  • Oil & Gas

Description

The RGA1005 series of high temperature thin film chip resistors from Susumu, which offer the designer an enhanced level of precision, reliability and expands on the original RG series by offering a maximum operating temperature of up to 230°C in a 0402 chip size. The RGA1005 series has a double layer of passivation to eliminate water ingress to the thin film element and has resistance values that range from 10Ω to 100KΩ. Tolerances options available are ±0.1% (B) and ±0.5% (D), TCR values of ±10 ppm/°C (N) and ±25 ppm/°C (P). This resistor is AEC-Q200 compliant and has a high operating temperature up to +230°C which makes this range suitable for automotive and downhole applications.

  • Surface-mount high temperature thin film chip resistor
  • Resistance range between 10Ω and 100kΩ available
  • Resistance value series E-24 and E-96
  • Power rating of 0.03125W
  • Tolerance values available ±0.1% (B) and ±0.5% (D)
  • TCR values available ±10 ppm/°C (N) and ±25 ppm/°C (P)
  • Maximum voltage of 50V
  • Temperature range of −55°C to +230°C
  • Thin film structure enabling low noise and anti-sulfur
  • Conductive epoxy compatible
  • Chip size of 0402
  • AEC-Q200 compliant

Susumu RGA1005 series high temperature thin film chip resistors are ideal for the following applications:

  • Automotive electronics
  • Equipment used in high temperature enviroment
  • Downhole drilling

The below table gives the full specifications of the Susumu RGA series including the RGA1005:

Susumu RGA1005 Specifications

Please see the Susumu selection guide in the Technical Library tab for the E-24 and E-96 values


Specifications

Weight 0.00000 kg
Dimensions 1.00 × 0.50 × 0.35 mm
Series / Model

Minimum Resistance

Maximum Resistance

Temperature Coefficient

,

Power Rating

Additional Features

Surface-mount high temperature thin film chip resistorOperating temperature range of −55°C to +230°C Maximum voltage of 50VThin film structure enabling low noise and anti-sulfurAEC-Q200 complian

Tolerance

,

Susumu RGA1005 Series Resources

Supporting Manufacturer Information

Susumu RGA Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Susumu RGA high temperature precision thin film chip resistor series datasheet
Susumu product selection guide and handling care information
Susumu complete catalogue







VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.
