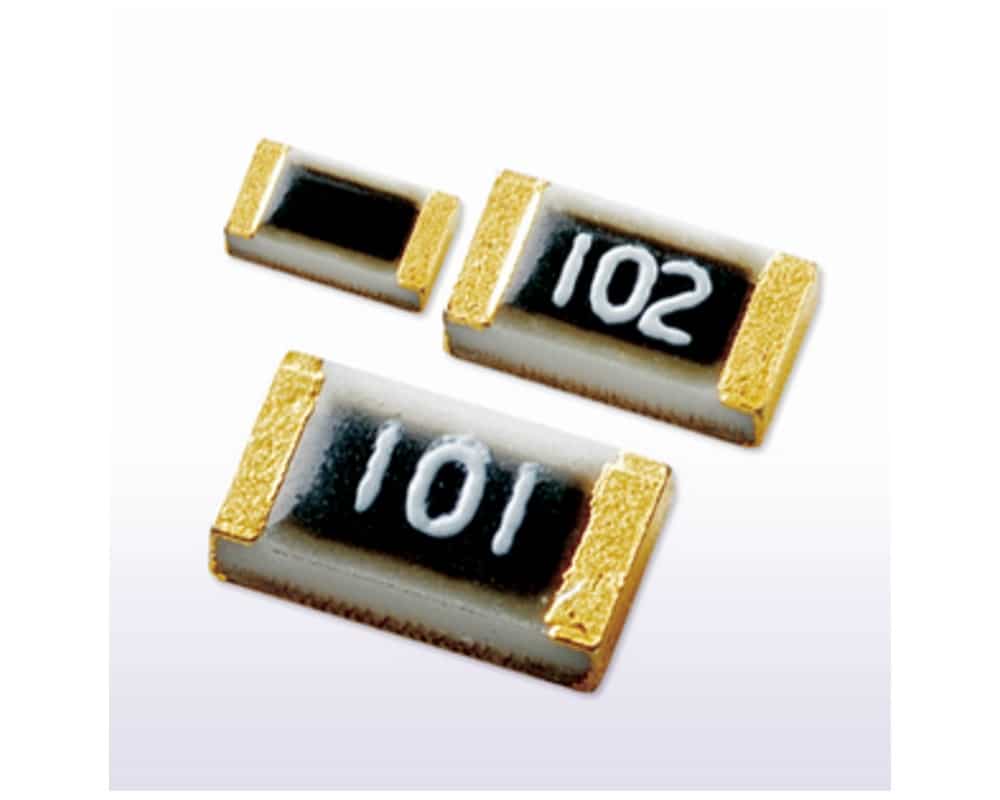

Susumu RGA1608 Series

  • Compliant
  • Susumu

Product Features

  • Surface-mount high temperature thin film chip resistor
  • Temperature range of −55°C to +230°C
  • Maximum voltage of 100V
  • Thin film structure enabling low noise and anti-sulfur
  • AEC-Q200 compliant
  • Automotive

Applications

  • Oil & Gas

Description

The RGA1608 series of high temperature thin film chip resistors from Susumu offer the designer an enhanced level of precision, reliability and expands on the original RG series by offering a maximum operating temperature of up to 230°C in a 0603 chip size. The RGA1608 series has a double layer of passivation to eliminate water ingress to the thin film element and has resistance values that range from 10Ω to 360kΩ. Tolerances options available are ±0.1% (B) and ±0.5% (D) and TCR values of ±10 ppm/°C (N) and ±25 ppm/°C (P). This resistor is AEC-Q200 compliant and has a high operating temperature up to 230°C which makes this range suitable for automotive and downhole applications.

  • Surface-mount high temperature thin film chip resistor
  • Resistance range between 10Ω and 360kΩ
  • Resistance value series E-24 and E-96
  • Power rating of 0.0625W
  • Tolerance values available ±0.1% (B) and ±0.5% (D)
  • TCR values available ±10 ppm/°C (N) and ±25 ppm/°C (P)
  • Maximum voltage of 100V
  • Temperature range of −55°C to +230°C
  • Thin film structure enabling low noise and anti-sulfur
  • Conductive epoxy compatible
  • Chip size of 0603
  • AEC-Q200 Compliant

Susumu RGA1608 series high temperature thin film chip resistors are ideal for the following applications:

  • Automotive electronics
  • Equipment used in high temperature enviroments
  • Down-hole drilling

The below table gives the full specifications of the Susumu RGA series including the RGA1608:

Susumu RGA1608 Specifications

Please see the Susumu selection guide in the Technical Library tab for the E-24 and E-96 values


Specifications

Weight 0.00000 kg

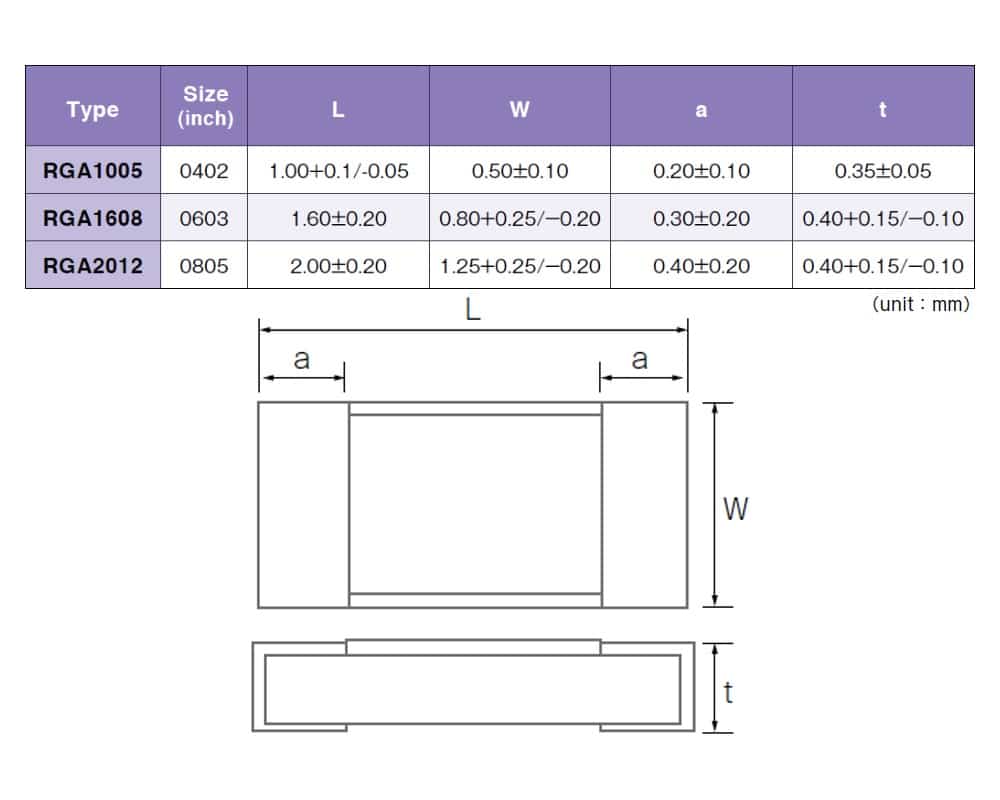

Dimensions 1.60 × 0.80 × 0.40 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

,

Power Rating

Additional Features

Surface-mount high temperature thin film chip resistorOperating temperature range of −55°C to +230°C Maximum voltage of 100VThin film structure enabling low noise and anti-sulfurAEC-Q200 complia

Tolerance

,
