High Voltage Leaded Resistors

HVR Series Description

• High-Voltage Resistors
• Radial through hole design
• Voltage ratings from 2kV up to 40kV
• Power ratings from 0.5W to 6W
• Resistance values from 100kΩ to 1TΩ *

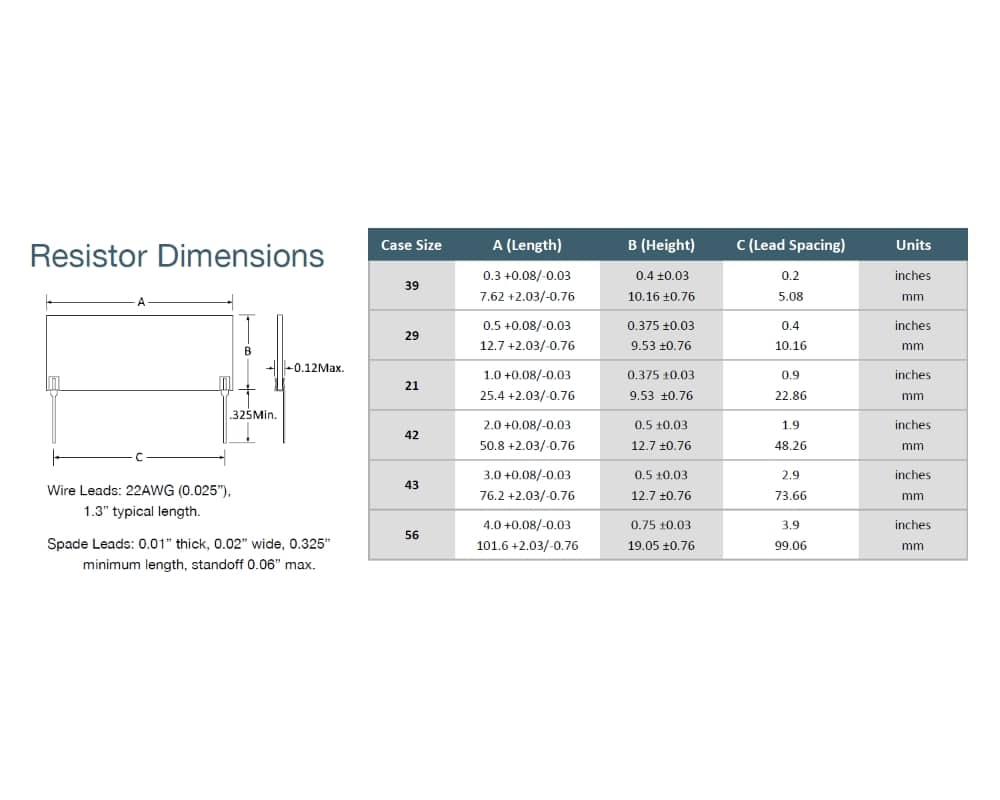

• Standard case sizes of 39, 29, 21, 42, 43 & 56 *

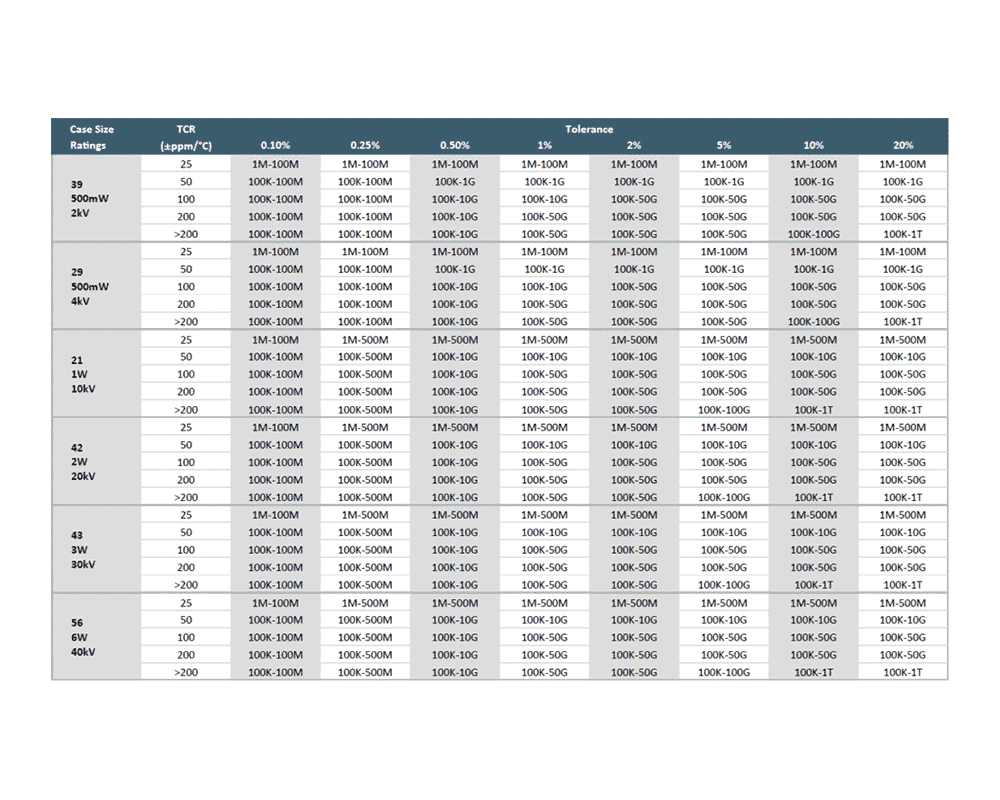

• Tolerances of ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5% ,±10% or ±20%
• TCR ratings of ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C or >±200 ppm/°C
• Ultra-high stability
• Very low noise
• VCR down to 0.05 ppm/V
• Temperature range from -55°C up to 150°C

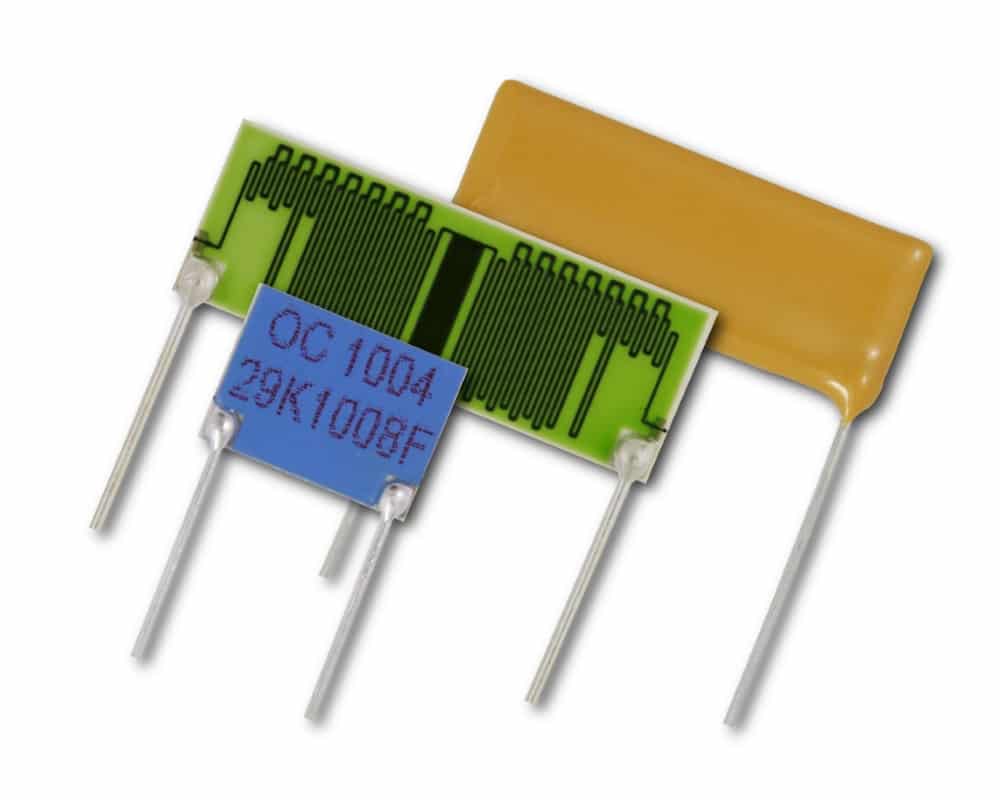

* Custom configurations are available upon request The HVR series from Exxelia Ohmcraft® are high-voltage radial resistors designed for precision applications where a higher voltage is required. The HVR series offers voltage ratings from 2kV to 40kV, tolerances from 0.1% to 20% and resistances from 100kΩ up to 1TΩ, all in a small radial package using thick film technology. By utilising their patented Micropen® precision printing technology, Exellia Ohmcraft are able to provide superior precision resistors with very low noise and ultra-high stability. TCR values are available as low as ±25 ppm/°C (between 1MΩ and 100MΩ) and VCR down to 0.05 ppm/V.
