RARA IRF100

Specifications

Weight 0.155 kg

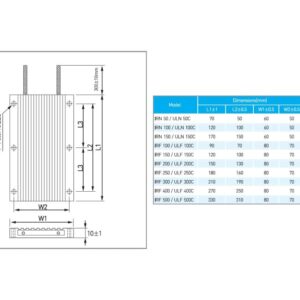

Dimensions 10.00 x 80.00 x 90.00mm
Product Type

, ,

Series / Model

Power Rating

Minimum Resistance

Maximum Resistance

Tolerance

, , , ,

Temperature Coefficient

Insulation Resistance

20MΩ minimum

Filling Material

,

Temperature Range (°C)

,

RARA IRF100

Clear
Quantity
  • Compliant

Series Products

Electronic Components

RARA IRF100 Series Products
 Product nameDimensionsPower RatingMinimum ResistanceMaximum ResistanceToleranceTemperature CoefficientDatasheetAdd to enquiry
RARA IRN/ULN/IRF/ULF Flat Type Metal Clad Wire Wound Resistors RARA IRF10010.00 x 80.00 x 90.00mm100W1.1kΩ±0.5%, ±1%, ±2%, ±5%, ±10%±260 ppm/°C Add to Enquiry
RARA IRN/ULN/IRF/ULF Flat Type Metal Clad Wire Wound Resistors RARA IRF15010.00 x 80.00 x 120.00mm150W1.75kΩ±0.5%, ±1%, ±2%, ±5%, ±10%±260 ppm/°C Add to Enquiry
RARA IRN/ULN/IRF/ULF Flat Type Metal Clad Wire Wound Resistors RARA IRF20010.00 x 80.00 x 150.00mm200W2.2kΩ±0.5%, ±1%, ±2%, ±5%, ±10%±260 ppm/°C Add to Enquiry
RARA IRN/ULN/IRF/ULF Flat Type Metal Clad Wire Wound Resistors RARA IRF25010.00 x 80.00 x 180.00mm250W2.79kΩ±0.5%, ±1%, ±2%, ±5%, ±10%±260 ppm/°C Add to Enquiry
RARA IRN/ULN/IRF/ULF Flat Type Metal Clad Wire Wound Resistors RARA IRF30010.00 x 80.00 x 210.00mm300W3.5kΩ±0.5%, ±1%, ±2%, ±5%, ±10%±260 ppm/°C Add to Enquiry
RARA IRN/ULN/IRF/ULF Flat Type Metal Clad Wire Wound Resistors RARA IRF40010.00 x 80.00 x 270.00mm400W4.45kΩ±0.5%, ±1%, ±2%, ±5%, ±10%±260 ppm/°C Add to Enquiry
RARA IRN/ULN/IRF/ULF Flat Type Metal Clad Wire Wound Resistors RARA IRF50010.00 x 80.00 x 330.00mm500W5.78kΩ±0.5%, ±1%, ±2%, ±5%, ±10%±260 ppm/°C Add to Enquiry

IRF Series Description

The IRF series from RARA consists of metal-clad, wirewound, high-power resistors, specifically designed for industrial use and other areas where space efficiency is essential. These low inductance resistors are perfectly suited for applications such as motor drives, braking, snubber applications, and powering industrial equipment. They feature a compact, flat design that not only conserves space but also promotes excellent heat dissipation.

The series is encased in an extruded aluminium housing, which provides robust protection and is ideal for challenging environments, and is available with flying leads. This design choice contributes to the IRF resistors' suitability for a range of industrial applications. They offer a significant power rating of up to 500W when mounted on a heat sink, with resistance values ranging from 1Ω to 5.78kΩ.

Customers can choose between cement or silicone filling materials based on their specific needs. The IRF series is marked by its precise and reliable performance, thanks to tolerances as low as ±0.5%. These resistors can operate effectively over a wide temperature range, with cement variants handling temperatures from -55℃ to +200℃, and silicone variants from -55℃ to +150℃. Additionally, they have a maximum Temperature Coefficient of Resistance (TCR) of ±260ppm/℃, with tolerances ranging from ±0.5% up to ±10.0%, making them a versatile and reliable choice for demanding industrial applications.

RARA IRF100 Ordering Info

Below is the model number configuration for the IRF series from RARA.
Ordering example: IRF100C50ΩFFL300mm
IRFXXXXXXXXΩXFLXXX

Series / Model (IRFXXX)

IRF100

Filling Material (X)

C
Cement
S
Silicone

Resistance Value (XXXXΩ)

Resistance value expressed in ohms, for example 0.5Ω or 225.5Ω.

Tolerance (X)

D
±0.5%
F
±1%
G
±2%
J
±5%
K
±10%

Termination/Connection (FLXXX)

FL XXX      Flying Lead **
(Blank)     Tab Terminal

* Please include required lead length with quote request, for example, FL300 for 300mm flying leads.

Thermostat options are available for these models. Please speak to an engineer for more information.

IRF Downloads

Supporting Manufacturer Information

  • RARA
RARA IRN/ULN/IRF/ULF Flat Type Metal Clad Wire Wound Resistors

RARA IRF100
