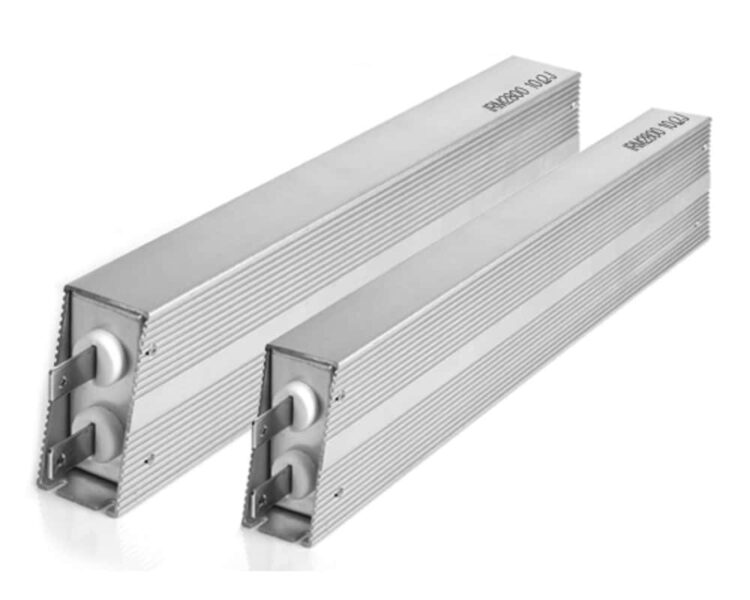

RARA IRM2000 Series

  • Compliant
  • RARA

Product Features

  • Metal clad wire wound resistor
  • Tab connections
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • Metal cover type with an extruded aluminium housing
  • Short time overload of 10 x power rating is 5 seconds

Applications

  • Motion Control
  • Renewables

Description

<pclass=”opening_description”> The IRM2000 metal clad wire wound resistor series from RARA offers a power rating of up to 650W in free air, with available resistance values between 2Ω and 113Ω (inductive design) or between 0.45Ω and 30.5Ω (non-inductive design). These high power resistors are available with tolerances of ±1.0%, ±5.0% and ±10.0% as standard with tab terminals, as well as inductive or non-inductive resistive windings. The IRM2000 series from RARA are a metal cover type with an extruded aluminium housing providing strong and rugged protection all with a temperature range from -55°C up to +200°C

  • Metal clad wire wound resistor
  • Tab terminal connections
  • Inductive resistance ranges available between 2Ω and 113Ω
  • Non-inductive resistance ranges available between 0.45Ω and 30.5Ω
  • TCR of +260 ppm/°C maximum
  • Tolerance values available of ±1.0%, ±5.0% and ±10.0%
  • Power rating of 650W in free air
  • Insulation resistance of 20MΩ minimum
  • Metal cover type with an extruded aluminium housing
  • Temperature range between -55°C and +200°C
  • Short time overload of 10 x power rating for 5 seconds



Typical applications for the IRM series include:

  • Motor drives
  • braking and snubbing applications
  • Power sources for industrial equipment



The below table gives the specifications available for the IRM series including the IRM2000 resistors:

RARA IRM2000 Specifications
Extended ohmic ranges are available, please contact us for further details.



</pclass=”opening_description”>

Specifications

Weight 3.10000 kg
Dimensions 400.00 × 50.00 × 100.00 mm
Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

, ,

Power Rating

Additional Features

Metal clad wire wound resistorTab connectionsInductive or non-inductive designInsulation resistance of 20MΩ minimumTemperature range of -55°C up to +200°CMetal cover type with an extruded aluminiu

Termination / Connection Type

,

Resistance Value

, ,

Temperature Coefficient

Inductive or Non Inductive

,

RARA IRM and ULM 1600 to 2800 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
RARA IRM and ULM series metal clad wire wound resistor datasheet
