RARA ULM1200 Series

RARA IRM600 Series
RARA IRM600 Series
RARA IRM600 Series
  • RARA

Product Features

  • Metal clad wire wound resistor
  • Option of flying leads, parallel or series connections
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • UL approved
  • Metal cover type with an extruded aluminium housing
  • Short time overload of 10 x power rating is 5 seconds
  • UL

Applications

  • Motion Control
  • Renewables
  • Compliant

Description

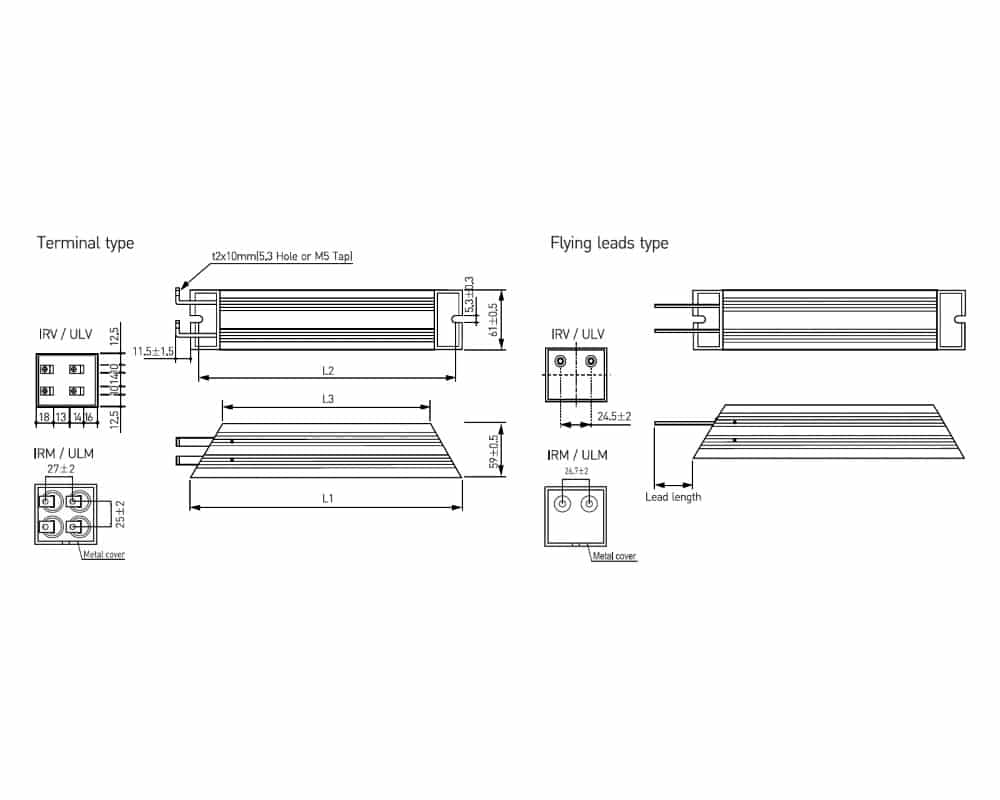

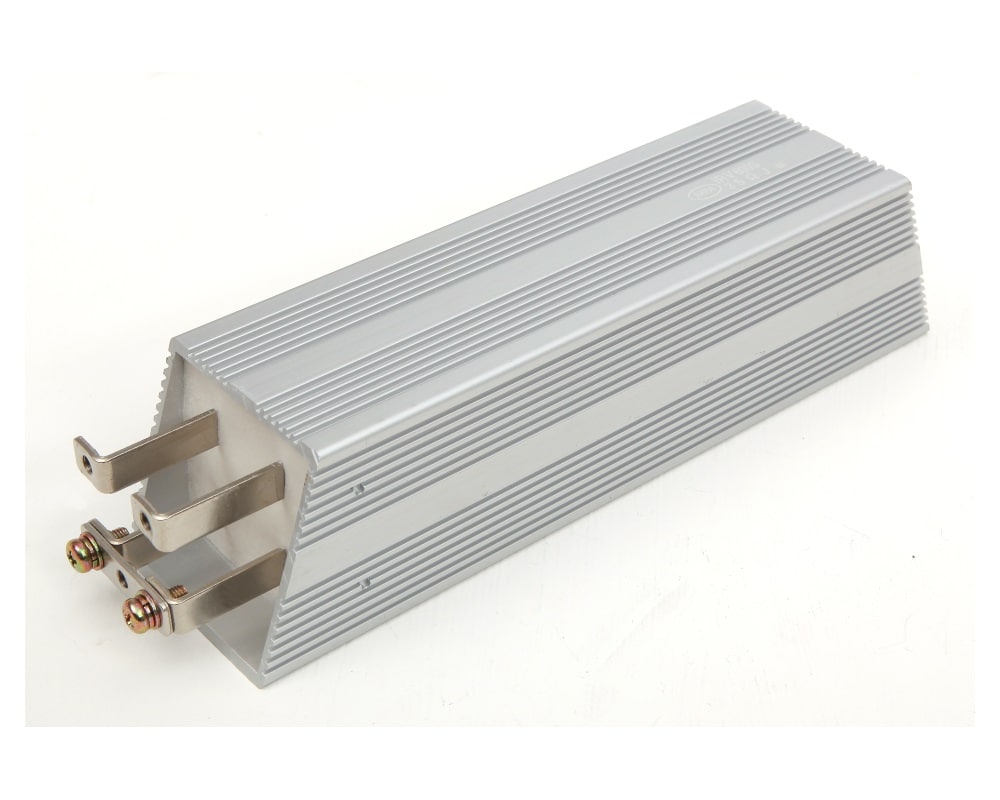

The ULM1200 metal clad wire wound resistor series from RARA offers a power rating of up to 1200W on a heat sink (480W in free air) with available resistance values between 0.1Ω and 175Ω (inductive design) or between 0.1Ω and 48Ω (non-inductive design). These high power resistors are UL approved available with tolerances of ±1.0%, ±2.0%, ±5.0% and ±10.0% as standard with other options available including flying leads or tab terminals, as well as inductive or non-inductive resistive windings. The ULM1200 series from RARA are a metal cover type with an extruded aluminium housing providing strong and rugged protection all with a temperature range from -55°C up to +200°C

  • Metal clad wire wound resistor
  • Option of flying leads, parallel or series terminal connections
  • Inductive resistance ranges available between 0.21Ω and 160Ω (flying leads), 0.1Ω and 25Ω (parallel tab terminal connection) or 25.1Ω and 175Ω (serial tab terminal connection)
  • Non-inductive resistance ranges available between 0.21Ω and 48Ω (flying leads), 0.1Ω and 12Ω (parallel terminal connection) or 12.1Ω and 48Ω (serial terminal connection)
  • TCR of +260 ppm/°C maximum
  • Tolerance values available of ±1.0%, ±2.0%, ±5.0% and ±10.0%
  • Power rating of 1200W on a heat sink (480W in free air)
  • Insulation resistance of 20MΩ minimum
  • UL approved
  • Metal cover type with an extruded Aluminium housing
  • Temperature range between -55°C and +200°C
  • Short time overload of 10 x power rating for 5 seconds

Typical applications for the ULM series include:

  • Motor drives
  • Braking and snubbing applications
  • Power sources for industrial equipment

The below table gives the specifications available for the ULM series including the ULM1200 resistors:

RARA ULM1200 Specifications

* Note: Tab TP = terminal parallel connection, Tab TS = terminal serial connection


Specifications

Weight 2.30400 kg
Dimensions 405.00 × 61.00 × 59.00 mm
Series / Model

Minimum Resistance

Maximum Resistance

Tolerance

, , ,

Power Rating

,

Termination / Connection Type

, ,

Resistance Value

, , , , ,

Temperature Coefficient

Inductive or Non Inductive

,
