| Dimensions | 0.28 x 0.48 x 0.95mm |
|---|---|
| Series / Model | |
| Mounting / Size | |
| Tolerance | |
| Temperature Coefficient | ±100 ppm/°C, ±250 ppm/°C, ±500 ppm/°C, ±2000 ppm/°C, ±3000 ppm/°C |
| Termination / Connection | AgPd, Au Plated |
| Maximum Resistance | 100GΩ |
| Minimum Resistance | 10Ω |
| Power Rating | |
| Temperature Range | -55 to +155°C |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

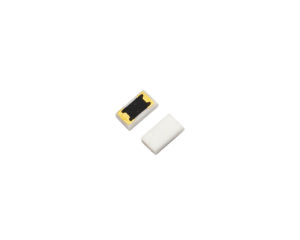

The CBW 0402 non-magnetic bondable chip resistor series from SRT Resistor Technology offers a wide resistance range from 10Ω up to 100GΩ, power rating of 0.05W and working voltage rating of 60V, all in a small 0402 package. By utilising SRT’s thick film resistor technology, they are able to offer low tolerances down to ±5.0% as well as a TCR as low as ±100 ppm/°C (between 10Ω and 100MΩ). The CBW 0402 resistor series has the bottom side completely insulated and features AgPd termination for flip-chip assembly (face down, for conductive epoxy assembly) or gold termination for wire bonding (US/TC face up) as well as flip chip (face down, for conductive epoxy assembly).
Orientation in tape (face-up for wire bonding, face-down for flip chip assembly) is to be specified with order. If not specified, face-up is supplied as standard.
The CBW non-magnetic resistor series is also available with an extended high temperature range version (up to +200°C). Please see the separate CBW-HT product pages for further information.
Other sizes and custom tolerance, TCR and VCR options are available upon request. Please contact us for further information and availability.
SRT Resistor Technology GmbH is an independent company, located in the south of Germany, with extensive experience in the development and production of high-grade resistors covering High-Voltage, High-Ohmic and High-Temperature Thick Film Resistors. For their official website, please visit www.srt-restech.de
