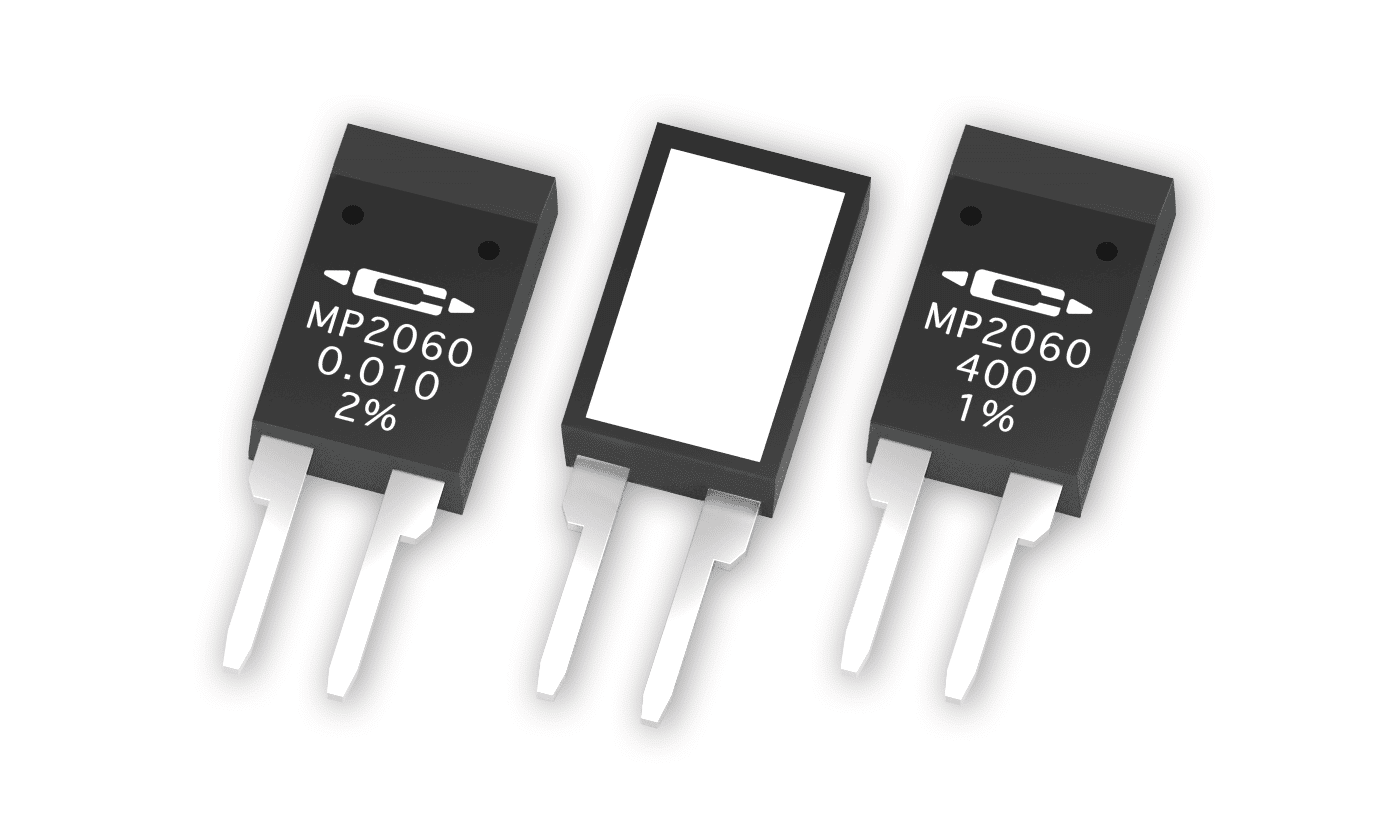

Caddock MP2060 Series

  • Caddock

Product Features

  • TO-220 style power through-hole resistor
  • Kool-Pak® clip mount design
  • Non-inductive
  • Up to 60A continuous current at +25°C case temperature (0.02Ω and above)
  • Excellent pulse / surge performance
  • Operation up to +150°C case temperature
  • Electrically isolated case

Applications

  • Power Control
  • Rhopoint Energy

Description

The MP2060 Kool-Pak® clip mount power film resistors from Caddock offer a resistance range from 0.005Ω up to 1KΩ and a power range of up to 60W continuous power at +25°C case temperature for 0.02Ω and above. The MMP2060 series tolerance values available are ±1.0% (as standard) ±2.0% and ±5.0% (depending on the resistance value required). These power resistors are in a TO-220 style package designed for clip mounting and offer non-inductive design for high speed switching, snubbers and RF applications.

  • Kool-Pak® clip mount power film through hole resistor in a TO-220 style package
  • Resistance values available between 0.005Ω and 1KΩ
  • Excellent pulse / surge performance
  • Non-inductive design
  • TCR of 0 to +300 ppm/°C (between 0.005Ω and 0.014Ω), 0 to +200 ppm/°C (between 0.015Ω and 0.049Ω), 0 to +100 ppm/°C (between 0.05Ω and 0.49Ω) and -20 to +80 ppm/°C (from 0.5Ω and above)
  • Tolerance of ±5.0% at 0.005Ω and ±2.0% at 0.01Ω and 0.015Ω, ±1.0% from 0.02Ω and greater
  • Power range of up to 60W at +25°C case temperature for 0.02Ω and above
  • Continuous current of up to 60A at +25°C case temperature for 0.015Ω and below
  • Operation up to +150°C case temperature
  • Electrically isolated case



Custom resistance values and tolerances are also available on request

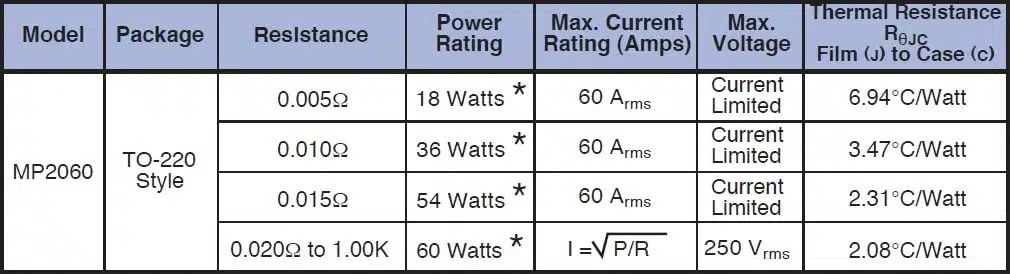

The below table gives the specifications available for the complete MP2060 resistor series:

Caddock MP2060 Specifications
* Please see the datasheet for the derating curve.





Specifications

Weight 0.00000 kg

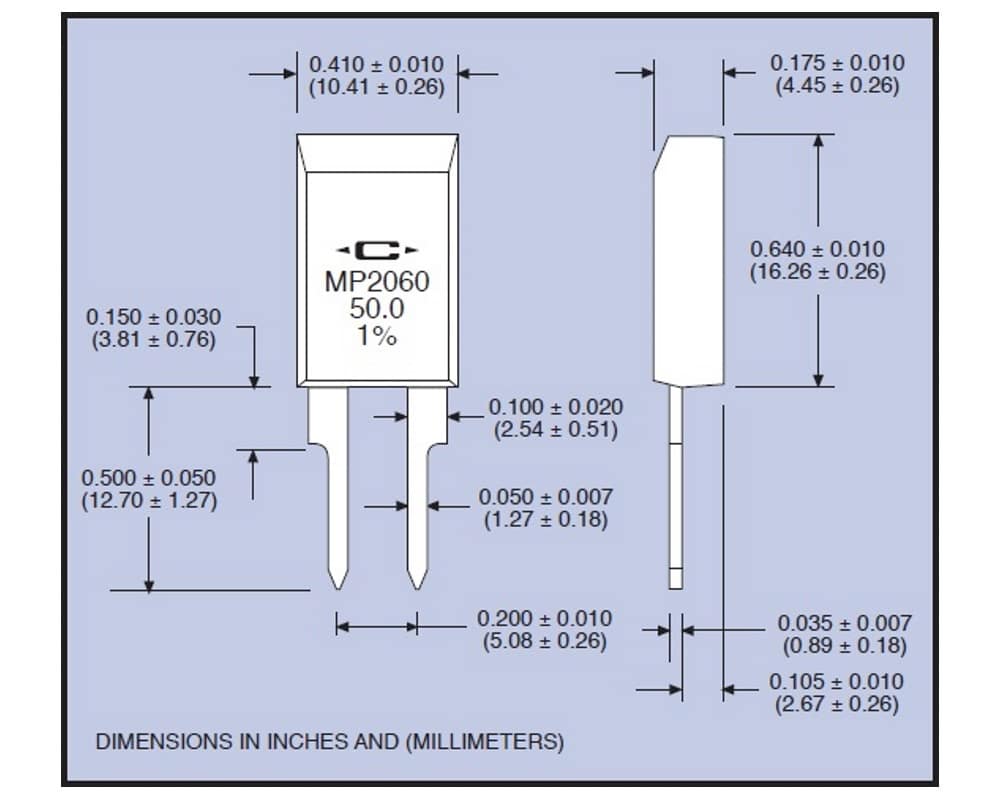

Dimensions 10.41 × 4.45 × 28.96 mm
Minimum Resistance

Maximum Resistance

Temperature Coefficient

, , ,

Power Rating

Additional Features

TO-220 style power through-hole resistorKool-Pak® clip mount designNon-inductiveUp to 60A continuous current at +25°C case temperature (0.02Ω and above)Excellent pulse / surge performanceOperation

Tolerance

, ,

RoHS Compliant Product – Caddock

This product is available fully compliant to the RoHS EU directive 2011/65/EU and 2015/863/EU

Caddock MP2060 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Caddock MP2060 TO-220 Kool-Pak® clip mount power film resistor series datasheet
Designing with Caddock TO-style heat sink mountable power film resistors application note (AEN-0101)
Understanding the power rating of Caddock MP9100 resistors application note (AEN-0102)
Application of the type CHR high resistance precision chip resistor products application note (AEN-0103)
Terminal finish and soldering process information for Caddock resistor products application note (AEN-0104)
Caddock resistor products and the RoHS directive application note (AEN-0105)
Customer applications that are outside the scope of the RoHS directive application note (AEN-0106)
Caddock REACH compliance statement application note (AEN-0107)
Recommended solder reflow profile for Caddock surface-mount resistors application note (AEN-0108)
