Caddock MP9100 Series

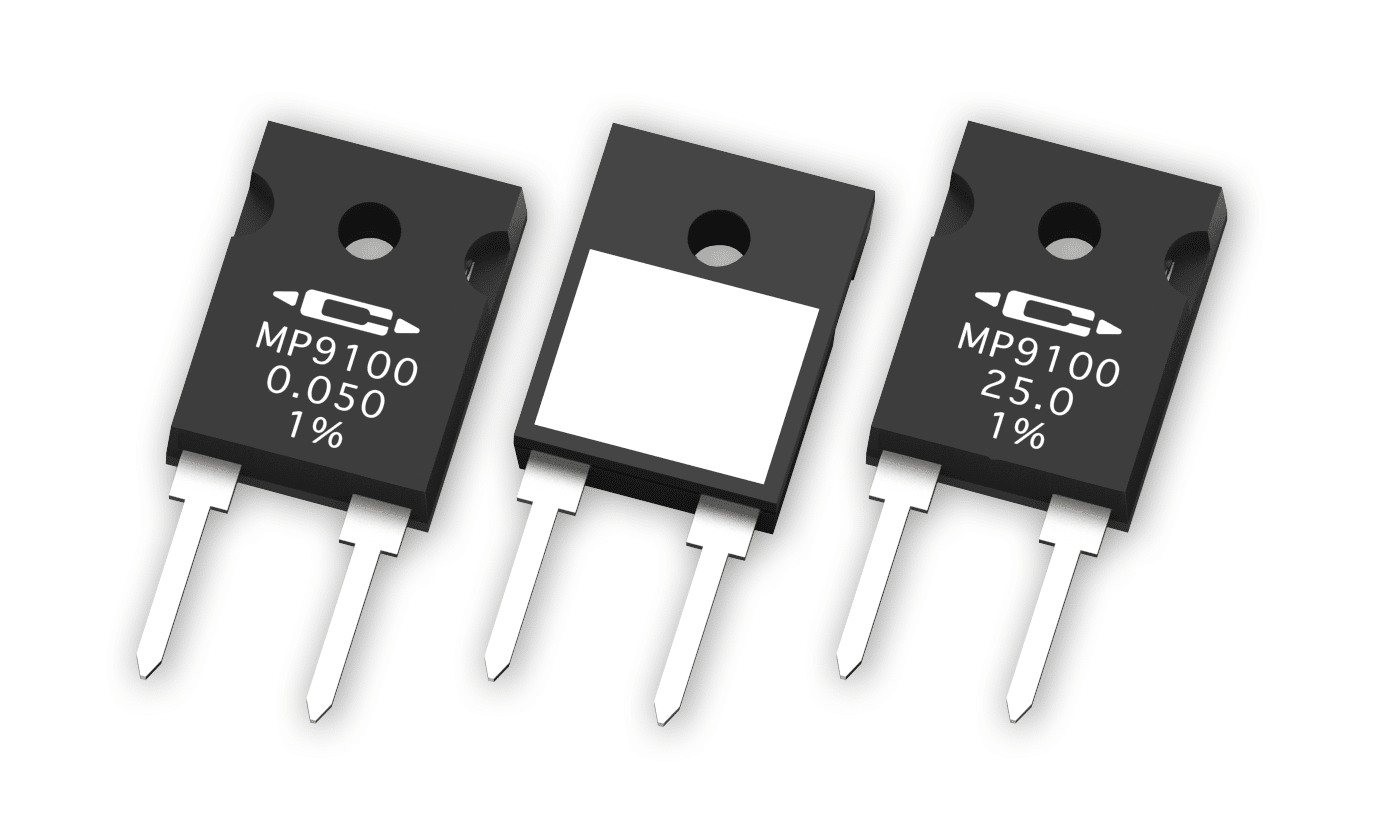

Caddock MP9100 power film resistor
Caddock MP9100 power film resistor
Caddock MP9100 Series
  • Caddock

Product Features

  • TO-247 style Kool-Pak® power through-hole resistor
  • Heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface
  • Non-inductive design
  • Constructed with Caddock’s Micronox® resistance film technology
  • Maximum voltage rating is limited by the power
  • Operation up to +175°C case temperature

Applications

  • Power Control
  • Exempt

Description

The MP9100 Kool-Pak® power film resistors from Caddock are a low cost, heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface. The resistance range is from 0.05Ω up to 100Ω with a power rating of up to 100W at +25°C case temperature derated to zero at +175°C. The MP9100 series tolerance is ±1.0% as standard (±5.0% and ±20.0% are available for most resistance values). The MP9100 series Kool-Pak® power film resistors are constructed with Caddock’s Micronox® resistance film fired onto a flat ceramic substrate. The terminal attachment and resistance element geometry are configured to provide outstanding non-inductive performance.

  • Kool-Pak® power film through-hole resistor
  • Low-cost heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface.
  • Resistance values available between 0.05Ω and 100Ω
  • Non-inductive design
  • TCR of 0 to +200 ppm/°C (between 0.05Ω and 0.49Ω) and -20 to +80 ppm/°C (from 0.5Ω and above)
  • Tolerance of ±1.0% as standard (±5.0% and ±20.0% are also available for most resistance values)
  • Power rating of up to 100W at +25°C case temperature derated to zero at +175°C
  • Maximum temperature 175°C



Use your thermal design experience with power semiconductors in TO-247 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.



The below table gives the specifications available for the complete MP9000 resistor series including the MP9100:

Caddock MP9100 Specifications
* Please see the datasheet for the derating curve.



Specifications

Weight 0.00000 kg

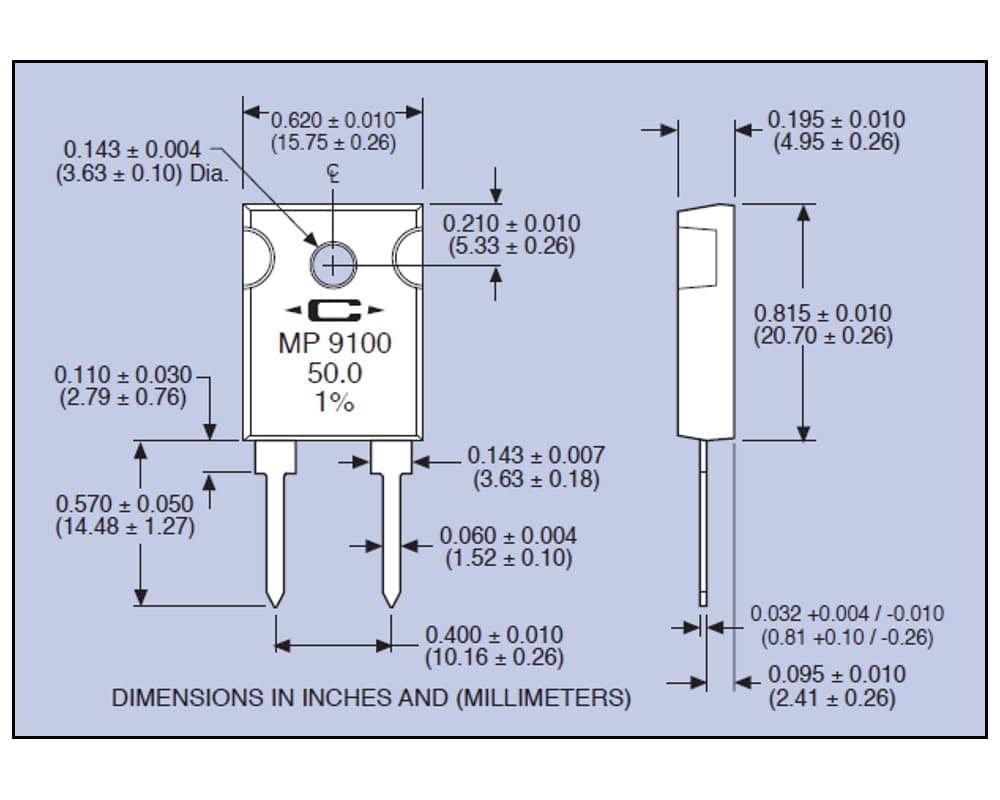

Dimensions 15.75 × 4.95 × 23.58 mm
Minimum Resistance

Series / Model

,

Maximum Resistance

Temperature Coefficient

,

Power Rating

Tolerance

Caddock MP9100 Series Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information
