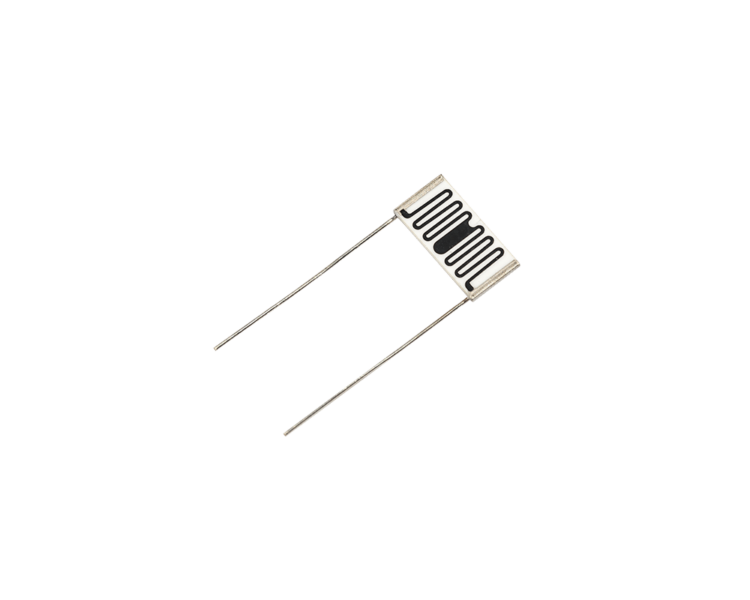

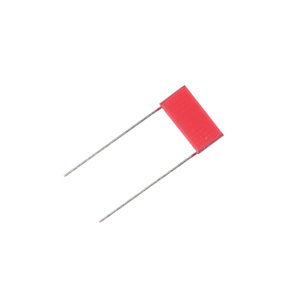

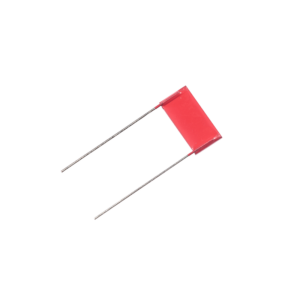

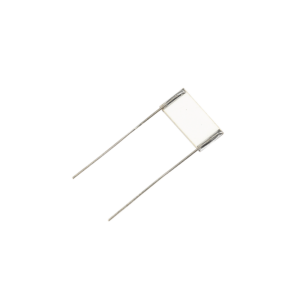

The GST 4020 high ohmic, non-magnetic, radial leaded resistor series from SRT Resistor Technology offers a wide resistance range from 1MΩ up to 1TΩ, power rating of 2W and voltage rating of 4000V trimmed or 6000V untrimmed (tolerances ≥5%), all in a small 4020 radial leaded package. By utilising SRT’s thick film resistor technology, these resistors are able to offer tolerances down to ±0.25% (between 1MΩ and 100MΩ) as well as a TCR of down to ±25 ppm/°C (between 1MΩ and 1GΩ) and a VCR as low as ±5 ppm/V (between 1MΩ and 100MΩ). The GST 4020 resistor series also features variable lead spacing and lacquer coating for climatic protection.
Lower tolerance, TCR and VCR options and other dimensions are available upon request. Please contact us for further information and availability.
The below table gives full specifications for each resistor model available including the GST 4020 series:
Weight | 0.00000 kg |
---|---|
Dimensions | 0.40 x 5.10 x 10.20mm |
Maximum Resistance | 1TΩ |
Minimum Resistance | 1MΩ |
Package / Size | |
Power Rating | |
Product Type | |
Resistance Value | Custom (1MΩ – 100MΩ), Custom (100MΩ – 500MΩ), Custom (500MΩ – 1GΩ), Custom (1GΩ – 10GΩ), Custom (10GΩ – 100GΩ), Custom (100GΩ – 1TΩ) |
Series / Model | |
Temperature Coefficient | |
Temperature Range (°C) | -55 to +150°C |
Termination / Connection | Radial |
Tolerance |
SKU | Resistance Value | Temperature Coefficient | Tolerance |
---|---|---|---|
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±50 ppm/°C | ±1% |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±100 ppm/°C | ±10% |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±10% | |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±50 ppm/°C | ±10% |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±100 ppm/°C | ±2% |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±2% | |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±50 ppm/°C | ±2% |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±100 ppm/°C | ±20% |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±20% | |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±50 ppm/°C | ±20% |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±100 ppm/°C | ±5% |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±5% | |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±50 ppm/°C | ±5% |
SRT GST 4020 Series | Custom (10GΩ - 100GΩ) | ±100 ppm/°C | ±10% |
SRT GST 4020 Series | Custom (10GΩ - 100GΩ) | ±250 ppm/°C | ±10% |
SRT GST 4020 Series | Custom (10GΩ - 100GΩ) | ±100 ppm/°C | ±20% |
SRT GST 4020 Series | Custom (10GΩ - 100GΩ) | ±250 ppm/°C | ±20% |
SRT GST 4020 Series | Custom (10GΩ - 100GΩ) | ±100 ppm/°C | ±30% |
SRT GST 4020 Series | Custom (10GΩ - 100GΩ) | ±250 ppm/°C | ±30% |
SRT GST 4020 Series | Custom (10GΩ - 100GΩ) | ±100 ppm/°C | ±5% |
SRT GST 4020 Series | Custom (10GΩ - 100GΩ) | ±250 ppm/°C | ±5% |
SRT GST 4020 Series | Custom (1GΩ - 10GΩ) | ±100 ppm/°C | ±10% |
SRT GST 4020 Series | Custom (100GΩ - 1TΩ) | ±500 ppm/°C | ±10% |
SRT GST 4020 Series | Custom (100GΩ - 1TΩ) | ±500 ppm/°C | ±20% |
SRT GST 4020 Series | Custom (100GΩ - 1TΩ) | ±500 ppm/°C | ±30% |
SRT GST 4020 Series | Custom (100GΩ - 1TΩ) | ±500 ppm/°C | ±5% |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±100 ppm/°C | ±0.5% |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±0.5% | |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±50 ppm/°C | ±0.5% |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±100 ppm/°C | ±1% |
SRT GST 4020 Series | Custom (100MΩ - 500MΩ) | ±1% | |
SRT GST 4020 Series | Custom (1GΩ - 10GΩ) | ±50 ppm/°C | ±10% |
SRT GST 4020 Series | Custom (1GΩ - 10GΩ) | ±100 ppm/°C | ±2% |
SRT GST 4020 Series | Custom (1GΩ - 10GΩ) | ±50 ppm/°C | ±2% |
SRT GST 4020 Series | Custom (1GΩ - 10GΩ) | ±100 ppm/°C | ±20% |
SRT GST 4020 Series | Custom (1GΩ - 10GΩ) | ±50 ppm/°C | ±20% |
SRT GST 4020 Series | Custom (1GΩ - 10GΩ) | ±100 ppm/°C | ±5% |
SRT GST 4020 Series | Custom (1GΩ - 10GΩ) | ±50 ppm/°C | ±5% |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±100 ppm/°C | ±0.25% |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±0.25% | |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±50 ppm/°C | ±0.25% |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±100 ppm/°C | ±0.5% |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±0.5% | |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±50 ppm/°C | ±0.5% |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±100 ppm/°C | ±1% |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±1% | |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±50 ppm/°C | ±1% |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±100 ppm/°C | ±10% |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±10% | |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±50 ppm/°C | ±10% |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±100 ppm/°C | ±2% |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±2% | |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±50 ppm/°C | ±2% |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±100 ppm/°C | ±5% |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±5% | |
SRT GST 4020 Series | Custom (1MΩ - 100MΩ) | ±50 ppm/°C | ±5% |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±100 ppm/°C | ±1% |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±1% | |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±50 ppm/°C | ±1% |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±100 ppm/°C | ±10% |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±10% | |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±50 ppm/°C | ±10% |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±100 ppm/°C | ±2% |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±2% | |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±50 ppm/°C | ±2% |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±100 ppm/°C | ±20% |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±20% | |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±50 ppm/°C | ±20% |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±100 ppm/°C | ±5% |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±5% | |
SRT GST 4020 Series | Custom (500MΩ - 1GΩ) | ±50 ppm/°C | ±5% |
This product is available compliant to the RoHS EU directive 2011/65/EU, however, the following exemptions according to the RoHS annex are applicable:
We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
DOCUMENTATION | |
---|---|
SRT GST high ohmic non magnetic radial leaded resistor datasheet |
