  • SRT Microcéramique

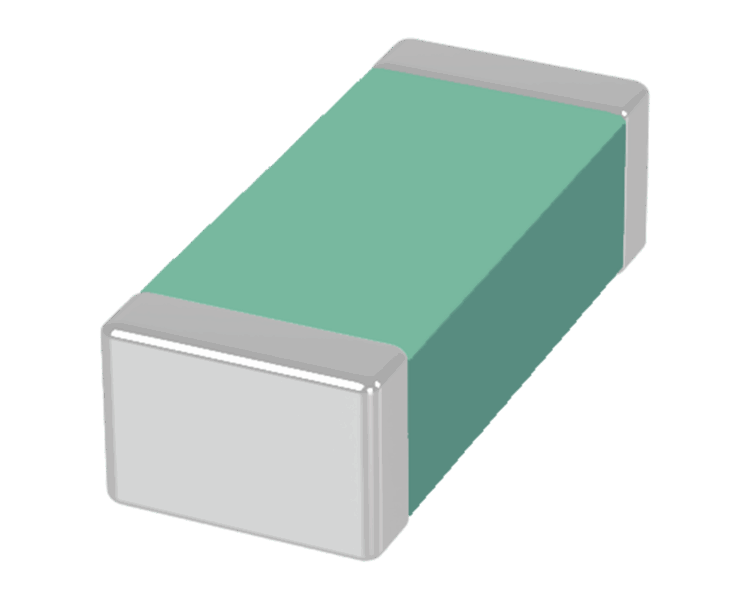

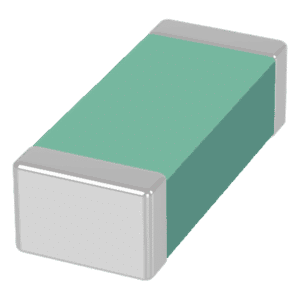

High Temperature Class I SMD Capacitor

SMD High Temperature Class I Capacitors

  • High Temperature Class I SMD Capacitor
  • Capacitance from 0.1pF to 330nF
  • Voltages from 10V to 2000V
  • Ultra stable temperature compensating classe I ceramic up to 250°C
  • Tested in accordance to CECC 32100 and AEC-Q200
  • Custom voltage, package size, capacitance value on reques
  • Compliant

SRT Microcéramique’s SMD High Temperature Class I Capacitors are engineered for precision performance in extreme thermal environments where electrical stability, reliability, and low-loss operation are essential. Utilizing ultra-stable Class I dielectric materials such as NP0, these multilayer ceramic capacitors (MLCCs) deliver minimal capacitance drift over temperature and frequency, making them ideal for high-reliability applications operating at elevated temperatures. Designed to withstand continuous operation up to 200°C, these capacitors maintain their electrical characteristics even under severe thermal cycling and vibration.

Available in capacitance values from 0.1pF to 330nF and voltage ratings from 10V to 2000V, they are particularly suited for high-frequency, precision analog, and RF circuitry in aerospace, automotive, and industrial environments. The use of Class I dielectrics results in negligible aging, outstanding linearity, and predictable temperature coefficients—±30ppm/°C—supporting precision timing, filtering, and frequency control.

Manufactured in industry-standard SMD case sizes (such as 0805, 1206, and 1210), these capacitors are tested to CECC 32100 standards and can be provided with AEC-Q200 qualification for automotive-grade use. Their rugged construction ensures high thermal and mechanical stability, even in challenging operating environments such as downhole electronics, aerospace systems, and under-the-hood automotive electronics.



Key Features for SMD High Temperature Class I Capacitor:

  • Capacitance range: 0.1pF to 330nF
  • Voltage ratings: 10V to 2000V
  • Operating temperature: – 55°C, + 250°C
  • Temperature Coefficient: ± 30ppm with 0Vdc applied
  • Dielectric types: NP0
  • Extremely stable Class I ceramic composition
  • Low dissipation factor:
    • ≤ 1.10-3 at 1Vrms and 1MHz for values ≤ 1000pF
    • ≤ 1.10-3 at 1Vrms and 1KHz for values > 1000pF
  • High insulation resistance:
    • 25°C/Un 105 MOhm or 1000 Ohm-Farad whichever is less
    • 200°C/Un 104 MOhm or 100 Ohm-Farad whichever is less
    • 250°C/Un 5×103 MOhm or 50 Ohm-Farad whichever is less
  • Tight tolerances available: ±0.1pF
  • Tested to CECC 32100; AEC-Q200 options available

Custom voltage, package size, or capacitance value available on request



Typical Applications for the SMD High Temperature Class I Capacitor:

  • Aerospace & Defense: Avionics, high-frequency communications, and control systems operating in extreme temperatures
  • Automotive Electronics: Engine control units, under-hood electronics, and high-reliability sensing systems
  • Oil & Gas Exploration: Downhole instrumentation and drilling electronics
  • Industrial Equipment: High-temperature monitoring, control circuits, and test equipment
  • Telecommunications: High-frequency filters and impedance matching in elevated temperature environments



Specifications

Product Type

Package / Size

, , , , , , , , , , , , , , , ,

Dielectric

NP0

Capacitance Value

0.4pF, 1.2nF, 1.5nF, 1.8nF, 100nF, 10nF, 10pF, 120nF, 12nF, 150nF, 150pF, 15nF, 180nF, 180pF, 18nF, 1nF, 1pF, 2.2nF, 2.7nF, 220nF, 220pF, 22nF, 270nF, 27nF, 3.3nF, 3.9nF, 330nF, 330pF, 33nF, 39nF, 4.7nF, 4.7pF, 470nF, 470pF, 47nF, 5.6nF, 560pF, 56nF, 6.8nF, 680pF, 68nF, 68pF, 8.2nF, 82nF, 82pF, 0.1pF

Tolerance

, , , , , , , ,

Voltage Rating

, , , , , , , , , , , ,

Termination / Connection

Nickel Gold, Palladium-Silver, Solderable Silver, Nickel Tin, Dipped SAC, Dipped SnPb, Electrolytic SnPb

Packaging

Bulk, Tape & Reel

Temperature Coefficient

Ordering Info

Below is the model number configuration for the series from SRT Microcéramique.
Ordering example: H 0603 A 101 J B F B D03
HXXXXXXXXXXXXXXX

Series (H)

H       High Temperature

Package / Size (XXXX)

0402
0402
0603
0603
0805
0805
1111
1111
1206
1206
1210
1210
1808
1808
1812
1812
1825
1825
2220
2220
2225
2225
2825
2825
3033
3033
3640
3640
4040
4040
5440
5440

Dielectric (X)

A
NP0

Capacitance (XXX)

Expressed in picofarads (pF). The first two digits are significant, the
third digit gives the number of noughts.
Example : 102 = 1 000pF

For special values R is used as decimal separator
Example 12R7 = 12.7pF
1340R0 = 1340pF

Tolerance (X)

A
±0.5% if > 10pF and ±0.05pF if < 10pF
B
±0.1pF
C
±0.25pF
D
±0.5pF
E
±0.1%
F
±1%
G
±2%
J
±5%
K
±10%

Voltage Rating (X)

A
50V
B
100V
C
200V
E
500V
F
630V
G
1000V
H
2000V
J
16V
O
1500V
P
250V
Q
10V
U
63V
X
25V

Termination / Connection (X)

F
Palladium-Silver
H
Dipped SnPb
I
Electrolytic SnPb
Q
Solderable Silver
S
Dipped SAC
W
Nickel Gold
X
Nickel Tin

Packaging (X)

B
Tape & Reel
V
Bulk

Special Parameters (XXX)

D03      Burn-In 168H/125°C
BM       BME
Dxx      Reliability spec
Exx      Sorting spec

Product Variations

SKUPackage / SizeDielectricCapacitance ValueToleranceVoltage RatingTermination / ConnectionPackaging
H XXXX A XXX X X X X XXXNP0
