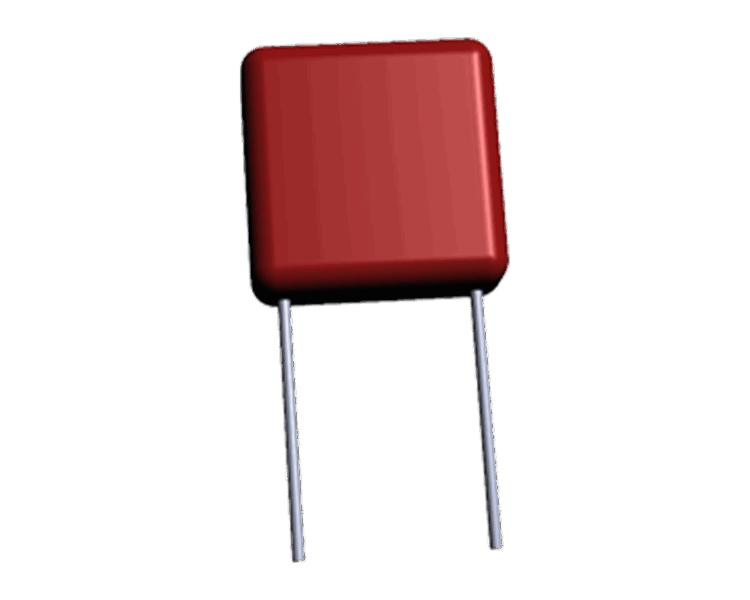

SRT Microcéramique Radial Capacitor Dipped High Voltage

Product Features

  • High voltage radial dipped capacitors
  • Capacitance from 0.4pF to 47µF
  • TCR options from ±30ppm/°C (NP0) to ±15% (X7R)
  • Voltages from 1kV to 15kV
  • IR 25°C/Un ≥10⁵MΩ or 1000Ω-Farad whichever is less *
  • Dielectrics: NP0, N2T, BX, 2C1, X7R
  • Operating temperatures from -55°C to +125°C
  • Compliant

The SRT Microcéramique Radial Dipped High Voltage Capacitor Series is engineered for high-reliability applications requiring robust performance under demanding conditions. These multilayer ceramic capacitors (MLCCs) are designed to operate efficiently in severe environments, making them ideal for sectors such as aerospace, medical, industrial, and defense.

The capacitors are available in various case sizes, ranging from SRMC31 to SRMC96, to accommodate different application requirements. Lead spacing and dimensions vary by size, with lead diameters typically at 0.6 mm or 0.8 mm. Epoxy coating versions are available in specific forms to suit different mounting preferences.



Key features for the Radial Capacitors Dipped High Voltage:

  • Voltage Range: 1kV to 15kV
  • Dielectric Options: NP0, N2T, BX, 2C1, X7R

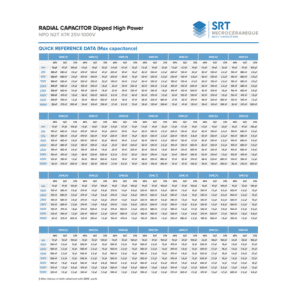

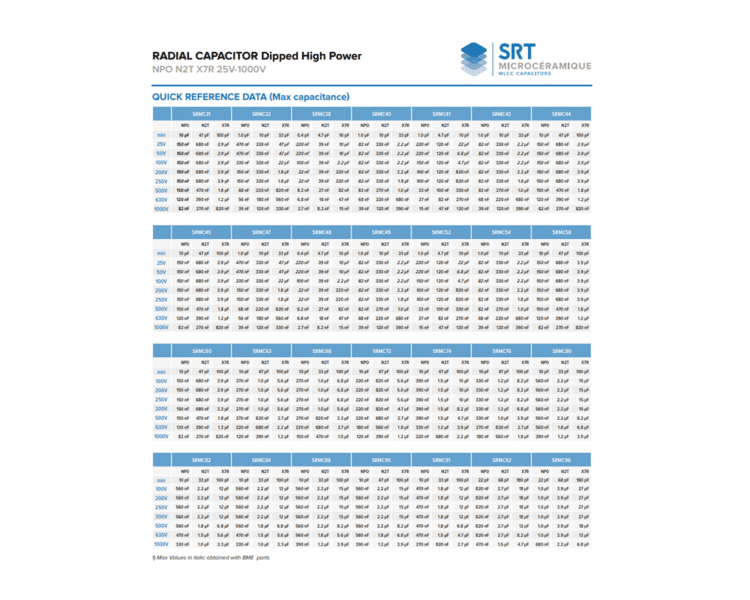

  • Capacitance Range: From 0.4 pF to 47 µF, depending on size and dielectric
  • Operating Temperature: -55°C to +125°C
  • Temperature Coefficient:
    • NP0: ±30 ppm/°C
    • N2T: -2200 ± 350 ppm/°C
    • X7R: ±15% with 0Vdc applied
    • BX: +15% / -25% under rated voltage
    • 2C1: +20% / -30% under rated voltage
  • Dissipation Factor:
    • NP0/N2T: ≤ 0.001 at 1Vrms and 1MHz for ≤1000pF; at 1Vrms and 1kHz for >1000pF
    • X7R: ≤ 0.025 at 1kHz for C ≥ 100pF
    • BX/2C1: ≤ 2.5%
  • Insulation Resistance:
    • At 25°C: ≥10⁵ MΩ or 1000 Ω·F (whichever is less)
    • At 125°C: ≥10⁴ MΩ or 100 Ω·F (whichever is less)
  • Dielectric Strength Test: 1.2 times rated voltage for 5 seconds with 50mA max charging current
  • Burn-In Test: 48 hours at 125°C at 2x rated voltage for Un < 500V; 1.5x rated voltage for Un > 500V
  • Coating Options: Standard conformal coating or epoxy coating for enhanced protection
  • Non-Magnetic Option: Available upon request
  • Compliance: Designed to meet or exceed industry standards



Typical Applications for the Radial Capacitors Dipped High Voltage:

  • Severe environment
  • Historical design



SRT Microcéramique, based in France, is a leading manufacturer of multilayer ceramic capacitors. Known for its precision and reliability, SRT Microcéramique supplies high-performance components to industries with demanding requirements. Visit SRT Microceramique for more information.

Specifications

Series / Model

Package / Size

, , , , , , , , , , , , , , , , , , , , , , , , , , ,

Tolerance

, , , , , , , ,

Voltage Rating

, , , , ,

Termination / Connection

Non-magnetic, Sn

Packaging

Bulk, Tray

Configuration

B Form, Default A,C,D Form

Coating

Epoxy Resin Coating, Conformal Coating

Capacitance Value

0.4pF, 1.2μF, 1.5µF, 1.8μF, 100nF, 100pF, 10pF, 120nF, 12µF, 150nF, 15nF, 15μF, 180nF, 180pF, 18nF, 18µF, 1pF, 2.7nF, 2.7μF, 220nF, 22nF, 22pF, 270nF, 27nF, 27µF, 3.3μF, 3.9μF, 330nF, 33nF, 33pF, 390nF, 39nF, 4.7pF, 470nF, 47nF, 47pF, 5.6μF, 560nF, 56nF, 6.8nF, 6.8μF, 680nF, 68nF, 68pF, 8.2nF, 8.2μF, 820nF, 82nF, 1μF, 2.2μF, 4.7μF, 10µF, 22µF, 47µF

Dielectric

X7R, N2T, NP0

Temperature Range (°C)

-55 to +125°C

Product Type

Ordering Info

Below is the model number configuration for the SRMC series from SRT Microcéramique.
Ordering example: SRMC 41 Y 102 J A C B H B BM
SRMCXXXXXXXXXXXXXXX

Series / Model (SRMC)

SRMC
SRMC

Package / Size (XX)

31
31
32
32
38
38
40
40
41
41
43
43
44
44
45
45
47
47
48
48
49
49
52
52
54
54
58
58
60
60
63
63
68
68
72
72
74
74
76
76
80
80
82
82
84
84
88
88
90
90
91
91
92
92
96
96

Dielectric (X)

A
NP0
P
N2T
Y
X7R

Capacitance (XXX)

Expressed in picofarads (pF). The first two digits are significant, the third digit give the number of noughts.
Example : 102 = 1 000pF

For special values R is used as decimal
separator. Example:

12R7 = 12.7pF
1340R0 = 1340pF

Tolerance (X)

A
0.05% if >10pF and ±0.05pF if < 10pF
B
±0.1pF
C
±0.25pF
D
±0.5pF
F
±1%
G
±2%
J
±5%
K
±10%
M
±20%

Voltage Rating (X)

A
50V
B
100V
C
200V
E
500V
G
1000V
X
25V

Termination / Connection (X)

-
Sn
C
Non-magnetic

Configuration (X)

-
Default A,C,D Form
B
B Form

Coating (X)

-
Conformal Coating
H
Epoxy Resin Coating

Packaging (X)

T
Tray
V
Bulk

Special Parameters (XXX)


BM = BME
Dxx = Reliability spec
Exx = Sorting spec

Product Variations

SKUPackage / SizeToleranceVoltage RatingTermination / ConnectionPackagingConfigurationCoatingCapacitance ValueDielectric
SRMC 41 Y 102 J A C B H B BM
