| Weight | 0.00000 kg |
|---|---|
| Dimensions | 0.00 x 9.00 x 37.00mm |
| Actual Energy Failure | 1800J |
| Dissipation Constant | 78mW/°C |
| Material Type | |
| Max. Recommended Energy | 500J |
| Maximum Steady State Current | 50A |
| Mounting / Size | |
| Resistance at +25°C | 0.5Ω |
| Series / Model | |
| Thermal Time Constant | 240mW/s |
| Tolerance | |
| Voltage Rating |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.
The MS35 0R550 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 50A (up to +25°C) and a resistance of 0.5Ω ±25% (at 25°C). Ametherm’s MegaSurge™ series of inrush current limiting thermistors are capable of handling up to 900 joules of energy and 50 amperes of steady state current. These power thermistors are rugged and built to last even in the most demanding high power applications. The Ametherm MS35 devices play a key role in alternative energy applications by avoiding current spikes in the power generated by wind turbines, solar panels, and other sources as it’s fed into batteries, inverters, and other energy storage components. These MegaSurge™ devices are also used to regulate the release of battery energy in electric vehicles and in pre-charge circuits for many different types of battery chargers.
Typical applications for the MS35 series include:

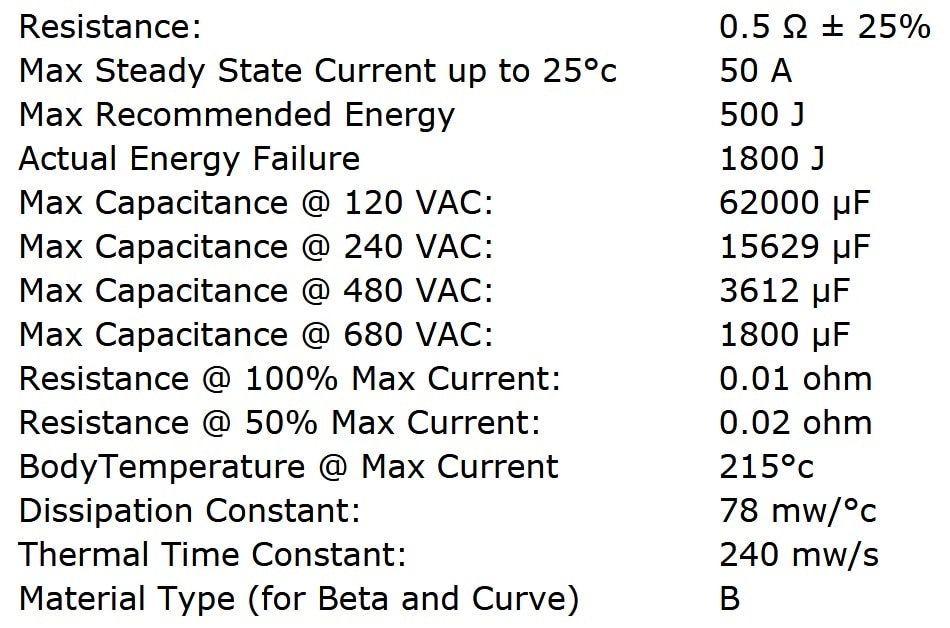

The below table gives the full specifications of the Ametherm MS35 0R550 series:
