Ametherm MS35 3R030

  • Exempt
  • Ametherm

Product Features

  • Inrush current limiting thermistor
  • Resistance of 3Ω (at 25°C)
  • Maximum steady state current of 30A
  • Maximum recommended energy of 750J
  • Voltage rating from 120VAC to 680VAC
  • Body temperature of +215°C at maximum current

Applications

  • Power Control

Description

The MS35 3R030 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 30A (up to +25°C) and a resistance of 3Ω ±25% (at 25°C). Ametherm’s MegaSurge™ series of inrush current limiting thermistors are capable of handling up to 900 joules of energy and 50 amperes of steady state current. These power thermistors are rugged and built to last even in the most demanding high power applications. The Ametherm MS35 devices play a key role in alternative energy applications by avoiding current spikes in the power generated by wind turbines, solar panels, and other sources as it’s fed into batteries, inverters, and other energy storage components. These MegaSurge™ devices are also used to regulate the release of battery energy in electric vehicles and in pre-charge circuits for many different types of battery chargers.

  • Inrush current limiting thermistor
  • Resistance of 3Ω (at 25°C)
  • Maximum steady state current of 30A (up to +25°C)
  • Maximum recommended energy of 750J
  • Voltage ratings of 120VAC, 240VAC, 440VAC and 680VAC
  • Actual energy failure at 1250J
  • 0.03Ω at 100% maximum current and 0.07Ω at 50% maximum current
  • Body temperature of +215°C at maximum current
  • Material type C (for beta and curve)
  • Tolerance ±25%
  • Dissipation constant of 78mW/°C
  • Thermal time constant of 240mW/s



Typical applications for the MS35 series include:

  • Regulate the release of battery energy in electric vehicles and in pre-charge circuits for many different types of battery chargers.
  • Power generated by wind turbines, solar panels, and other sources as it’s fed into batteries, inverters, and other energy storage components

The below table gives the full specifications of the Ametherm MS35 3R030 series:

Ametherm MS35 3R030 Specifications

Specifications

Weight 0.00000 kg

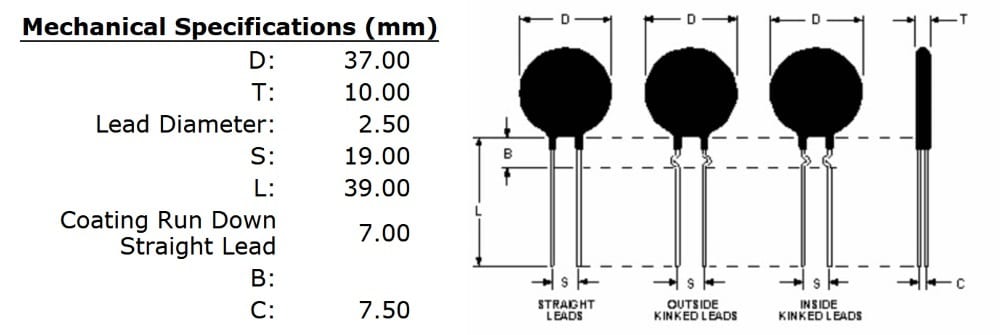

Dimensions 37.00 × 10.00 × 0.00 mm
Resistance at +25°C

Actual Energy Failure

Body Temperature at Maximum Current

Maximum Steady State Current

Tolerance

Voltage Rating

, , ,

Material Type

Dissipation Constant

Thermal Time Constant

RoHS Compliant Product with Exemption – Ametherm

This product meets the requirements in compliance with RoHS Directive 2011/65/EU including Directive (EU) 2015/863 amending Annex II, on the restriction of the use of Certain Hazardous Substances in Electrical and Electronic Equipment.

The above product is, however, is not Pb free, using exemption 7(a) “Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead)

Ametherm AS, MS and SL Videos

We are pleased to provide you with a range of videos, please see below for the latest content available:





VIDEOS
Place holder video for YouTube video Limiting Inrush Current with NTC and PTC Themistors video

Learn how to limit inrush current using NTC and PTC thermistors in this presentation by Ametherm.

Many applications today, including industrial machinery, power tools and other high current equipment, use limiting inrush current as a major design consideration to combat the problematic effects of inrush current.

Inrush current occurs when a system powers on and experiences a spike in current. This current can be substantially higher than standard operating current. If not properly managed, it can reduce the effective operating life and impose damage to equipment. For example, inrush current could disable a cooling fan, eventually leading to total system failure.

Applications that are switched on and off quickly, such as welding equipment, present a particular concern for limiting inrush current. The limiting inrush current circuit must reset instantaneously during each power on to protect the system. This further complicates the management of inrush current.

Place holder video for YouTube video Limiting Inrush Current for a 40VA Transformer

Inrush current often causes problems for transformers. This video will show you how to calculate the right inrush current limiter for your transformer in 7 simple steps.

Place holder video for YouTube video DC Motor Inrush Current and What You Need to Know

What does inrush current have to do with DC motors? This video answers that question by discussing the cause of DC motor inrush current and how to prevent the inrush of current at startup from possibly damaging the DC motor with the use of Ametherm's Inrush Current Limiters. They start by explaining how a DC motor functions, its applications and key components, how inrush current factors in, how to solve the problem of inrush current, and how to select the right inrush current limiter for your application with three easy steps.

VIDEOS
Place holder video for YouTube video
Limiting Inrush Current with NTC and PTC Themistors video

Learn how to limit inrush current using NTC and PTC thermistors in this presentation by Ametherm.

Many applications today, including industrial machinery, power tools and other high current equipment, use limiting inrush current as a major design consideration to combat the problematic effects of inrush current.

Inrush current occurs when a system powers on and experiences a spike in current. This current can be substantially higher than standard operating current. If not properly managed, it can reduce the effective operating life and impose damage to equipment. For example, inrush current could disable a cooling fan, eventually leading to total system failure.

Applications that are switched on and off quickly, such as welding equipment, present a particular concern for limiting inrush current. The limiting inrush current circuit must reset instantaneously during each power on to protect the system. This further complicates the management of inrush current.

Place holder video for YouTube video
Limiting Inrush Current for a 40VA Transformer

Inrush current often causes problems for transformers. This video will show you how to calculate the right inrush current limiter for your transformer in 7 simple steps.

Place holder video for YouTube video
DC Motor Inrush Current and What You Need to Know

What does inrush current have to do with DC motors? This video answers that question by discussing the cause of DC motor inrush current and how to prevent the inrush of current at startup from possibly damaging the DC motor with the use of Ametherm's Inrush Current Limiters. They start by explaining how a DC motor functions, its applications and key components, how inrush current factors in, how to solve the problem of inrush current, and how to select the right inrush current limiter for your application with three easy steps.

Ametherm MS35 3R030 Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Ametherm MS35 3R030 MegaSurge™ inrush current limiting thermistor datasheet

Ametherm MS35 3R030
